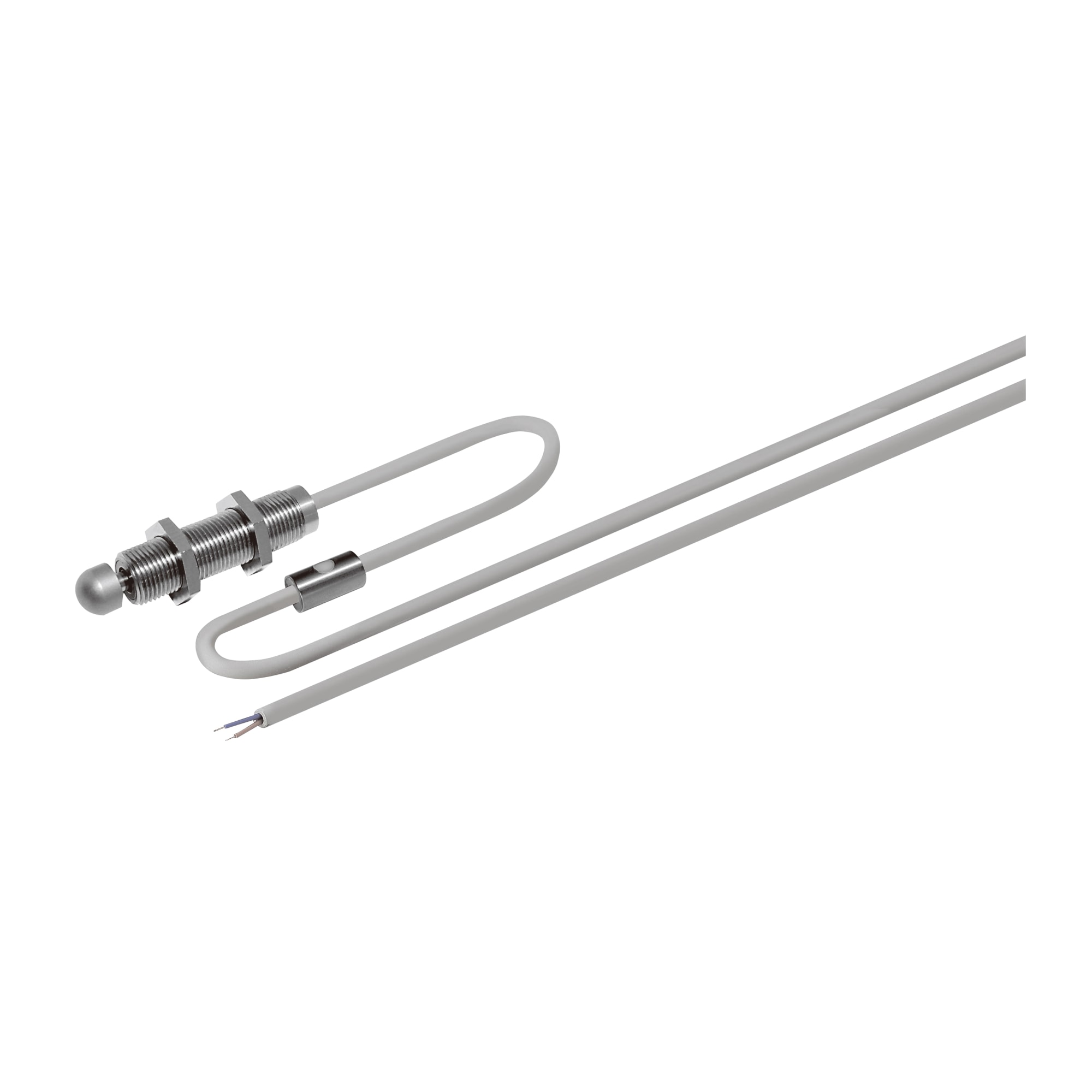

Contact Switches / Wide Contact Angle Type
Mouse over image to enlarge

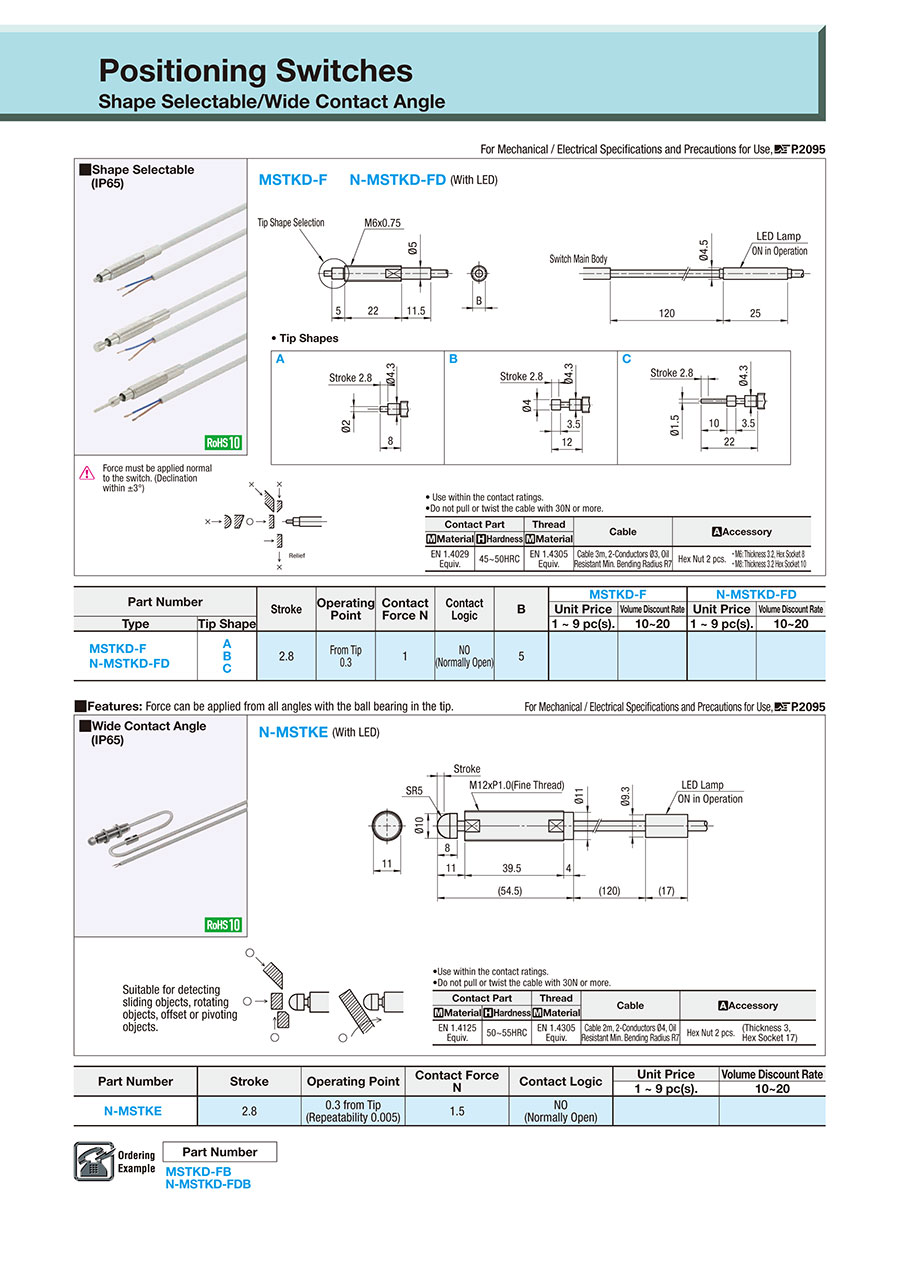

Outline drawing and specifications table
N－MSTKE (With LED)
[ ! ] Use under 24 V DC/10 mA or less.
[ ! ] Use within the contact ratings.
[ ! ] Do not pull or twist the cable with 30 N or more.
[ ! ] Use under 24 V DC/10 mA or less.
[ ! ] Use within the contact ratings.
[ ! ] Do not pull or twist the cable with 30 N or more.
| Contact Part | Thread | Cable | Accessory | |
| Material | Hardness | Material | ||
| EN 1.4125 Equiv. | 50 to 55HRC | EN 1.4305 Equiv. | Cable 2 m, 2-Conductors ø4, Oil Resistant Min. Bending Radius R7 | Hex Nut 2 pcs. (Thickness 3, Hex Socket 17) |
Specification Table
| Part Number |
| MSTKD−FB N−MSTKD−FDB |
| Part Number | Stroke | Operating Point | Contact Force N | Contact Logic |
| N−MSTKE | 2.8 | 0.3 from Tip (Repeatability 0.005) | 1.5 | NO (Normally Open) |
More Information
Basic information
Ball bearings allow contact from all directions.
Outline and specifications
Specifications/Overview
* Suitable for detecting sliding objects, rotating objects, offset or pivoting objects.
