      Slot Pins for Inspection Jigs / Tappeded Ends Type

      Slot Pins for Inspection Jigs / Tappeded Ends Type

      Mouse over image to enlarge

      Part number:

      Still undefined. 10 possible part numbers found.
      Quantity:

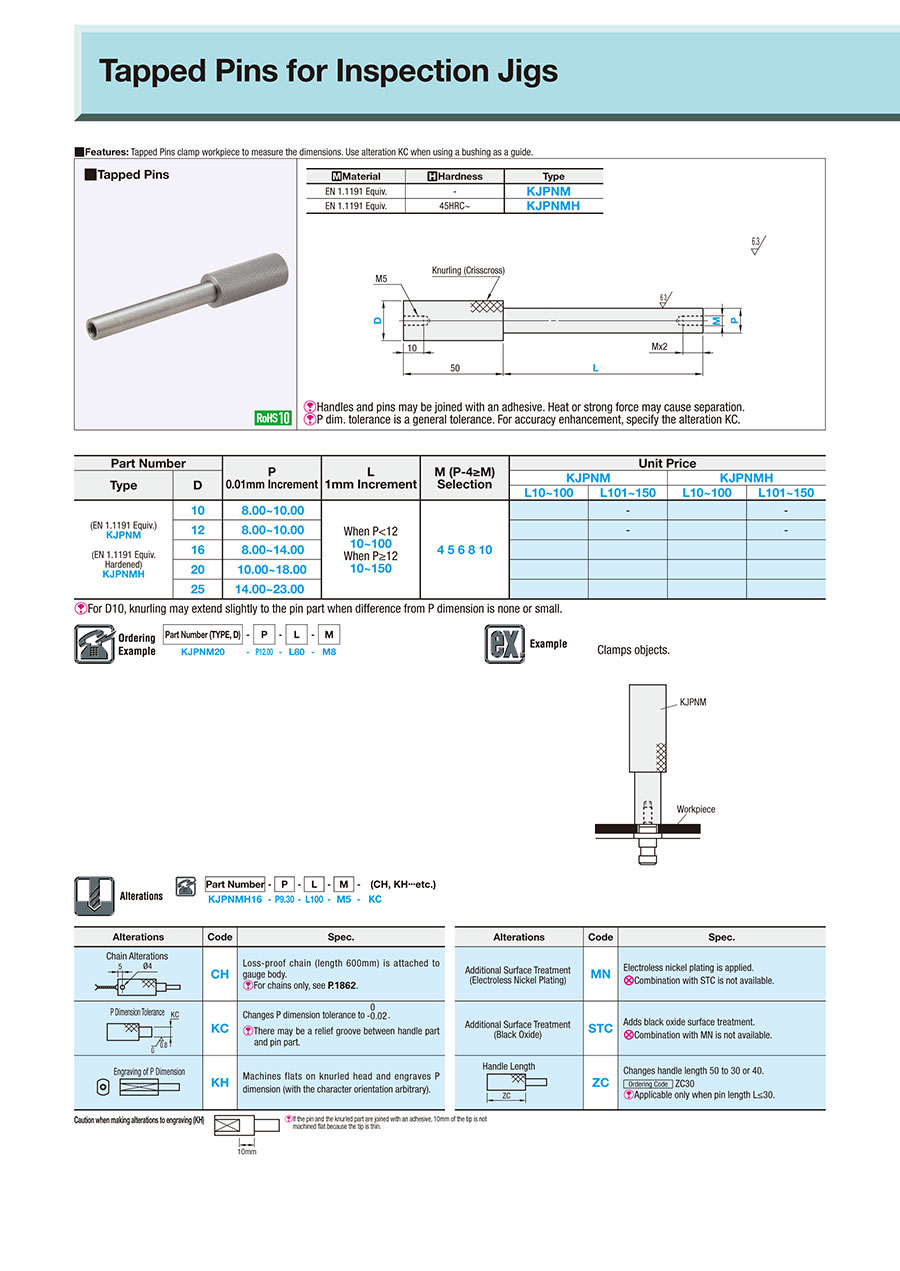

      Outline drawing and specifications table

      Tapped Pins for Inspection Jigs: Related Image
      [!] Handles and pins may be joined with an adhesive. Note that heat or strong force may cause separation.
      [!] P dim. tolerance is a general tolerance. For accuracy enhancement, specify the alteration KC.

      [ ! ] The hardening conditions for this product are as follows.
      ·If D ≤ 10, the handle is unhardened.
      ·If 10 < D and 41 ≤ L, the handle is unhardened.

      [ ! ] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m. However, tapped depth is excluded.
      [M] Material[H] HardnessTYPE
      EN 1.1191 Equiv.—KJPNM
      EN 1.1191 Equiv.45HRC or moreKJPNMH

      Specification Table

      Part Number (TYPE·D)—P—L—M
      KJPNM20—P12.00—L80—M8
      Part NumberP
      0.01 mm Increments      		L
      1 mm Increments      		M (Coarse)
      P-4 ≥ M
      Selection
      TYPED
      (EN 1.1191 Equiv.)
      KJPNM

      (EN 1.1191 Equiv. (hardened))
      KJPNMH       		108.00 to 10.00When P < 12
      10 to 100
      When P ≥ 12
      10 to 150      		4 5 6 8 10
      128.00 to 10.00
      168.00 to 14.00
      2010.00 to 18.00
      2514.00 to 23.00
      [ ! ] For D10, knurling may extend slightly to the pin part when difference from P dimension is none or small.

      Alterations

      Part Number—P—L—M—(CH·KH ... etc.)
      KJPNMH16—P9.30—L100—M5—KC
      AlterationsCodeSpec.

      Chain

      Tapped Pins for Inspection Jigs: Related Image      		CHLoss-proof chain (length 600 mm) is attached to gauge body.

      P Dimension Tolerance

      Tapped Pins for Inspection Jigs: Related Image      		KCChanges P dimension tolerance to 0 -0.02.

      [ ! ] There may be a relief groove between handle part and pin part.

      Engraving of P Dimension

      Tapped Pins for Inspection Jigs: Related Image      		KHMachines flats on knurled head and engraves P dimension (with the character orientation arbitrary).
      AlterationsCodeSpec.
      Additional Surface Treatment
      (Electroless Nickel Plating)      		MNElectroless nickel plating is applied.
      [ NG ] Combination with STC is not available.  
      Additional Surface Treatment
      (Black Oxide)      		STCAdds black oxide surface treatment.
      [ NG ]Combination with MN is not available.

      Handle Length

      Tapped Pins for Inspection Jigs: Related Image      		ZCChanges handle length 50 to 30 or 40.
      Ordering Code ZC30
      [ ! ] Applicable only when pin length L ≤ 30.

      Caution when making alterations to engraving (KH)

      Tapped Pins for Inspection Jigs: Related Image

      [ ! ]If the pin and the knurled part are joined with an adhesive,
      10 mm of the tip is not machined flat because the tip is thin.

      Part number list

      Number of items
    • 1
      • Part number
      KJPNM10-P[8-10/0.01]-L[10-100/1]-M[4,5,6,8,10]
      KJPNM12-P[8-10/0.01]-L[10-100/1]-M[4,5,6,8,10]
      KJPNM16-P[8-14/0.01]-L[10-150/1]-M[4,5,6,8,10]
      KJPNM20-P[10-18/0.01]-L[10-150/1]-M[4,5,6,8,10]
      KJPNM25-P[14-23/0.01]-L[10-150/1]-M[4,5,6,8,10]
      KJPNMH10-P[8-10/0.01]-L[10-100/1]-M[4,5,6,8,10]
      KJPNMH12-P[8-10/0.01]-L[10-100/1]-M[4,5,6,8,10]
      KJPNMH16-P[8-14/0.01]-L[10-150/1]-M[4,5,6,8,10]
      KJPNMH20-P[10-18/0.01]-L[10-150/1]-M[4,5,6,8,10]
      KJPNMH25-P[14-23/0.01]-L[10-150/1]-M[4,5,6,8,10]

      Hardness

      Outer Dia. D

      (Ø)

      L

      (mm)

      P

      (mm)

      Thread Dia. Selection (Coarse) [M]

      (mm)

      		RoHS?Minimum order quantity
      No Hardened
      10
      10 ～ 100
      8 ～ 10
      4 ～ 10
      10
      1 pieces
      No Hardened
      12
      10 ～ 100
      8 ～ 10
      4 ～ 10
      10
      1 pieces
      No Hardened
      16
      10 ～ 150
      8 ～ 14
      4 ～ 10
      10
      1 pieces
      No Hardened
      20
      10 ～ 150
      10 ～ 18
      4 ～ 10
      10
      1 pieces
      No Hardened
      25
      10 ～ 150
      14 ～ 23
      4 ～ 10
      10
      1 pieces
      45HRC ~
      10
      10 ～ 100
      8 ～ 10
      4 ～ 10
      10
      1 pieces
      45HRC ~
      12
      10 ～ 100
      8 ～ 10
      4 ～ 10
      10
      1 pieces
      45HRC ~
      16
      10 ～ 150
      8 ～ 14
      4 ～ 10
      10
      1 pieces
      45HRC ~
      20
      10 ～ 150
      10 ～ 18
      4 ～ 10
      10
      1 pieces
      45HRC ~
      25
      10 ～ 150
      14 ～ 23
      4 ～ 10
      10
      1 pieces
      Unit price (excluding VAT)(Unit price including VAT)
      Standard shipping days
      -
      ( - )
      9 working days
      -
      ( - )
      9 working days
      -
      ( - )
      9 working days
      -
      ( - )
      9 working days
      -
      ( - )
      9 working days
      -
      ( - )
      9 working days
      -
      ( - )
      9 working days
      -
      ( - )
      9 working days
      -
      ( - )
      9 working days
      -
      ( - )
      9 working days
    • 1

      • More Information

      Basic information

      [You can check the dimensions by clamping a product with internal thread.

      Outline and specifications

      App. Example

      Clamps objects.

      Tapped Pins for Inspection Jigs: Related Image
