[Precision] Horizontal Z-Axis / Cross Roller

[Precision] Horizontal Z-Axis / Cross Roller

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

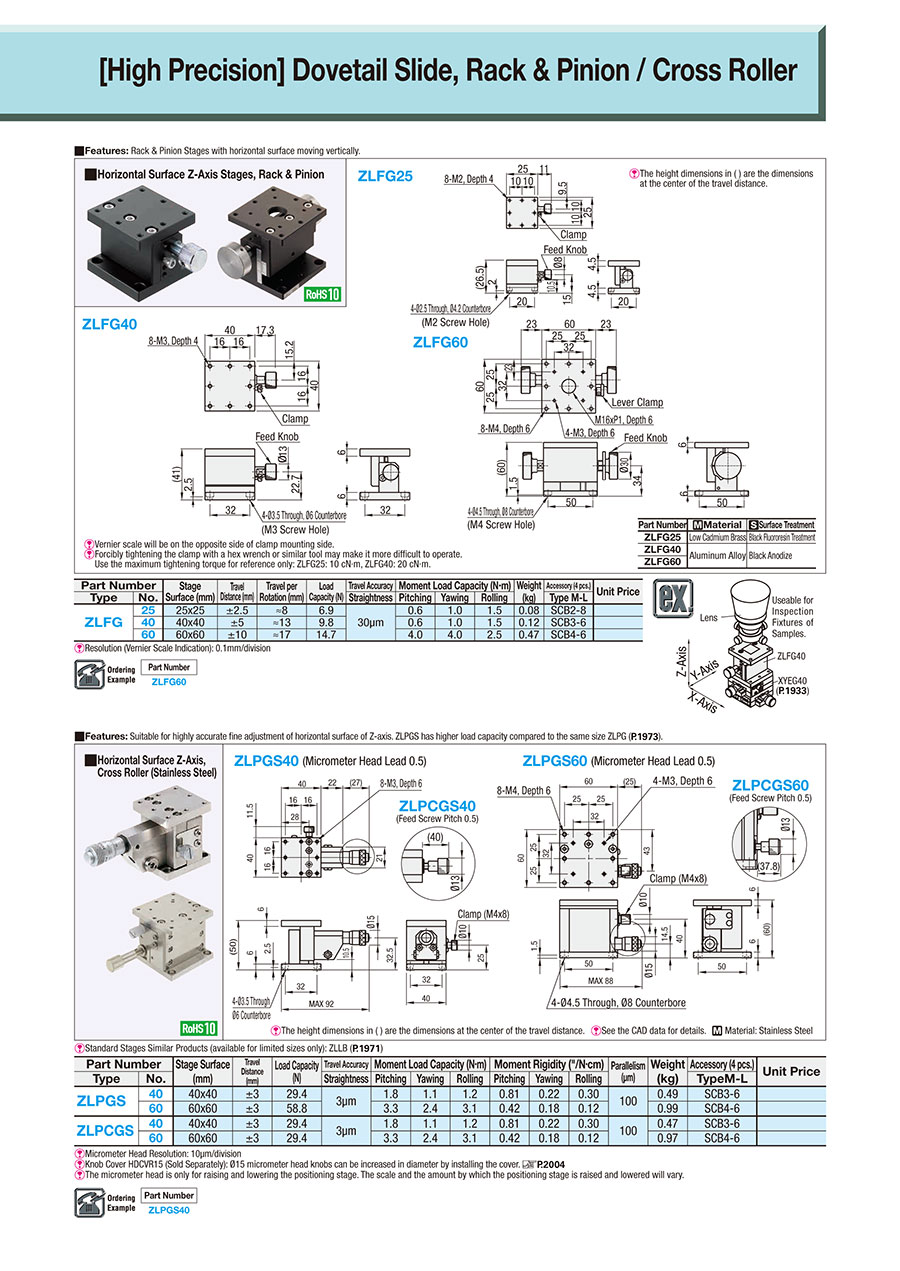

Outline drawing and specifications table

[High Precision]Horizontal Surface Z-Axis - Cross Roller, Stainless Steel
ZLPGS40 (Micrometer Head Lead 0.5)
ZLPGS60 (Micrometer Head Lead 0.5)
ZLPCGS40 (Feed Screw Pitch 0.5)
ZLPCGS60 (Feed Screw Pitch 0.5)
[ ! ]See the CAD data for details.
The height in parentheses ( ) is the center dimension of the travel distance.
Material: Stainless Steel

Specification Table

Part Number
ZLPGS40
Standard stages similar products: ZLLB , some sizes only.
Part NumberStage SurfaceTravel Distance (mm)Load Capacity (N)*Travel AccuracyAllowable Moment Load (N⋅m)Moment Rigidity ("/N⋅cm)Parallelism
(μm)		WeightAccessories (4 pcs.)
TypeNo.(mm)StraightnessPitchingYawingRollingPitchingYawingRolling(kg)Type M−L
ZLPGS4040 × 40±329.4 (88.3)3µm1.81.11.20.810.220.301000.49SCB3−6
6060 × 60±358.8 (147)3.32.43.10.420.180.120.99SCB4−6
ZLPCGS4040 × 40±329.4 (88.3)3µm1.81.11.20.810.220.301000.47SCB3−6
6060 × 60±358.8 (147)3.32.43.10.420.180.120.97SCB4−6
* In the MISUMI catalog, the static load value is provided in () for the referential purpose.
Micrometer Head Resolution: 10 µm/division
Knob Cover HDCVR15 (Sold separately): ø15 micrometer knob diameter can be increased by installing the cover.
The micrometer head is only for raising and lowering the positioning stage. The scale and the amount by which the positioning stage is raised and lowered will vary.

Part number list

Number of items
  • 1
    • Part number
    ZLPCGS40
    ZLPCGS60
    ZLPGS40
    ZLPGS60

    Table Size (Length) L (Range Selectable)

    (mm)

    Table Size (Width) W (Range Selectable)

    (mm)

    Load Capacity (Range Selectable)

    (N)

    Feeding Method

    Table Size (Thickness) H (Range Selectable)

    (mm)

    Table Size (Length) L

    (mm)

    Table Size (Width) W

    (mm)

    Allowable Load

    (N)

    Table Size (Thickness) H

    (mm)

    Moment Rigidity (Pitching)

    ("/N•cm)

    Moment Rigidity (Yawing)

    ("/N•cm)

    Moment Rigidity (Rolling)

    ("/N•cm)

    Feeding Method (Micrometer Type)

    Feeding Method (Feed Screw Type)

    		RoHS?Minimum order quantity
    26 to 40
    26 to 40
    5 to 30
    Feed Screw
    40.1 to 50
    40
    40
    29.4
    50
    0.81
    0.22
    0.3
    -
    Knob Operation
    10
    1 pieces
    41 to 60
    41 to 60
    5 to 30
    Feed Screw
    50.1 to 60
    60
    60
    29.4
    60
    0.42
    0.18
    0.12
    -
    Knob Operation
    10
    1 pieces
    26 to 40
    26 to 40
    5 to 30
    -
    40.1 to 50
    40
    40
    29.4
    50
    0.81
    0.22
    0.3
    Standard
    -
    10
    1 pieces
    41 to 60
    41 to 60
    50.1 to 100
    -
    50.1 to 60
    60
    60
    58.8
    60
    0.42
    0.18
    0.12
    Standard
    -
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    868.55 €
    ( 1,033.57 € )
    9 working days
    946.31 €
    ( 1,126.11 € )
    9 working days
    917.66 €
    ( 1,092.02 € )
    7 working days
    995.43 €
    ( 1,184.56 € )
    7 working days
