Stage Plates

Part number:

Still undefined. 3 possible part numbers found.

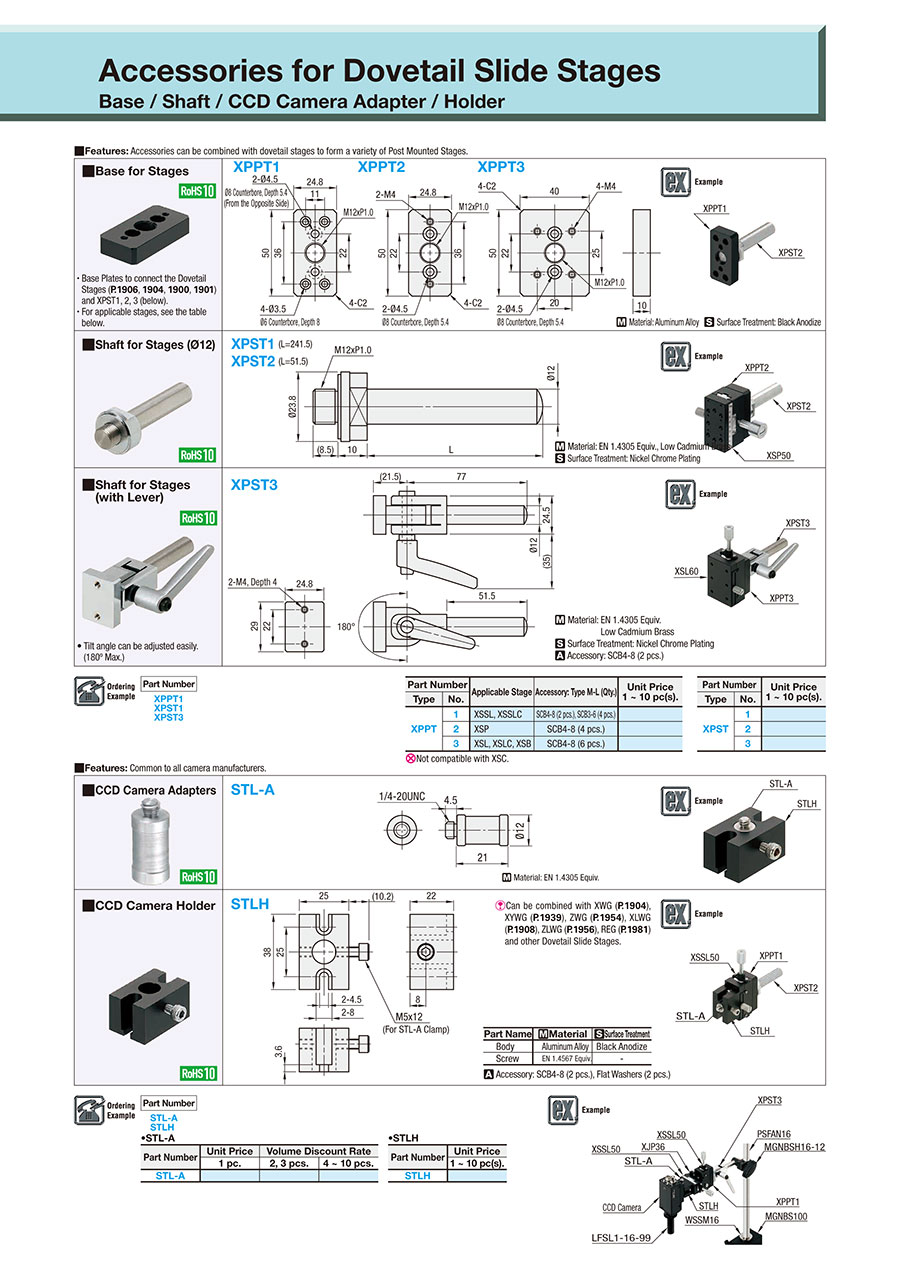

Outline drawing and specifications table

·Dovetail Slide Stage and XPST1, 2, 3
(below) are connected by this base.

·For the applicable stages, see the table below.
　

XPPT1

XPPT2

XPPT3

[M]Material: Aluminum Alloy
[S]Surface Treatment: Black Anodize

Part Number

XPPT1

Part Number		Applicable Stage	Accessories: Type M−L (Quantity)	Weight (kg)
Type	No.	Applicable Stage	Accessories: Type M−L (Quantity)	Weight (kg)
XPPT	1	XSSL·XSSLC	SCB4−8 (2 pcs.), SCB3−6 (4本) (4 pcs.)	0.025
	2	XSP	SCB4−8 (4 pcs.)	0.028
	3	XSL·XSLC·XSB	SCB4−8 (6 pcs.)	0.048

Number of items

Part number

Combination Applicable Stage (Top)	RoHS?	Minimum order quantity

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days
