    Suction Cups / For Thin Objects

    Suction Cups / For Thin Objects

    Caution

    • Please check the content on our website as the PDF does not contain the most up-to-date information.

    Part number:

    Still undefined. 8 possible part numbers found.
    Quantity:

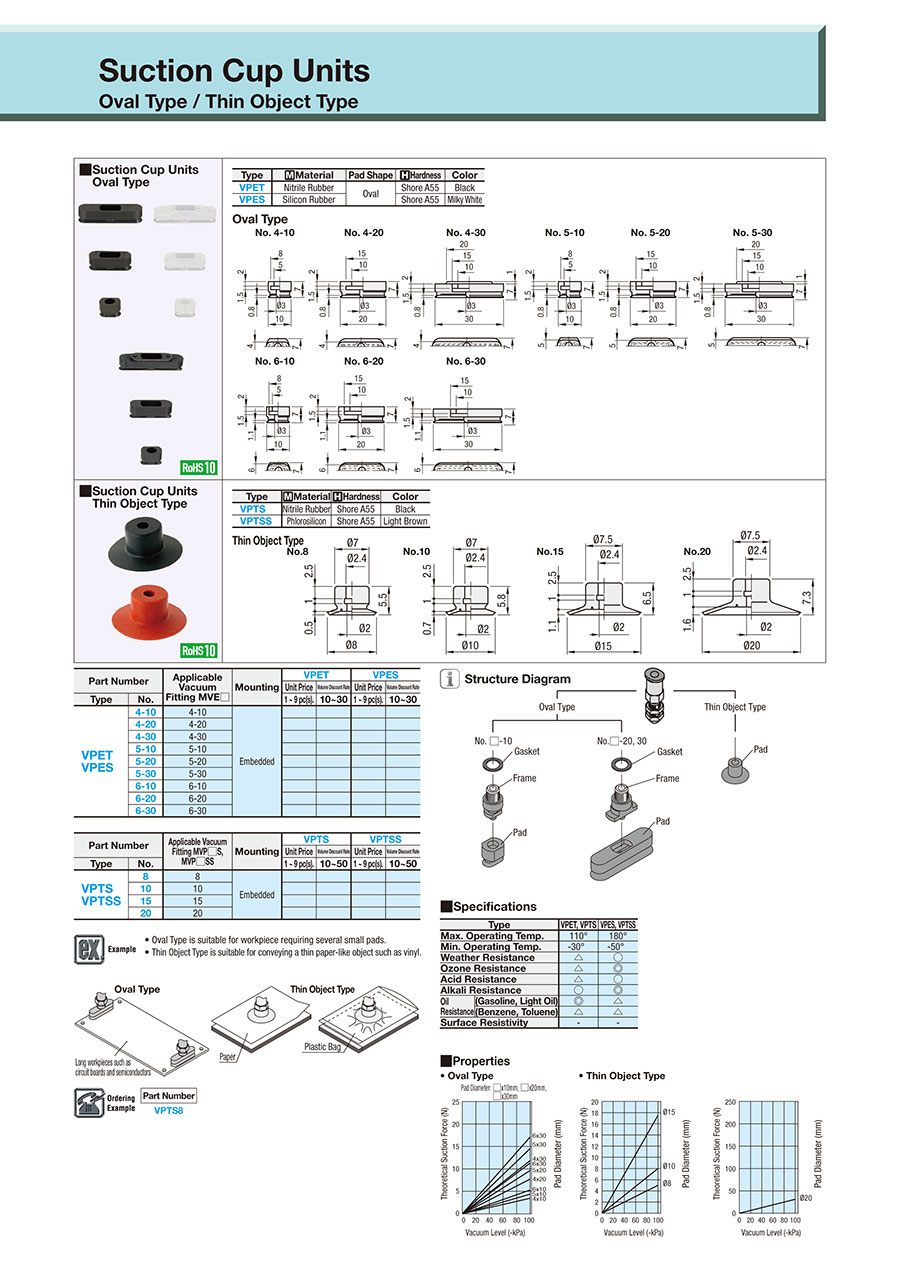

    Outline drawing and specifications table

    Thin Object Type
    No. 8
    No. 10
    No. 15
    No. 20
    Type[M] Material[H] HardnessColor
    VPTSNitrile RubberShore A40 to A45Black
    VPTSSPhlorosiliconShore A40Light Brown

    Specification Table

    Part Number
    VPTS8
    Part NumberApplicable Vacuum Fittings
    MVP□S·MVP□SS    		Mounting
    TypeNo.
    VPTS
    VPTSS    		88Embedded
    1010
    1515
    2020

    ■ Specifications
    TypeVPET·VPTSVPES·VPTSS
    Max. Operating Temp.110°180°
    Min. Operating Temp.－30°－50°
    Weather Resistance△○
    Ozone Resistance△◎
    Acid Resistance△○
    Alkali Resistance○◎
    Oil Resistance(Gasoline / Light Oil)◎△
    (Benzene, toluene)△△
    Surface Resistivity——

    Part number list

    Number of items
  • 1
    • Part number
    VPTS8
    VPTS10
    VPTS15
    VPTS20
    VPTSS8
    VPTSS10
    VPTSS15
    VPTSS20

    Rubber Group Material

    Usage Environment

    Color

    Heat Resistance Temperature, Max. Operating Temperature, Min. Operating Temperature

    (°C)

    O.D. (d)

    (Ø)

    		RoHS?Minimum order quantity
    [Nitrile Rubber] Nitrile Rubber
    Standard / Oil Resistance
    Black
    -30～110
    8
    10
    1 pieces
    [Nitrile Rubber] Nitrile Rubber
    Standard / Oil Resistance
    Black
    -30～110
    10
    10
    1 pieces
    [Nitrile Rubber] Nitrile Rubber
    Standard / Oil Resistance
    Black
    -30～110
    15
    10
    1 pieces
    [Nitrile Rubber] Nitrile Rubber
    Standard / Oil Resistance
    Black
    -30～110
    20
    10
    1 pieces
    Fluoro-silicone Rubber
    Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Chemical Resistance / Weather Resistance
    Light Brown
    -50～180
    8
    10
    1 pieces
    Fluoro-silicone Rubber
    Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Chemical Resistance / Weather Resistance
    Light Brown
    -50～180
    10
    10
    1 pieces
    Fluoro-silicone Rubber
    Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Chemical Resistance / Weather Resistance
    Light Brown
    -50～180
    15
    10
    1 pieces
    Fluoro-silicone Rubber
    Standard / Oil Resistance / Low Temp. Resistance / Heat Resistance / Chemical Resistance / Weather Resistance
    Light Brown
    -50～180
    20
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    3.23 €
    ( 3.84 € )
    5 working days
    3.02 €
    ( 3.59 € )
    5 working days
    3.53 €1.84 €
    ( 2.19 € )
    Stock item: 1 working dayAvailable for same-day shipping
    3.53 €
    ( 4.20 € )
    5 working days
    10.96 €
    ( 13.04 € )
    5 working days
    10.96 €
    ( 13.04 € )
    Stock item: 1 working dayAvailable for same-day shipping
    12.84 €
    ( 15.28 € )
    5 working days
    12.84 €
    ( 15.28 € )
    5 working days
  • 1

    • More Information

    Basic information

    [Features] A suction pad for thin objects. [Material] Rubber.

    Caution

    • Please check the content on our website as the PDF does not contain the most up-to-date information.

    Outline and specifications

    Specifications / Overview

    Structure Diagram
    Suction Cups - Oval Type: Related Image
    ■Properties
    ● Oval Type ●Thin Object Type

    Example

    Oval TypeThin Object Type
    Suction Cups - Oval Type: Related Image
    ● Oval Type is suitable for workpiece requiring several small pads.
    ● Thin Object Type is suitable for conveying a thin paper-like object such as vinyl
