Screw-In Caster Light Duty CNGN□
Click on this image to zoom in.
Click on this image to zoom in.
- Promotional pricing ends 30/11/2024
- Volume Discount
- Stock
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information

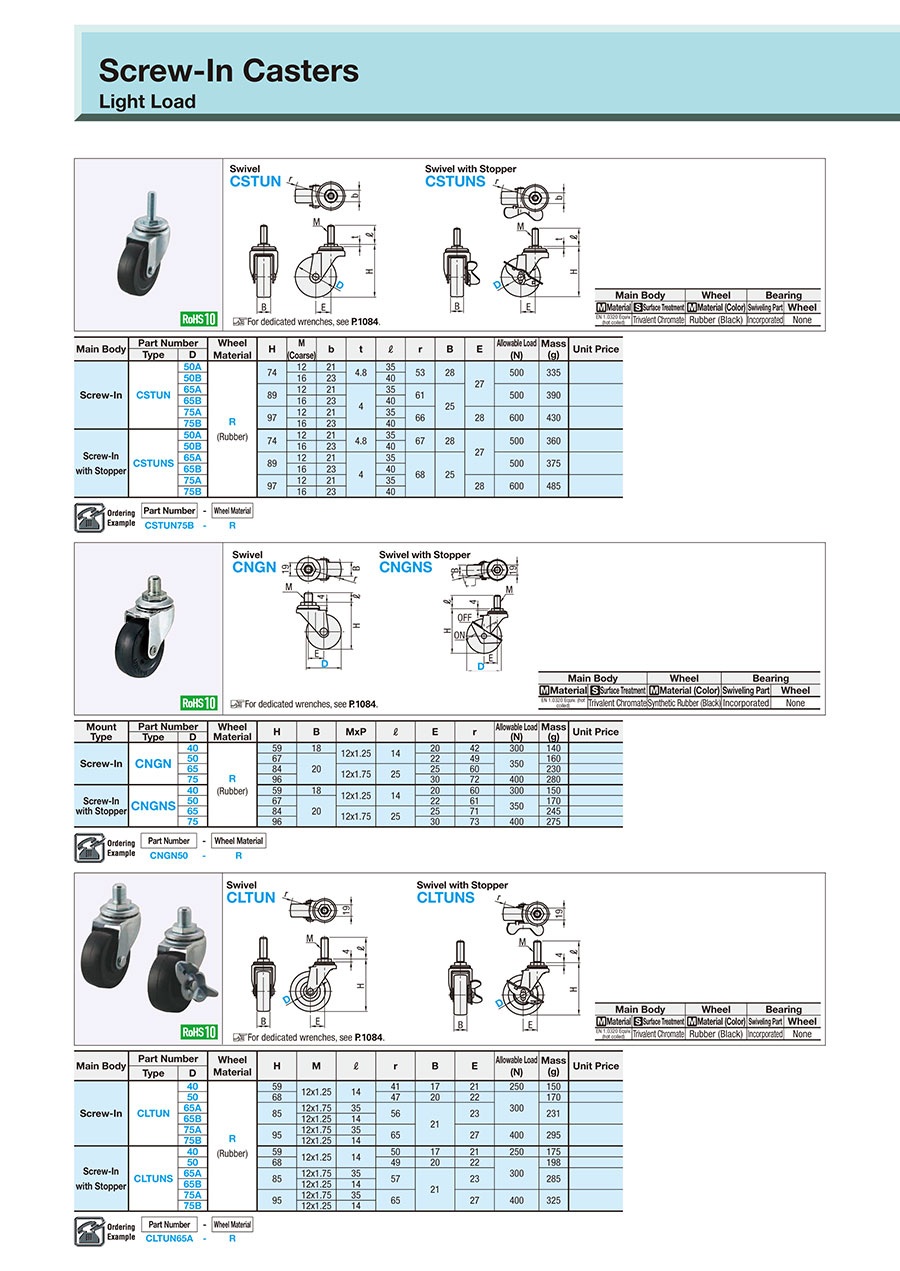

- Catalog
| Main Body | Wheel | Bearing | ||
| Material | Surface Treatment | Material (Color) | Swiveling Part | Wheel |
| EN 1.0320 Equiv. (hot coiled) | Trivalent Chromate | Synthetic Rubber (Black) | Incorporated | None |
Specifications
| Part Number | - | Wheel Material |
| CNGN50 | - | R |
| Mount Type | Part Number | Wheel Material | H | B | MxP | ℓ | E | r | Allowable Load (N) | Mass (g) | Unit Price | |
| Type | D | |||||||||||
| Screw-In | CNGN | 40 | R (Rubber) | 59 | 18 | 12x1.25 | 14 | 20 | 42 | 300 | 140 | |
| 50 | 67 | 20 | 22 | 49 | 350 | 160 | ||||||
| 65 | 84 | 12x1.75 | 25 | 25 | 60 | 230 | ||||||
| 75 | 96 | 30 | 72 | 400 | 280 | |||||||
| Screw-In with Stopper | CNGNS | 40 | 59 | 18 | 12x1.25 | 14 | 20 | 60 | 300 | 150 | ||
| 50 | 67 | 20 | 22 | 61 | 350 | 170 | ||||||
| 65 | 84 | 12x1.75 | 25 | 25 | 71 | 245 | ||||||
| 75 | 96 | 30 | 73 | 400 | 275 | |||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| CNGN40-R |
| CNGN50-R |
| CNGN65-R |
| CNGN75-R |
| CNGNS40-R |
| CNGNS50-R |
| CNGNS65-R |
| CNGNS75-R |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | [H] Mounting Height (mm) | Load Range (daN) | Stopper | Allowable Load (daN) | [D] Wheel Diameter (mm) | Wheel Width B (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
1.75 € | 1 | Available | 5 Days | 10 | 59 | Up to 35.00 | Not Provided | 30 | 40 | 18 | |
2.01 € | 1 | Available | 5 Days | 10 | 67 | Up to 35.00 | Not Provided | 35 | 50 | 20 | |
4.67 € | 1 | Available | 5 Days | 10 | 84 | Up to 35.00 | Not Provided | 35 | 65 | 20 | |
5.17 € | 1 | Available |
Same day
Stock | 10 | 96 | 35.01 to 80.00 | Not Provided | 40 | 75 | 20 | |
2.38 € 1.76 € | 1 | Available |
Same day
Stock | 10 | 59 | Up to 35.00 | With Rotation Stopper | 30 | 40 | 18 | |
2.64 € | 1 | Available | 5 Days | 10 | 67 | Up to 35.00 | With Rotation Stopper | 35 | 50 | 20 | |
5.92 € | 1 | Available | 5 Days | 10 | 84 | Up to 35.00 | With Rotation Stopper | 35 | 65 | 20 | |
6.17 € | 1 | Available | 5 Days | 10 | 96 | 35.01 to 80.00 | With Rotation Stopper | 40 | 75 | 20 |
Loading...
More Information
Basic information
| Caster Type | Screw-In Type | Wheel Material | Synthetic Rubber (General) | Wheel Characteristics | Not Provided |
|---|---|---|---|---|---|
| Fitting Material | Steel | Thread Dia. M | M12 | Load Category | Light Load |
| Bearing in Wheel | Not Provided |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
[H] Mounting Height(mm)
-
Load Range(daN)
- Up to 35.00
- 35.01 to 80.00
-
Stopper
- Not Provided
- With Rotation Stopper
-
Allowable Load(daN)
-
[D] Wheel Diameter(mm)
-
Wheel Width B(mm)
-
Type
- CNGN
- CNGNS
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
