Castors / Very Heavy Load / Swivel Type

Mouse over image to enlarge

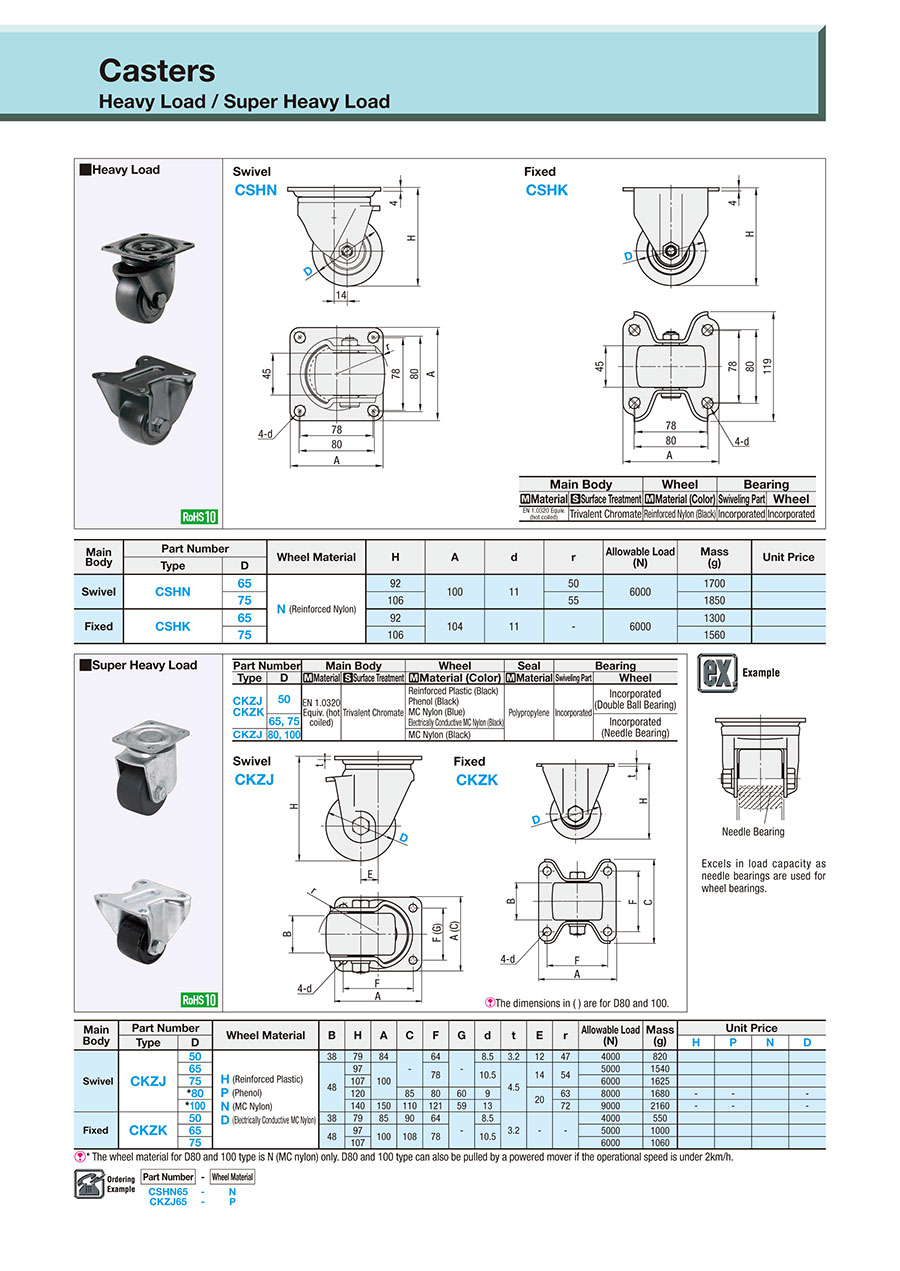

CatalogP.2-1080

Part number:

Still undefined. 25 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Casters/Very Heavy Load/Swivel Type:Related Image

Part Number		Main Body		Wheel	Seal	Bearing
Type	D	Material	Surface Treatment	Material (Color)	Material	Swiveling Part	Wheel
CKZJ CKZK	50	EN 1.0320 Equiv. (hot coiled)	Trivalent Chromate	Reinforced Plastic (Black) Phenol (Black) MC Nylon (Blue) Electrically Conductive MC Nylon (Black)	Polypropylene	Incorporated	Incorporated (Double Ball Bearing)
	65, 75						Incorporated (Needle Bearing)
CKZJ	80, 100			MC Nylon (Black)

Specifications

Part Number	-	Wheel Material
CSHN65 CKZJ65	- -	N P

Main Body	Part Number		Wheel Material	B	H	A	C	F	G	d	t	E	r	Allowable Load (N)	Mass (g)	Unit Price
	Type	D														H	P	N	D
Swivel	CKZJ	50	H (Reinforced Plastic) P (Phenol) N (MC Nylon) D (Electrically Conductive MC Nylon)	38	79	84	-	64	-	8.5	3.2	12	47	4000	820
		65		48	97	100		78		10.5	4.5	14	54	5000	1540
		75			107									6000	1625
		*80			120		85	80	60	9		20	63	8000	1680	-	-		-
		*100			140	150	110	121	59	13			72	9000	2160	-	-		-
Fixed	CKZK	50		38	79	85	90	64	-	8.5	3.2	-	-	4000	550
		65		48	97	100	108	78		10.5				5000	1000
		75			107									6000	1060

* The wheel material for D80 and 100 type is N (MC nylon) only. D80 and 100 type can also be pulled by a powered mover if the operational speed is under 2km/h.

Part number list

Number of items

Part number

Caster Type

[H] Mounting Height

(mm)

Load Range

(daN)

Allowable Load

(daN)

Wheel Material

Wheel Characteristics

Mounting Hole Pitch, Longitudinal Direction

(mm)

Mounting Hole Pitch, Transverse Direction

(mm)

Plate Length

(mm)

Plate Width

(mm)

[D] Wheel Diameter

(mm)

Wheel Width B

(mm)

RoHS?

Minimum order quantity

Plate Type Swivel	79	320.01 to 485.00	400	[Nylon] Electrically Conductive MC Nylon	Antistatic	64	64	84	84	50	38	10	1 pieces
Plate Type Swivel	79	320.01 to 485.00	400	[Engineering Plastics] Reinforced Plastic	Not Provided	64	64	84	84	50	38	10	1 pieces
Plate Type Swivel	79	320.01 to 485.00	400	[Nylon] MC Nylon	Not Provided	64	64	84	84	50	38	10	1 pieces
Plate Type Swivel	79	320.01 to 485.00	400	[Phenol] Phenol	Not Provided	64	64	84	84	50	38	10	1 pieces
Plate Type Swivel	97	485.01 to 750.00	500	[Nylon] Electrically Conductive MC Nylon	Antistatic	78	78	100	100	65	48	10	1 pieces
Plate Type Swivel	97	485.01 to 750.00	500	[Engineering Plastics] Reinforced Plastic	Not Provided	78	78	100	100	65	48	10	1 pieces
Plate Type Swivel	97	485.01 to 750.00	500	[Nylon] MC Nylon	Not Provided	78	78	100	100	65	48	10	1 pieces
Plate Type Swivel	97	485.01 to 750.00	500	[Phenol] Phenol	Not Provided	78	78	100	100	65	48	10	1 pieces
Plate Type Swivel	107	485.01 to 750.00	600	[Nylon] Electrically Conductive MC Nylon	Antistatic	78	78	100	100	75	48	10	1 pieces
Plate Type Swivel	107	485.01 to 750.00	600	[Engineering Plastics] Reinforced Plastic	Not Provided	78	78	100	100	75	48	10	1 pieces
Plate Type Swivel	107	485.01 to 750.00	600	[Nylon] MC Nylon	Not Provided	78	78	100	100	75	48	10	1 pieces
Plate Type Swivel	107	485.01 to 750.00	600	[Phenol] Phenol	Not Provided	78	78	100	100	75	48	10	1 pieces
Plate Type Swivel	120	750.01 or More	800	[Nylon] MC Nylon	Not Provided	80	60	100	85	80	48	10	1 pieces
Plate Type Swivel	140	750.01 or More	900	[Nylon] MC Nylon	Not Provided	121	59	150	110	100	48	10	1 pieces
Plate Type Fixed	79	320.01 to 485.00	400	[Nylon] Electrically Conductive MC Nylon	Antistatic	64	64	85	90	50	38	10	1 pieces
Plate Type Fixed	79	320.01 to 485.00	400	[Engineering Plastics] Reinforced Plastic	Not Provided	64	64	85	90	50	38	10	1 pieces
Plate Type Fixed	79	320.01 to 485.00	400	[Nylon] MC Nylon	Not Provided	64	64	85	90	50	38	10	1 pieces
Plate Type Fixed	79	320.01 to 485.00	400	[Phenol] Phenol	Not Provided	64	64	85	90	50	38	10	1 pieces
Plate Type Fixed	97	485.01 to 750.00	500	[Nylon] Electrically Conductive MC Nylon	Antistatic	78	78	100	108	65	48	10	1 pieces
Plate Type Fixed	97	485.01 to 750.00	500	[Engineering Plastics] Reinforced Plastic	Not Provided	78	78	100	108	65	48	10	1 pieces
Plate Type Fixed	97	485.01 to 750.00	500	[Nylon] MC Nylon	Not Provided	78	78	100	108	65	48	10	1 pieces
Plate Type Fixed	97	485.01 to 750.00	500	[Phenol] Phenol	Not Provided	78	78	100	108	65	48	10	1 pieces
Plate Type Fixed	107	485.01 to 750.00	600	[Engineering Plastics] Reinforced Plastic	Not Provided	78	78	100	108	75	48	10	1 pieces
Plate Type Fixed	107	485.01 to 750.00	600	[Nylon] MC Nylon	Not Provided	78	78	100	108	75	48	10	1 pieces
Plate Type Fixed	107	485.01 to 750.00	600	[Phenol] Phenol	Not Provided	78	78	100	108	75	48	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

78.58 €38.50 € ( 45.81 € )	Stock item: 1 working dayAvailable for same-day shipping
28.96 € ( 34.46 € )	Stock item: 1 working dayAvailable for same-day shipping
43.70 € ( 52.00 € )	5 working days
40.66 € ( 48.39 € )	5 working days
105.29 € ( 125.30 € )	5 working days
41.57 € ( 49.47 € )	Stock item: 1 working dayAvailable for same-day shipping
66.50 € ( 79.14 € )	5 working days
62.46 € ( 74.33 € )	5 working days
125.19 € ( 148.98 € )	5 working days
44.20 € ( 52.60 € )	Stock item: 1 working dayAvailable for same-day shipping
82.87 € ( 98.62 € )	5 working days
78.58 € ( 93.51 € )	5 working days
94.20 € ( 112.10 € )	Stock item: 1 working dayAvailable for same-day shipping
110.32 € ( 131.28 € )	5 working days
53.53 €25.16 € ( 29.94 € )	Stock item: 1 working dayAvailable for same-day shipping
24.18 € ( 28.77 € )	Stock item: 1 working dayAvailable for same-day shipping
35.01 € ( 41.66 € )	5 working days
26.19 €12.31 € ( 14.65 € )	Stock item: 1 working dayAvailable for same-day shipping
94.96 €46.53 € ( 55.37 € )	Stock item: 1 working dayAvailable for same-day shipping
31.74 € ( 37.77 € )	5 working days
46.35 € ( 55.16 € )	5 working days
38.79 € ( 46.16 € )	5 working days
33.00 €18.81 € ( 22.38 € )	Stock item: 1 working dayAvailable for same-day shipping
49.49 € ( 58.89 € )	5 working days
40.05 € ( 47.66 € )	5 working days

Basic information

[Features] An extremely heavy duty pulley that can also be pulled with electricity.

Outline and specifications

Example of Use

Catalog

Products homepage

Catalog (2-page spread)
