Castors / Conductive / Screw-in Type

CatalogP.2-1082

Part number:

Still undefined. 28 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Swivel
CRMNU
CSMSNU (Stainless Steel)

Swivel with Stopper
CRMNSU
CSMSNSU (Stainless Steel)

Screw-In Casters - Electrically Conductive Type: Related Image

Type	Main Body		Wheel	Bearing
	[M] Material	[S] Surface Treatment	[M]Material (Color)	Swiveling Part	Wheel
CRMNU·CRMNSU	EN 1.0320 Equiv. (hot coiled)	Trivalent Chromate	Electrically Conductive Rubber (Black)	Provided	Not Provided
CSMSNU·CSMSNSU	EN 1.4301 Equiv.	Electrolytic Polishing

Specification Table

Part Number

CSMSNU65B

Main Body	Part Number			B	H	E	r		K		M	b	t		ℓ	Allowable Load (N)	Mass (g)
	Steel Type	Stainless Steel	D				Steel Type	Stainless Steel	Steel Type	Stainless Steel			Steel Type	Stainless Steel
Screw-In Type	CRMNU	CSMSNU	50	20	68	22	47	47	—	—	12	19	4.8	4.5	35	300	200
			65 A	25	89	27	61	61			12	21	4.0	5.1	35	500	390
			65B								16	23			40		420
			75 A		97	28	66	66			12	21			35	600	430
			75B								16	23			40		460
			100 A		126	31	82	82			12	21			35	500	580
			100B								16	23			40		610
With Screw-In Stopper Type	CRMNSU	CSMSNSU	50	20	68	22	49	49	32	31	12	19	4.8	4.5	35	300	220
			65 A	25	89	27	70	66	43	43	12	21	4.0	5.1	35	500	440
			65B								16	23			40		470
			75 A		97	28	71	68			12	21			35	600	480
			75B								16	23			40		510
			100 A		126	31	82	82	44	43	12	21			35	500	650
			100B								16	23			40		680

[ ! ] For Screw-In Type, please use Pipe Insert Wrench and Dedicated Wrench (available at the website).

Part number list

Number of items

Part number

[H] Mounting Height

(mm)

Load Range

(daN)

Stopper

Allowable Load

(daN)

Fitting Material

Thread Dia. M

[D] Wheel Diameter

(mm)

Wheel Width B

(mm)

RoHS?

Minimum order quantity

68	Up to 35.00	With Rotation Stopper	30	Steel	M12	50	20	10	1 pieces
89	35.01 to 80.00	With Rotation Stopper	50	Steel	M12	65	25	10	1 pieces
89	35.01 to 80.00	With Rotation Stopper	50	Steel	M16	65	25	10	1 pieces
97	35.01 to 80.00	With Rotation Stopper	60	Steel	M12	75	25	10	1 pieces
97	35.01 to 80.00	With Rotation Stopper	60	Steel	M16	75	25	10	1 pieces
126	35.01 to 80.00	With Rotation Stopper	50	Steel	M12	100	25	10	1 pieces
126	35.01 to 80.00	With Rotation Stopper	50	Steel	M16	100	25	10	1 pieces
68	Up to 35.00	Not Provided	30	Steel	M12	50	20	10	1 pieces
89	35.01 to 80.00	Not Provided	50	Steel	M12	65	25	10	1 pieces
89	35.01 to 80.00	Not Provided	50	Steel	M16	65	25	10	1 pieces
97	35.01 to 80.00	Not Provided	60	Steel	M12	75	25	10	1 pieces
97	35.01 to 80.00	Not Provided	60	Steel	M16	75	25	10	1 pieces
126	35.01 to 80.00	Not Provided	50	Steel	M12	100	25	10	1 pieces
126	35.01 to 80.00	Not Provided	50	Steel	M16	100	25	10	1 pieces
68	Up to 35.00	With Rotation Stopper	30	Stainless Steel	M12	50	20	10	1 pieces
89	35.01 to 80.00	With Rotation Stopper	50	Stainless Steel	M12	65	25	10	1 pieces
89	35.01 to 80.00	With Rotation Stopper	50	Stainless Steel	M16	65	25	10	1 pieces
97	35.01 to 80.00	With Rotation Stopper	60	Stainless Steel	M12	75	25	10	1 pieces
97	35.01 to 80.00	With Rotation Stopper	60	Stainless Steel	M16	75	25	10	1 pieces
126	35.01 to 80.00	With Rotation Stopper	50	Stainless Steel	M12	100	25	10	1 pieces
126	35.01 to 80.00	With Rotation Stopper	50	Stainless Steel	M16	100	25	10	1 pieces
68	Up to 35.00	Not Provided	30	Stainless Steel	M12	50	20	10	1 pieces
89	35.01 to 80.00	Not Provided	50	Stainless Steel	M12	65	25	10	1 pieces
89	35.01 to 80.00	Not Provided	50	Stainless Steel	M16	65	25	10	1 pieces
97	35.01 to 80.00	Not Provided	60	Stainless Steel	M12	75	25	10	1 pieces
97	35.01 to 80.00	Not Provided	60	Stainless Steel	M16	75	25	10	1 pieces
126	35.01 to 80.00	Not Provided	50	Stainless Steel	M12	100	25	10	1 pieces
126	35.01 to 80.00	Not Provided	50	Stainless Steel	M16	100	25	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

5.65 € ( 6.72 € )	5 working days
10.45 € ( 12.44 € )	5 working days
10.45 € ( 12.44 € )	5 working days
11.71 € ( 13.93 € )	5 working days
11.71 € ( 13.93 € )	5 working days
16.12 € ( 19.18 € )	5 working days
16.12 € ( 19.18 € )	5 working days
4.91 € ( 5.84 € )	5 working days
9.06 € ( 10.78 € )	5 working days
9.06 € ( 10.78 € )	5 working days
10.20 € ( 12.14 € )	5 working days
10.20 € ( 12.14 € )	5 working days
14.36 € ( 17.09 € )	5 working days
14.36 € ( 17.09 € )	5 working days
12.08 € ( 14.38 € )	5 working days
20.92 € ( 24.89 € )	5 working days
20.92 € ( 24.89 € )	5 working days
22.92 € ( 27.27 € )	5 working days
22.92 € ( 27.27 € )	5 working days
34.38 € ( 40.91 € )	5 working days
33.51 € ( 39.88 € )	5 working days
9.95 € ( 11.84 € )	5 working days
18.90 € ( 22.49 € )	5 working days
18.90 € ( 22.49 € )	5 working days
20.27 € ( 24.12 € )	5 working days
20.27 € ( 24.12 € )	5 working days
28.83 € ( 34.31 € )	5 working days
28.83 € ( 34.31 € )	5 working days

More Information

Basic information

Basic information

[Screw-in roller with antistatic wheel.

Catalog

Products homepage

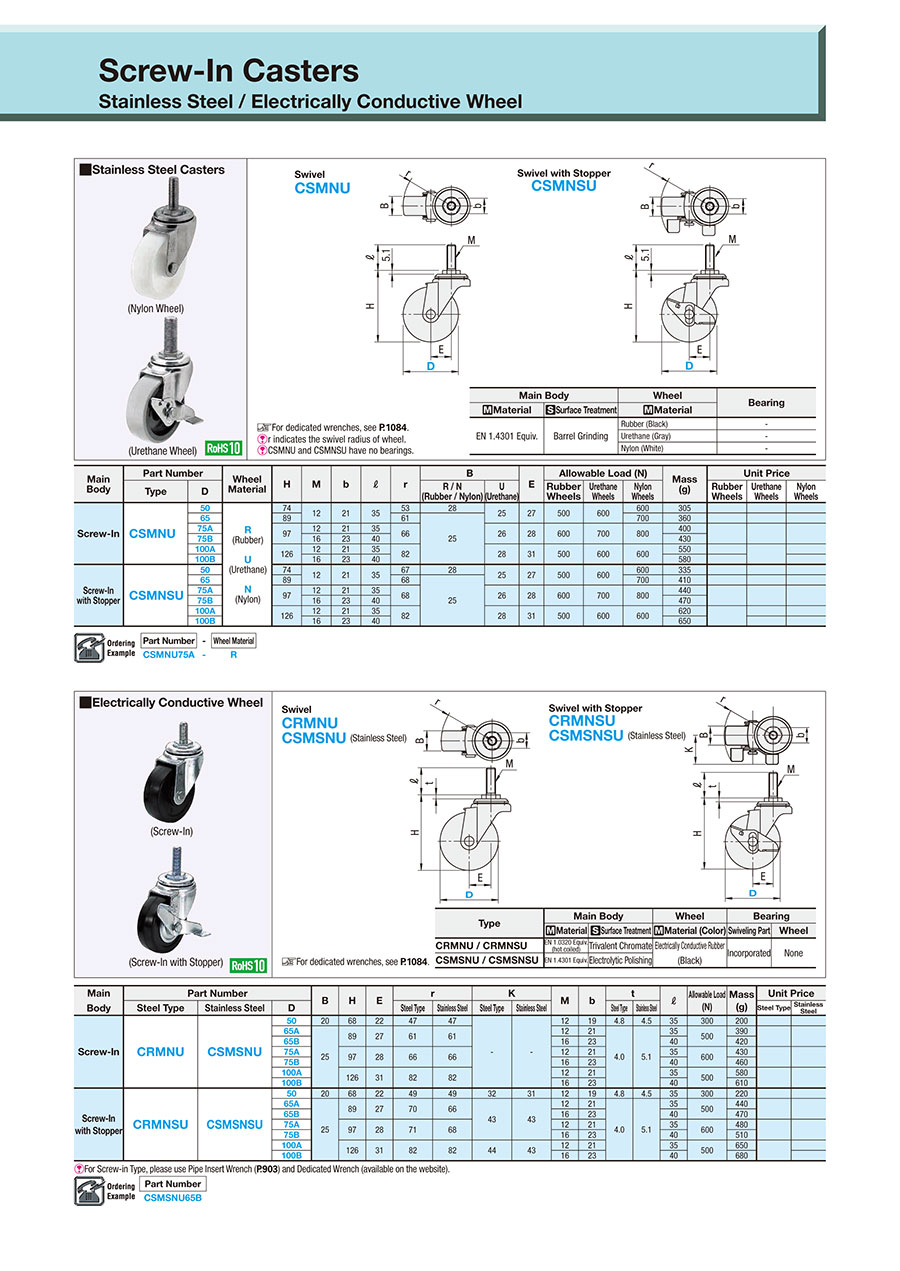

Catalog (2-page spread)
