Large Diameter Knurled Knobs
Click on this image to zoom in.
Click on this image to zoom in.
- Promotional pricing ends 30/11/2024
- Volume Discount
- Order quantities extended (D-JIT)
(i)Remark
- NKRM10-40 has been discontinued. Consider the NKRM10-30 or the NKRM10-50, which have different L dimension lengths from the NKRM10-40, as an alternative.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers

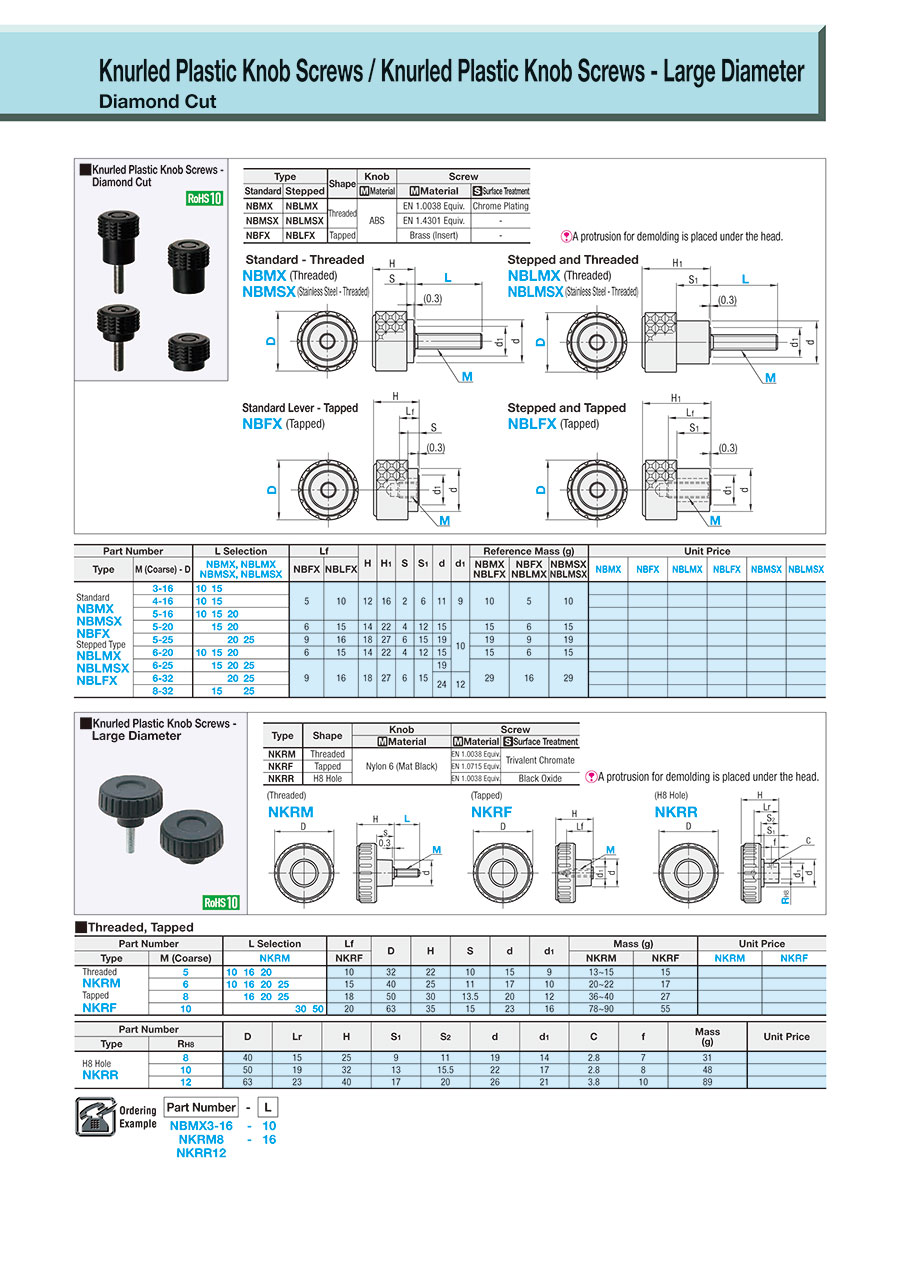

- Catalog
| Type | Shape | Knob | Screw | |
| Material | Material | Surface Treatment | ||
| NKRM | Threaded | Nylon 6 (Mat Black) | EN 1.0038 Equiv. | Trivalent Chromate |
| NKRF | Tapped | EN 1.0715 Equiv. | ||
| NKRR | H8 Hole | EN 1.0038 Equiv. | Black Oxide | |
Specifications
| Part Number | - | L |
| NBMX3-16 | - | 10 |
| NKRM8 | - | 16 |
| NKRR12 |
| Part Number | L Selection | Lf | D | H | S | d | d1 | Mass (g) | Unit Price | ||||||||
| Type | M (Coarse) | NKRM | NKRF | NKRM | NKRF | NKRM | NKRF | ||||||||||
| Threaded NKRM Tapped NKRF | 5 | 10 | 16 | 20 | 10 | 32 | 22 | 10 | 15 | 9 | 13~15 | 15 | |||||
| 6 | 10 | 16 | 20 | 25 | 15 | 40 | 25 | 11 | 17 | 10 | 20~22 | 17 | |||||
| 8 | 16 | 20 | 25 | 18 | 50 | 30 | 13.5 | 20 | 12 | 36~40 | 27 | ||||||
| 10 | 30 | 50 | 20 | 63 | 35 | 15 | 23 | 16 | 78~90 | 55 | |||||||
| Part Number | D | Lr | H | S1 | S2 | d | d1 | C | f | Mass (g) | Unit Price | |
| Type | RH8 | |||||||||||
| H8 Hole NKRR | 8 | 40 | 15 | 25 | 9 | 11 | 19 | 14 | 2.8 | 7 | 31 | |
| 10 | 50 | 19 | 32 | 13 | 15.5 | 22 | 17 | 2.8 | 8 | 48 | ||
| 12 | 63 | 23 | 40 | 17 | 20 | 26 | 21 | 3.8 | 10 | 89 | ||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| NKRF5 |
| NKRF6 |
| NKRF8 |
| NKRF10 |
| NKRM5-10 |
| NKRM5-16 |
| NKRM5-20 |
| NKRM6-10 |
| NKRM6-16 |
| NKRM6-20 |
| NKRM6-25 |
| NKRM8-16 |
| NKRM8-20 |
| NKRM8-25 |
| NKRM10-30 |
| NKRM10-50 |
| NKRR8 |
| NKRR10 |
| NKRR12 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Mounting Section Type | Mounting Section Dia. M | Mounting Section, Length L (mm) | Male Tip Machining | Female Thread, Round hole processing | Set Screw Thread Machining | Mounting Section Material | Mounting Section Surface Treatment | Main Body Dia. (D) (φ) | Main Body Height (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3.90 € | 1 | Available | 5 Days | 10 | Tapped | 5 | - | - | Blind Hole | Not Provided | [Steel] EN 1.0715 Equiv. | [Trivalent Chromate] Trivalent Chromate | 32 | 22 | |
5.28 € | 1 | Available | 5 Days | 10 | Tapped | 6 | - | - | Blind Hole | Not Provided | [Steel] EN 1.0715 Equiv. | [Trivalent Chromate] Trivalent Chromate | 40 | 25 | |
6.55 € | 1 | Available | 5 Days | 10 | Tapped | 8 | - | - | Blind Hole | Not Provided | [Steel] EN 1.0715 Equiv. | [Trivalent Chromate] Trivalent Chromate | 50 | 30 | |
7.94 € | 1 | Available | 5 Days | 10 | Tapped | 10 | - | - | Blind Hole | Not Provided | [Steel] EN 1.0715 Equiv. | [Trivalent Chromate] Trivalent Chromate | 63 | 35 | |
4.41 € | 1 | Available | 5 Days | 10 | Threads | 5 | 10 | Not Provided | - | - | [Steel] EN 1.0038 Equiv. | [Trivalent Chromate] Trivalent Chromate | 32 | 22 | |
4.41 € | 1 | Available | 5 Days | 10 | Threads | 5 | 16 | Not Provided | - | - | [Steel] EN 1.0038 Equiv. | [Trivalent Chromate] Trivalent Chromate | 32 | 22 | |
4.41 € | 1 | Available |
Same day
Stock | 10 | Threads | 5 | 20 | Not Provided | - | - | [Steel] EN 1.0038 Equiv. | [Trivalent Chromate] Trivalent Chromate | 32 | 22 | |
4.91 € | 1 | Available |
Same day
Stock | 10 | Threads | 6 | 10 | Not Provided | - | - | [Steel] EN 1.0038 Equiv. | [Trivalent Chromate] Trivalent Chromate | 40 | 25 | |
4.91 € | 1 | Available | 5 Days | 10 | Threads | 6 | 16 | Not Provided | - | - | [Steel] EN 1.0038 Equiv. | [Trivalent Chromate] Trivalent Chromate | 40 | 25 | |
4.91 € | 1 | Available | 5 Days | 10 | Threads | 6 | 20 | Not Provided | - | - | [Steel] EN 1.0038 Equiv. | [Trivalent Chromate] Trivalent Chromate | 40 | 25 | |
4.91 € | 1 | Available | 5 Days | 10 | Threads | 6 | 25 | Not Provided | - | - | [Steel] EN 1.0038 Equiv. | [Trivalent Chromate] Trivalent Chromate | 40 | 25 | |
6.05 € | 1 | Available | 5 Days | 10 | Threads | 8 | 16 | Not Provided | - | - | [Steel] EN 1.0038 Equiv. | [Trivalent Chromate] Trivalent Chromate | 50 | 30 | |
6.05 € 4.24 € | 1 | Available |
Same day
Stock | 10 | Threads | 8 | 20 | Not Provided | - | - | [Steel] EN 1.0038 Equiv. | [Trivalent Chromate] Trivalent Chromate | 50 | 30 | |
6.05 € | 1 | Available | 5 Days | 10 | Threads | 8 | 25 | Not Provided | - | - | [Steel] EN 1.0038 Equiv. | [Trivalent Chromate] Trivalent Chromate | 50 | 30 | |
8.18 € | 1 | Available | 5 Days | 10 | Threads | 10 | 30 | Not Provided | - | - | [Steel] EN 1.0038 Equiv. | [Trivalent Chromate] Trivalent Chromate | 63 | 35 | |
8.18 € 5.73 € | 1 | Available |
Same day
Stock | 10 | Threads | 10 | 50 | Not Provided | - | - | [Steel] EN 1.0038 Equiv. | [Trivalent Chromate] Trivalent Chromate | 63 | 35 | |
5.17 € | 1 | Available | 5 Days | 10 | Round Hole | 8 | - | - | Blind Hole | Not Provided | [Steel] EN 1.0038 Equiv. | Black Oxide | 40 | 25 | |
5.79 € 4.05 € | 1 | Available |
Same day
Stock | 10 | Round Hole | 10 | - | - | Blind Hole | Not Provided | [Steel] EN 1.0038 Equiv. | Black Oxide | 50 | 32 | |
7.31 € | 1 | Available | 5 Days | 10 | Round Hole | 12 | - | - | Blind Hole | Not Provided | [Steel] EN 1.0038 Equiv. | Black Oxide | 63 | 40 |
Loading...
Basic information
| Main Body Type | Round Shape | Types of round-shaped | Knob | 4-side finish | Knurling |
|---|---|---|---|---|---|
| Additional Function | Not Provided | Main Body Material | Nylon 6 (Mat Black) |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Mounting Section Type
- Threads
- Tapped
- Round Hole
-
Mounting Section Dia. M
-
Mounting Section, Length L(mm)
-
Male Tip Machining
- Not Provided
-
Female Thread, Round hole processing
- Blind Hole
-
Set Screw Thread Machining
- Not Provided
-
Mounting Section Material
- Steel
- Steel
-
Mounting Section Surface Treatment
- Trivalent Chromate
- Black Oxide
- Trivalent Chromate
-
Main Body Dia. (D)(φ)
-
Main Body Height(mm)
-
Type
- NKRF
- NKRM
- NKRR
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
