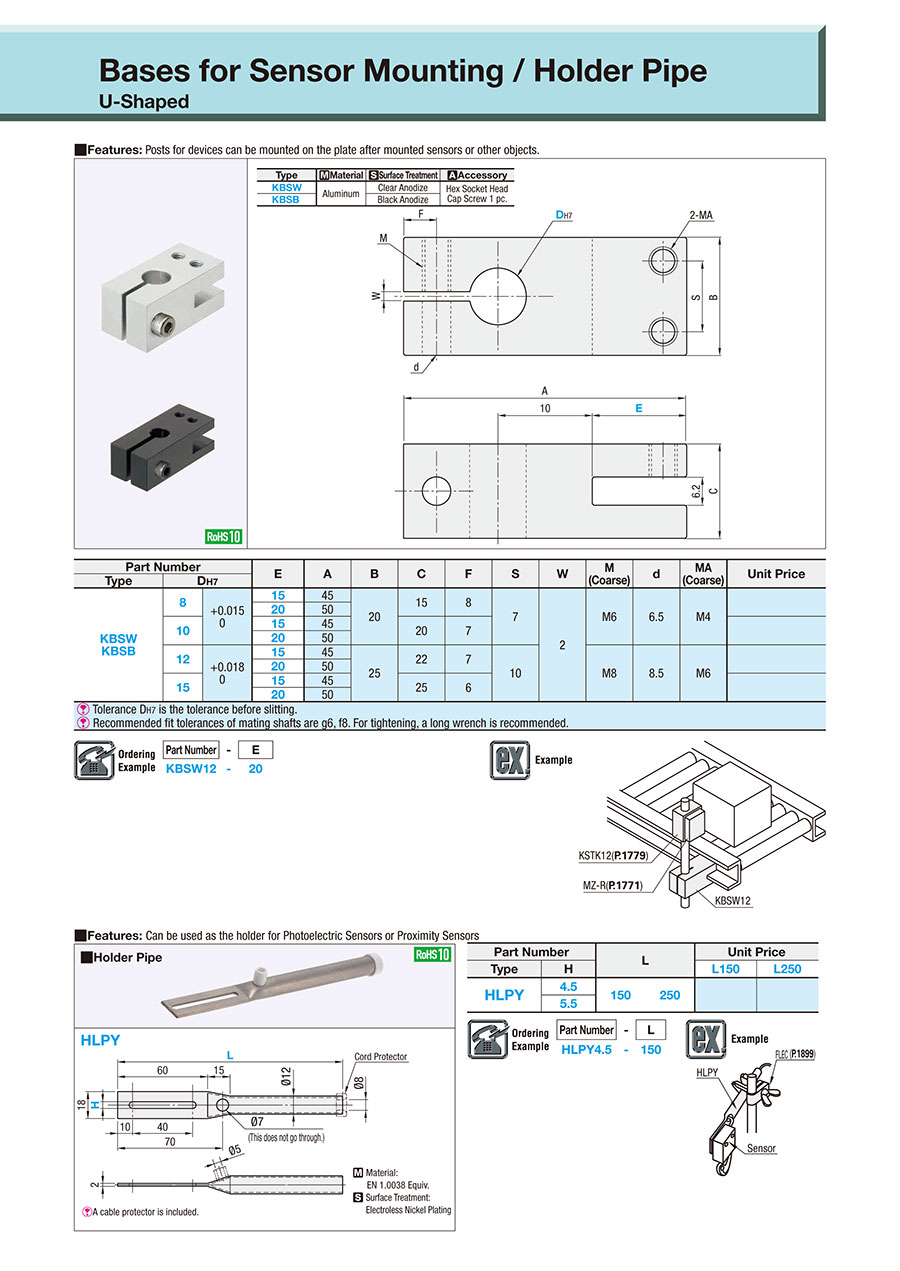

Bases for Sensor Mounting
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
| Type | Material | Surface Treatment | Accessory |
| KBSW | Aluminum | Clear Anodize | Hex Socket Head Cap Screw 1 pc. |
| KBSB | Black Anodize |
Specifications
| Part Number | - | E |
| KBSW12 | - | 20 |
| Part Number | E | A | B | C | F | S | W | M (Coarse) | d | MA (Coarse) | Unit Price | ||
| Type | DH7 | ||||||||||||
| KBSW KBSB | 8 | +0.015 0 | 15 | 45 | 20 | 15 | 8 | 7 | 2 | M6 | 6.5 | M4 | |
| 20 | 50 | ||||||||||||
| 10 | 15 | 45 | 20 | 7 | |||||||||
| 20 | 50 | ||||||||||||
| 12 | +0.018 0 | 15 | 45 | 25 | 22 | 7 | 10 | M8 | 8.5 | M6 | |||
| 20 | 50 | ||||||||||||
| 15 | 15 | 45 | 25 | 6 | |||||||||
| 20 | 50 | ||||||||||||
| Tolerance DH7 is the tolerance before slitting. | |||||||||||||
| Recommended fit tolerances of mating shafts are g6, f8. For tightening, a long wrench is recommended. | |||||||||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| KBSB8-15 |
| KBSB8-20 |
| KBSB10-15 |
| KBSB10-20 |
| KBSB12-15 |
| KBSB12-20 |
| KBSB15-15 |
| KBSB15-20 |
| KBSW8-15 |
| KBSW8-20 |
| KBSW10-15 |
| KBSW10-20 |
| KBSW12-15 |
| KBSW12-20 |
| KBSW15-15 |
| KBSW15-20 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Surface Treatment | Post Hole Dia. D Dimension (φ) | E Dimension (mm) | |
|---|---|---|---|---|---|---|---|---|
21.56 € | 1 | Available | 7 Days | 10 | Black Anodized Aluminum | 8 | 15 | |
21.56 € | 1 | Available | 7 Days | 10 | Black Anodized Aluminum | 8 | 20 | |
22.02 € | 1 | Available | 7 Days | 10 | Black Anodized Aluminum | 10 | 15 | |
22.02 € | 1 | Available | 7 Days | 10 | Black Anodized Aluminum | 10 | 20 | |
23.08 € | 1 | Available | 7 Days | 10 | Black Anodized Aluminum | 12 | 15 | |
23.08 € | 1 | Available | 5 Days | 10 | Black Anodized Aluminum | 12 | 20 | |
27.03 € | 1 | Available | 7 Days | 10 | Black Anodized Aluminum | 15 | 15 | |
27.03 € | 1 | Available | 7 Days | 10 | Black Anodized Aluminum | 15 | 20 | |
21.56 € | 1 | Available | 7 Days | 10 | Clear Anodized Aluminum | 8 | 15 | |
21.56 € | 1 | Available | 7 Days | 10 | Clear Anodized Aluminum | 8 | 20 | |
22.02 € | 1 | Available | 7 Days | 10 | Clear Anodized Aluminum | 10 | 15 | |
22.02 € | 1 | Available | 7 Days | 10 | Clear Anodized Aluminum | 10 | 20 | |
23.08 € | 1 | Available | 7 Days | 10 | Clear Anodized Aluminum | 12 | 15 | |
23.08 € | 1 | Available | 5 Days | 10 | Clear Anodized Aluminum | 12 | 20 | |
27.03 € | 1 | Available | 7 Days | 10 | Clear Anodized Aluminum | 15 | 15 | |
27.03 € | 1 | Available | 7 Days | 10 | Clear Anodized Aluminum | 15 | 20 |
Loading...
Example of Use
Basic information
| Material | Aluminum |
|---|
Configure
Basic Attributes
-
Surface Treatment
- Black Anodized Aluminum
- Clear Anodized Aluminum
-
Post Hole Dia. D Dimension(φ)
- 8
- 10
- 12
- 15
-
E Dimension(mm)
- 15
- 20
-
Type
- KBSB
- KBSW
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
