Toggle Clamp, Vertical Type, Flange Base, Clamp Bolt Fixed, Clamping Force 980 N

Toggle Clamp, Vertical Type, Flange Base, Clamp Bolt Fixed, Clamping Force 980 N

Mouse over image to enlarge

  • Toggle Clamp, Vertical Type, Flange Base, Clamp Bolt Fixed, Clamping Force 980 N
  • Toggle Clamp, Vertical Type, Flange Base, Clamp Bolt Fixed, Clamping Force 980 N

Caution

  • Please check the content on our website as the PDF does not contain the most up-to-date information.
  • For the purpose of quality improvement, once stock has run out, the connections for the arms will be changed from welding to rivets. Product photos, dimensional drawings and CAD data have been updated to reflect the specifications after changing to rivets.Product photos, dimensional drawings and CAD data have already been updated to reflect the specifications after changing to rivets.

Part number:

Still undefined. 2 possible part numbers found.
Quantity:

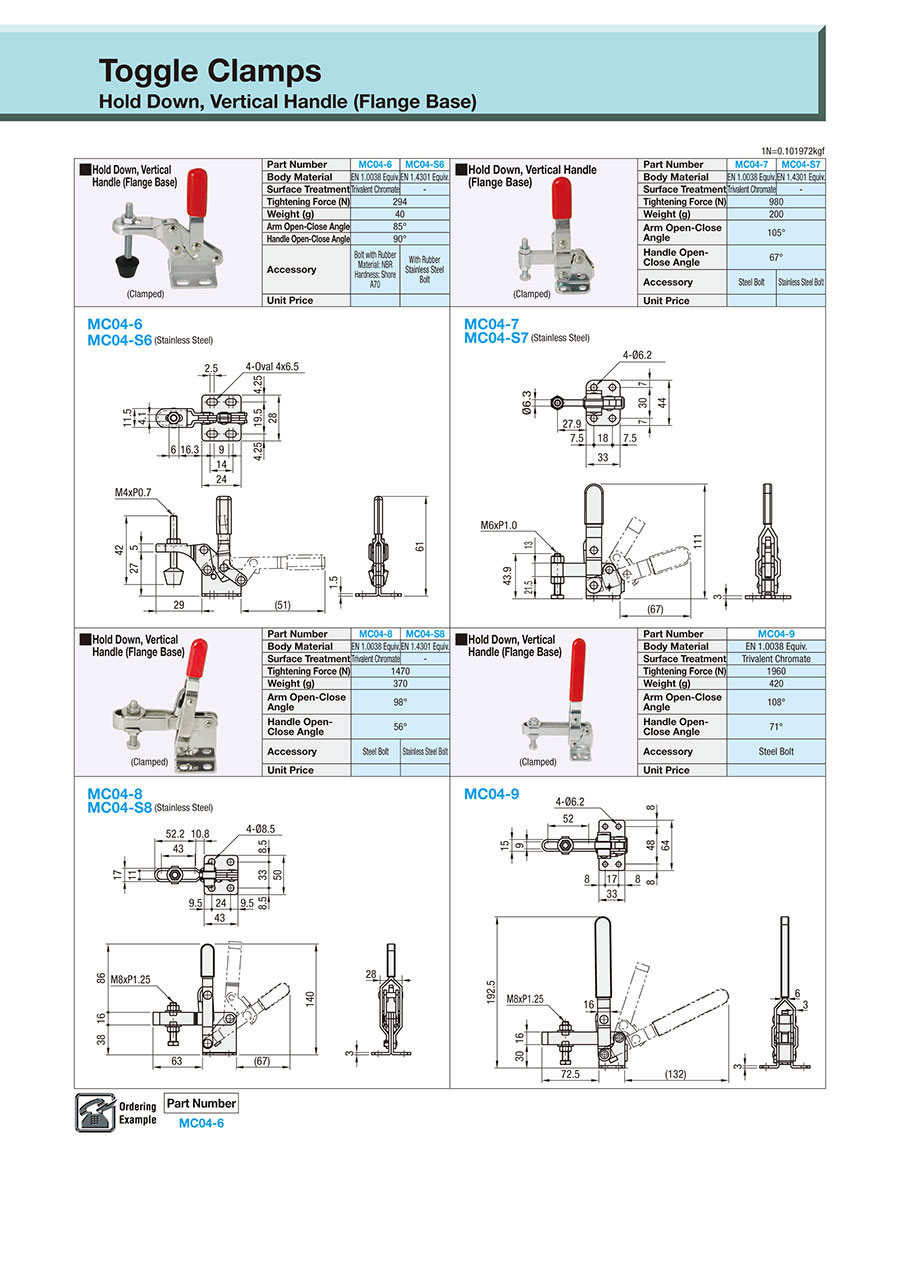

Outline drawing and specifications table

MC04−7
MC04−S7 (Stainless Steel)

Specification Table

Part Number
MC04−7
Part NumberMC04−7MC04−S7
Body MaterialEN 1.0038 Equiv.EN 1.4301 Equiv.
Surface TreatmentTrivalent Chromate—
Tightening Force (N)980
Weight (g)200
Arm Open-Close Angle105°
Handle Open-Close Angle67°
AccessorySteel BoltStainless Steel Bolt

Part number list

Number of items
  • 1
    • Part number
    MC04-7
    MC04-S7

    Body Material

    Clamp Screw Material

    		Minimum order quantity
    [Steel] EN 1.0038 Equiv.
    Steel
    1 pieces
    EN 1.4301 Equiv.
    Stainless Steel
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    9.50 €
    ( 11.30 € )
    5 working days
    20.53 €
    ( 24.43 € )
    5 working days
  • 1

    • More Information

    Basic information

    [Features] Vertical clamp with flanged base holding the bottom side.
