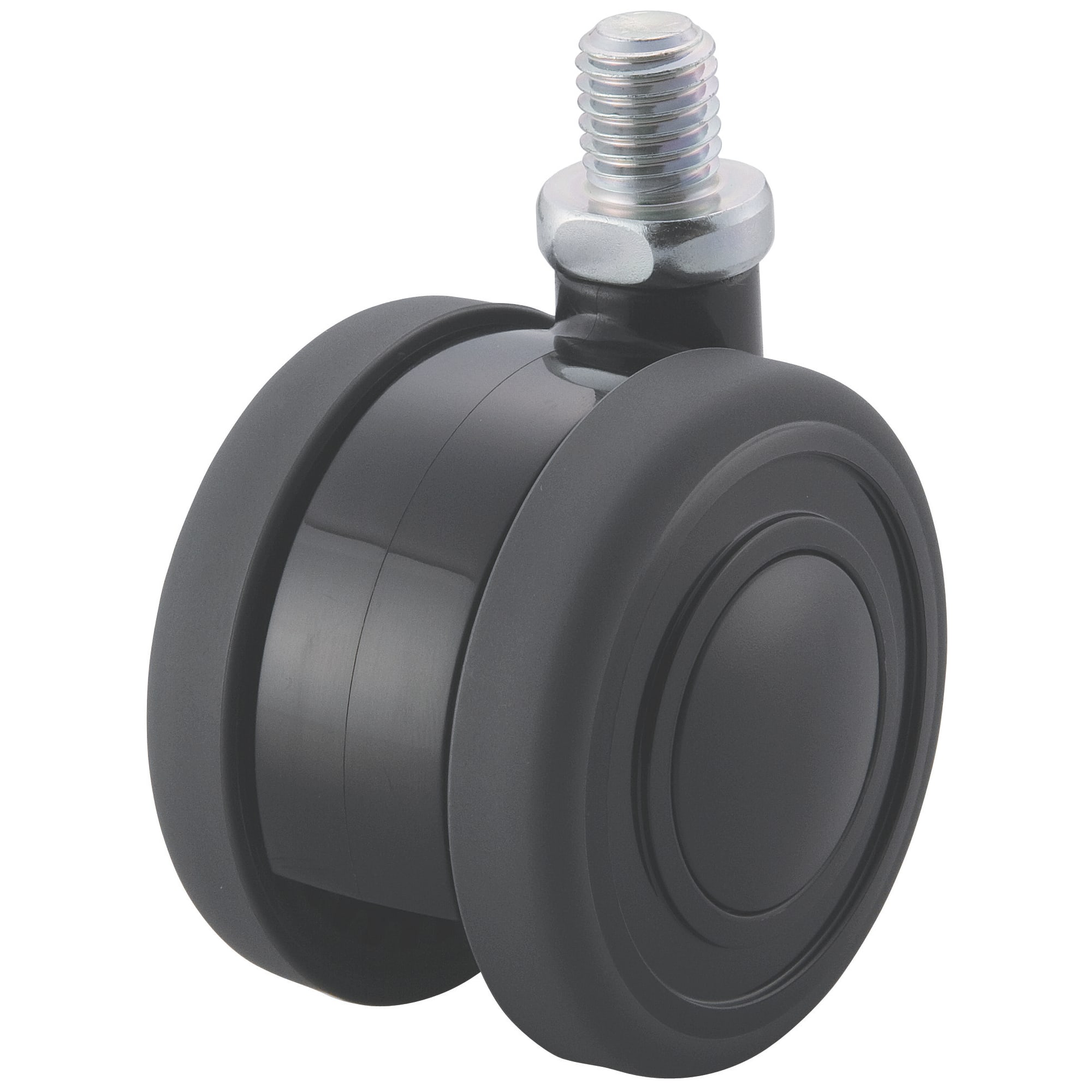

Design Caster CTEJN□

Mouse over image to enlarge

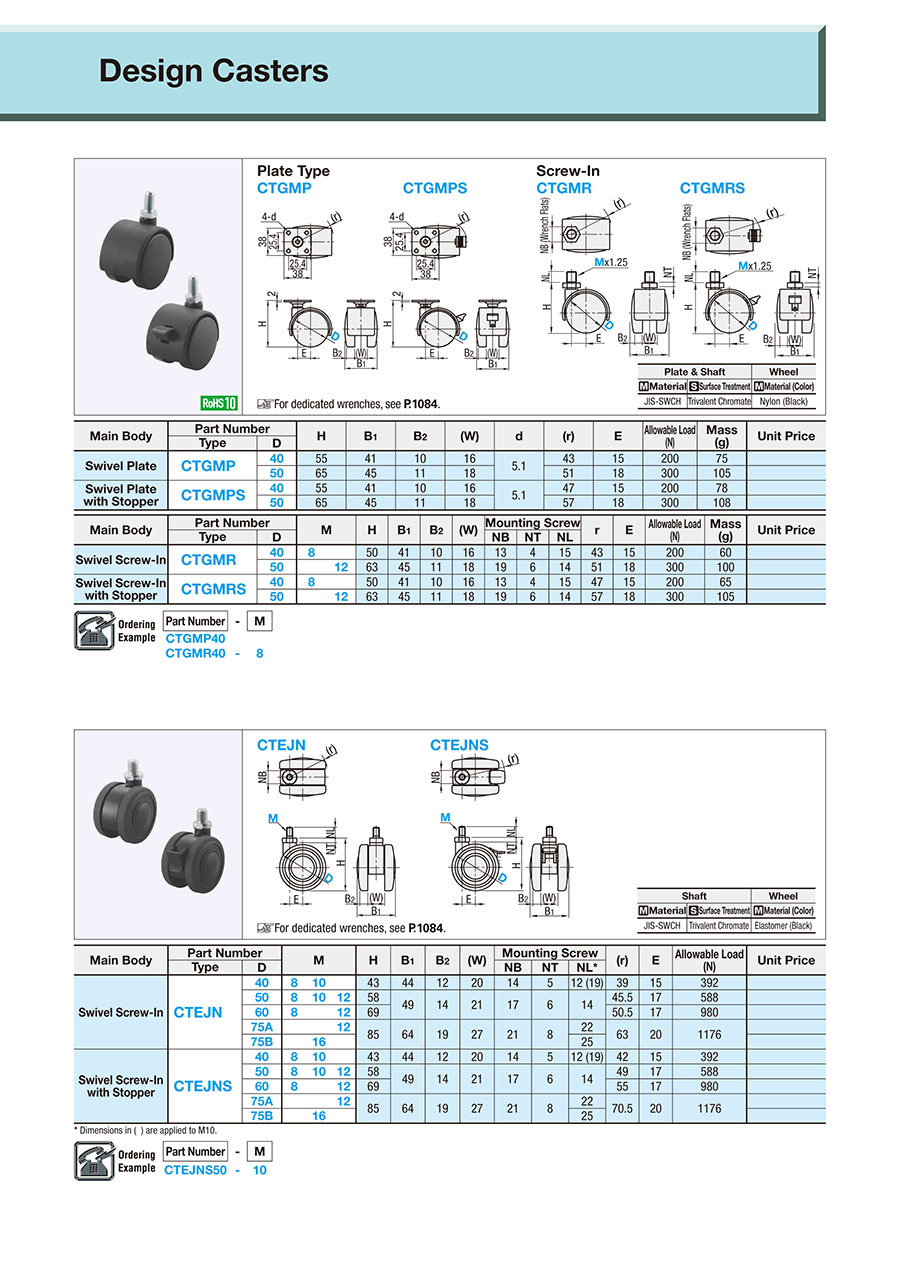

CatalogP.2-1100

Part number:

Still undefined. 18 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

CTEJN

CTEJNS

Shaft		Wheel
[M] Material	[S] Surface Treatment	[M]Material (Color)
JIS−SWCH	Trivalent Chromate	Elastomer (Black)

Specification Table

Part Number	—	M
CTEJNS50	—	10

Main Body Type	Part Number		M			H	B₁	B₂	(W)	Mounting Screw			(r)	E	Allowable Load (N)
	Type	D								NB	NT	NL_*
Swivel Screw-In Type	CTEJN	40	8	10		43	44	12	20	14	5	12 (19)	39	15	392
		50	8	10	12	58	49	14	21	17	6	14	45.5	17	588
		60	8		12	69							50.5	17	980
		75 A			12	85	64	19	27	21	8	22	63	20	1176
		75B		16								25
Swivel Screw-In With Stopper	CTEJNS	40	8	10		43	44	12	20	14	5	12 (19)	42	15	392
		50	8	10	12	58	49	14	21	17	6	14	49	17	588
		60	8		12	69							55	17	980
		75 A			12	85	64	19	27	21	8	22	70.5	20	1176
		75B		16								25

*Dimensions in ( ) are applied to M10.

Part number list

Number of items

Part number

[H] Mounting Height

(mm)

Load Range

(daN)

Stopper

Allowable Load

(daN)

Thread Dia. M

[D] Wheel Diameter

(mm)

Wheel Width B

(mm)

Mounting Screw Length NL

RoHS?

Minimum order quantity

43	35.01 to 80.00	Not Provided	39.2	M8	40	44	12	10	1 pieces
43	35.01 to 80.00	Not Provided	39.2	M10	40	44	19	10	1 pieces
58	35.01 to 80.00	Not Provided	58.8	M8	50	49	14	10	1 pieces
58	35.01 to 80.00	Not Provided	58.8	M10	50	49	14	10	1 pieces
58	35.01 to 80.00	Not Provided	58.8	M12	50	49	14	10	1 pieces
69	80.01 to 140.00	Not Provided	98	M8	60	49	14	10	1 pieces
69	80.01 to 140.00	Not Provided	98	M12	60	49	14	10	1 pieces
85	80.01 to 140.00	Not Provided	117.6	M12	75	64	22	10	1 pieces
85	80.01 to 140.00	Not Provided	117.6	M16	75	64	25	10	1 pieces
43	35.01 to 80.00	With Rotation Stopper	39.2	M8	40	44	12	10	1 pieces
43	35.01 to 80.00	With Rotation Stopper	39.2	M10	40	44	19	10	1 pieces
58	35.01 to 80.00	With Rotation Stopper	58.8	M8	50	49	14	10	1 pieces
58	35.01 to 80.00	With Rotation Stopper	58.8	M10	50	49	14	10	1 pieces
58	35.01 to 80.00	With Rotation Stopper	58.8	M12	50	49	14	10	1 pieces
69	80.01 to 140.00	With Rotation Stopper	98	M8	60	49	14	10	1 pieces
69	80.01 to 140.00	With Rotation Stopper	98	M12	60	49	14	10	1 pieces
85	80.01 to 140.00	With Rotation Stopper	117.6	M12	75	64	22	10	1 pieces
85	80.01 to 140.00	With Rotation Stopper	117.6	M16	75	64	25	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

5.56 € ( 6.62 € )	5 working days
5.56 € ( 6.62 € )	5 working days
7.41 € ( 8.82 € )	5 working days
7.41 € ( 8.82 € )	5 working days
7.41 € ( 8.82 € )	5 working days
9.02 € ( 10.73 € )	5 working days
9.02 € ( 10.73 € )	5 working days
22.21 € ( 26.43 € )	5 working days
22.70 € ( 27.01 € )	5 working days
6.73 € ( 8.01 € )	5 working days
6.73 € ( 8.01 € )	5 working days
8.15 € ( 9.70 € )	5 working days
8.15 € ( 9.70 € )	5 working days
8.15 € ( 9.70 € )	5 working days
10.42 € ( 12.40 € )	5 working days
10.42 € ( 12.40 € )	5 working days
23.85 € ( 28.38 € )	5 working days
22.43 € ( 26.69 € )	5 working days

More Information

Basic information

Basic information

[Features] A castor for light to medium duty. -The wheel material is elastomer.

Catalog

Products homepage

Catalog (2-page spread)
