Pulley
Click image to view enlarged image
Part number:

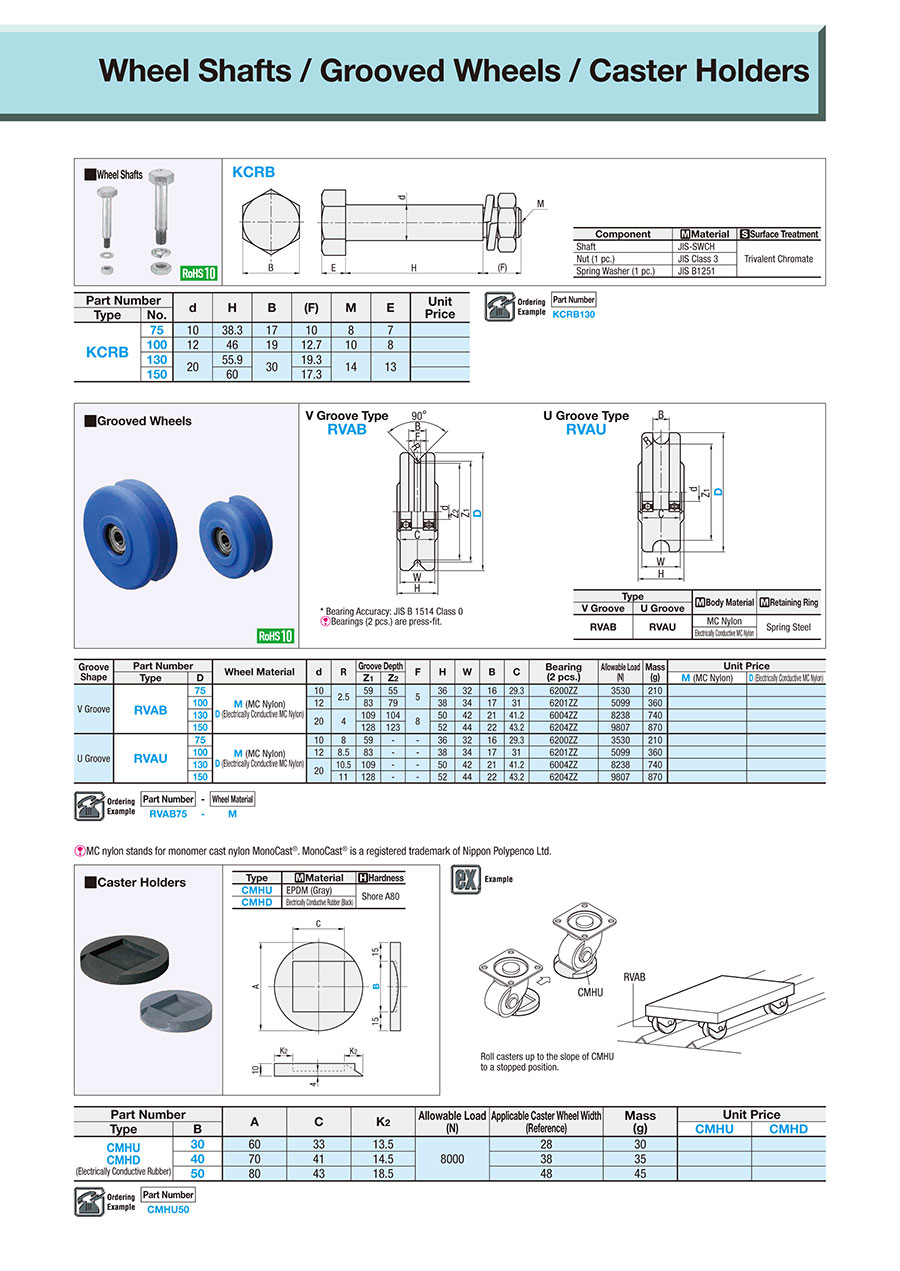

possible part numbers found.Outline drawing and specifications table
| Type | Body Material | Retaining Ring | |
| V Groove | U Groove | ||
| RVAB | RVAU | MC Nylon | Spring Steel |
| Electrically Conductive MC Nylon | |||
Bearings (2 pcs.) are press-fit.
MC nylon stands for monomer cast nylon MonoCast®. MonoCast® is a registered trademark of Nippon Polypenco Ltd.
Specifications
| Part Number | - | Wheel Material |
| RVAB75 | - | M |
| Groove Shape | Part Number | Wheel Material | d | R | Groove Depth | F | H | W | B | C | Bearing (2 pcs.) | Allowable Load (N) | Mass (g) | Unit Price | |||
| Type | D | Z1 | Z2 | M (MC Nylon) | D (Electrically Conductive MC Nylon) | ||||||||||||
| V Groove | RVAB | 75 | M (MC Nylon) D (Electrically Conductive MC Nylon) | 10 | 2.5 | 59 | 55 | 5 | 36 | 32 | 16 | 29.3 | 6200ZZ | 3530 | 210 | ||
| 100 | 12 | 83 | 79 | 38 | 34 | 17 | 31 | 6201ZZ | 5099 | 360 | |||||||
| 130 | 20 | 4 | 109 | 104 | 8 | 50 | 42 | 21 | 41.2 | 6004ZZ | 8238 | 740 | |||||
| 150 | 128 | 123 | 52 | 44 | 22 | 43.2 | 6204ZZ | 9807 | 870 | ||||||||
| U Groove | RVAU | 75 | M (MC Nylon) D (Electrically Conductive MC Nylon) | 10 | 8 | 59 | - | - | 36 | 32 | 16 | 29.3 | 6200ZZ | 3530 | 210 | ||
| 100 | 12 | 8.5 | 83 | - | - | 38 | 34 | 17 | 31 | 6201ZZ | 5099 | 360 | |||||
| 130 | 20 | 10.5 | 109 | - | - | 50 | 42 | 21 | 41.2 | 6004ZZ | 8238 | 740 | |||||
| 150 | 11 | 128 | - | - | 52 | 44 | 22 | 43.2 | 6204ZZ | 9807 | 870 | ||||||
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
105.03 € ( 124.99 € ) | 5 working days |
40.66 € ( 48.39 € ) | 5 working days |
122.54 € ( 145.82 € ) | 5 working days |
56.04 € ( 66.69 € ) | 5 working days |
255.53 € ( 304.08 € ) | 5 working days |
94.72 € ( 112.72 € ) | 5 working days |
330.34 € ( 393.10 € ) | 5 working days |
121.66 € ( 144.78 € ) | 5 working days |
105.03 € ( 124.99 € ) | 5 working days |
40.66 € ( 48.39 € ) | 5 working days |
122.54 € ( 145.82 € ) | 5 working days |
56.04 € ( 66.69 € ) | 5 working days |
255.53 € ( 304.08 € ) | 5 working days |
94.72 € ( 112.72 € ) | 5 working days |
330.34 € ( 393.10 € ) | 5 working days |
121.66 € ( 144.78 € ) | 5 working days |
More Information
Basic information
[Features] V-groove and U-groove types are available. [MC nylon and conductive MC nylon are available.
