Floor Stoppers / Space Saving Type
- Promotional pricing ends 30/11/2024
- Volume Discount
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

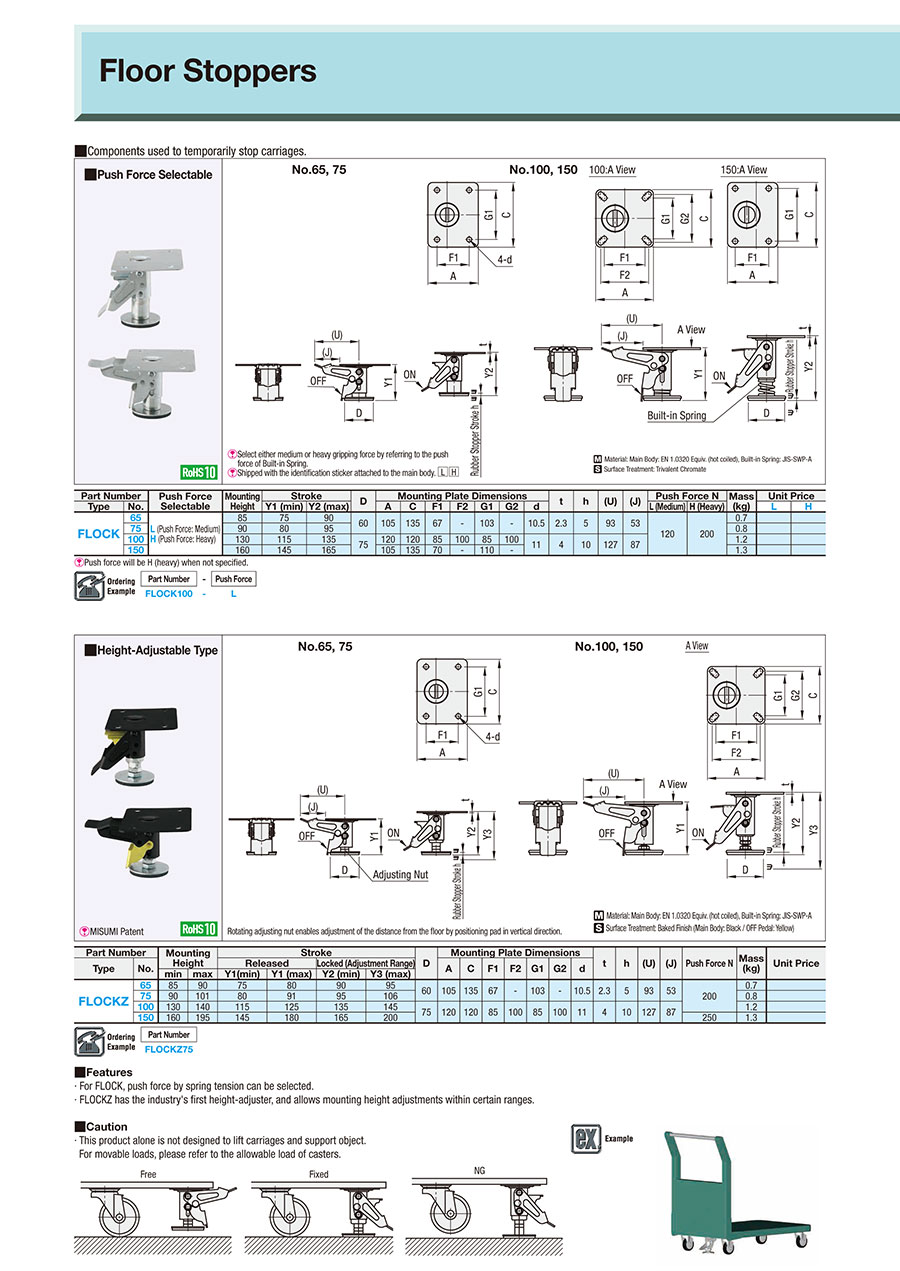

- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
Material: Main Body: EN 1.0320 Equiv. (hot coiled), Built-in Spring: JIS-SWP-A
Surface Treatment: Trivalent Chromate
Specifications
| Part Number | - | Push Force |
| FLOCK100 | - | L |
| Part Number | Push Force Selectable | Mounting Height | Stroke | D | Mounting Plate Dimensions | t | h | (U) | (J) | Push Force N | Mass (kg) | Unit Price | ||||||||||
| Type | No. | Y1 (min) | Y2 (max) | A | C | F1 | F2 | G1 | G2 | d | L (Medium) | H (Heavy) | L | H | ||||||||
| FLOCK | 65 | L (Push Force: Medium) H (Push Force: Heavy) | 85 | 75 | 90 | 60 | 105 | 135 | 67 | - | 103 | - | 10.5 | 2.3 | 5 | 93 | 53 | 120 | 200 | 0.7 | ||
| 75 | 90 | 80 | 95 | 0.8 | ||||||||||||||||||
| 100 | 130 | 115 | 135 | 75 | 120 | 120 | 85 | 100 | 85 | 100 | 11 | 4 | 10 | 127 | 87 | 1.2 | ||||||
| 150 | 160 | 145 | 165 | 105 | 135 | 70 | - | 110 | - | 1.3 | ||||||||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| FLOCK65 |
| FLOCK65-H |
| FLOCK65-L |
| FLOCK75 |
| FLOCK75-H |
| FLOCK75-L |
| FLOCK100 |
| FLOCK100-H |
| FLOCK100-L |
| FLOCK150 |
| FLOCK150-H |
| FLOCK150-L |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Features | Material | Surface Treatment | Type | Dimension B (mm) | Color | Mounting Height (mm) | Push Pressure | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
30.23 € | 1 | Available | 5 Days | 10 | Space Saving Type | EN 1.0320 Equiv. (hot coiled) | Trivalent Chromate | Floor Stoppers | - | - | 85 | Reinforced | |
30.23 € 21.16 € | 1 | Available |
Same day
Stock | 10 | - | Electrically Conductive Rubber | - | Caster Holders | 30 | - | - | - | |
29.59 € | 1 | Available | 5 Days | 10 | Height-Adjustable Type | EN 1.0320 Equiv. (hot coiled) | Baked Paint | Floor Stoppers | - | Black, Yellow | 85 | - | |
31.24 € | 1 | Available | 5 Days | 10 | Height-Adjustable Type | EN 1.0320 Equiv. (hot coiled) | Baked Paint | Floor Stoppers | - | Black, Yellow | 90 | - | |
31.24 € | 1 | Available | 5 Days | 10 | - | Electrically Conductive Rubber | - | Caster Holders | 40 | - | - | - | |
30.85 € | 1 | Available | 5 Days | 10 | - | EPDM | - | Caster Holders | 30 | - | - | - | |
39.04 € | 1 | Available | 5 Days | 10 | Height-Adjustable Type | EN 1.0320 Equiv. (hot coiled) | Baked Paint | Floor Stoppers | - | Black, Yellow | 130 | - | |
37.53 € | 1 | Available | 5 Days | 10 | - | Electrically Conductive Rubber | - | Caster Holders | 50 | - | - | - | |
37.53 € | 1 | Available | 5 Days | 10 | - | EPDM | - | Caster Holders | 40 | - | - | - | |
52.90 € | 1 | Available | 5 Days | 10 | Height-Adjustable Type | EN 1.0320 Equiv. (hot coiled) | Baked Paint | Floor Stoppers | - | Black, Yellow | 160 | - | |
52.90 € | 1 | Available |
Same day
Stock | 10 | - | - | - | - | - | - | - | - | |
39.67 € | 1 | Available | 5 Days | 10 | - | EPDM | - | Caster Holders | 50 | - | - | - |
