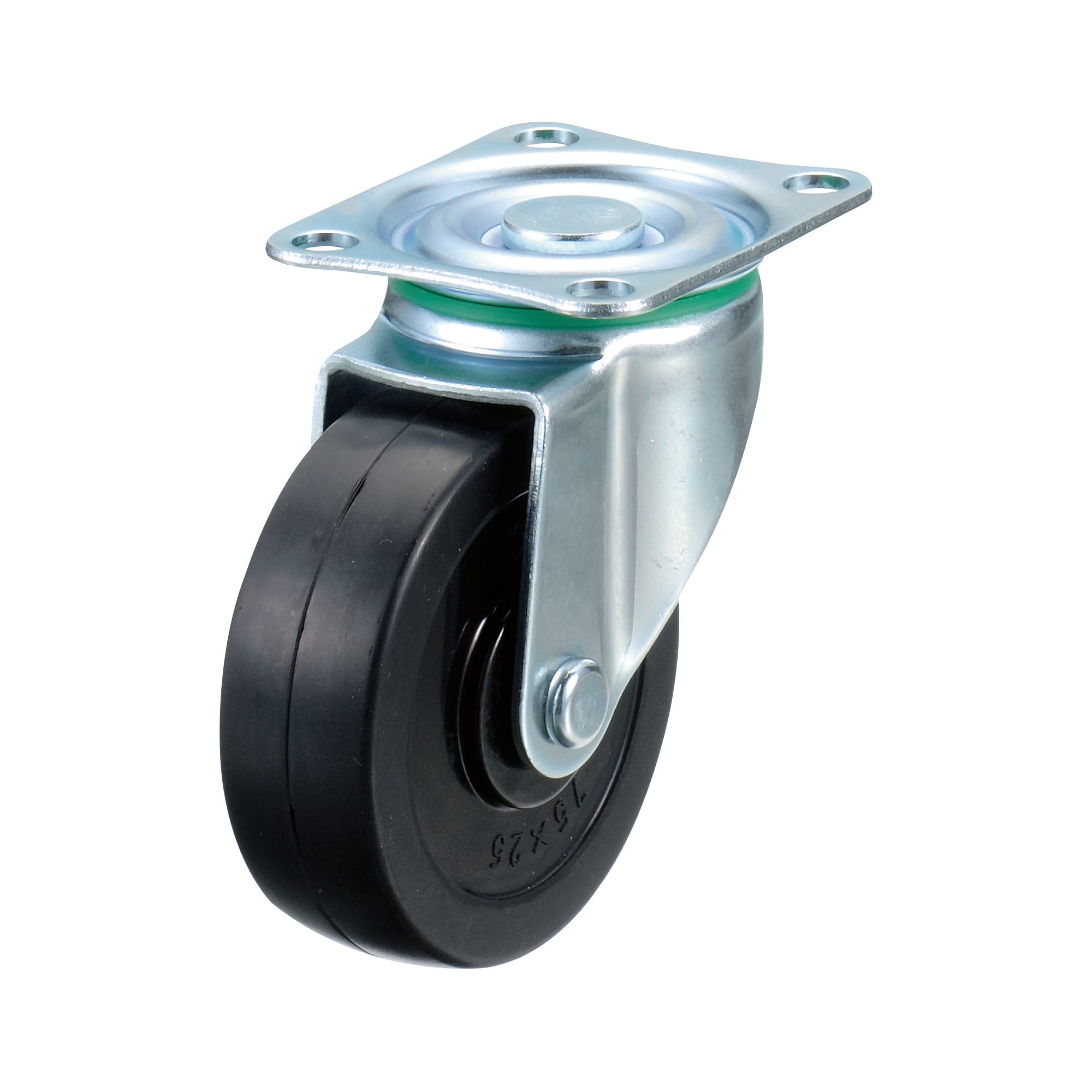

Caster Light/Medium Duty CHAM□-S CSHAM□-S

Mouse over image to enlarge

CatalogP.2-1066

Part number:

Still undefined. 54 possible part numbers found.

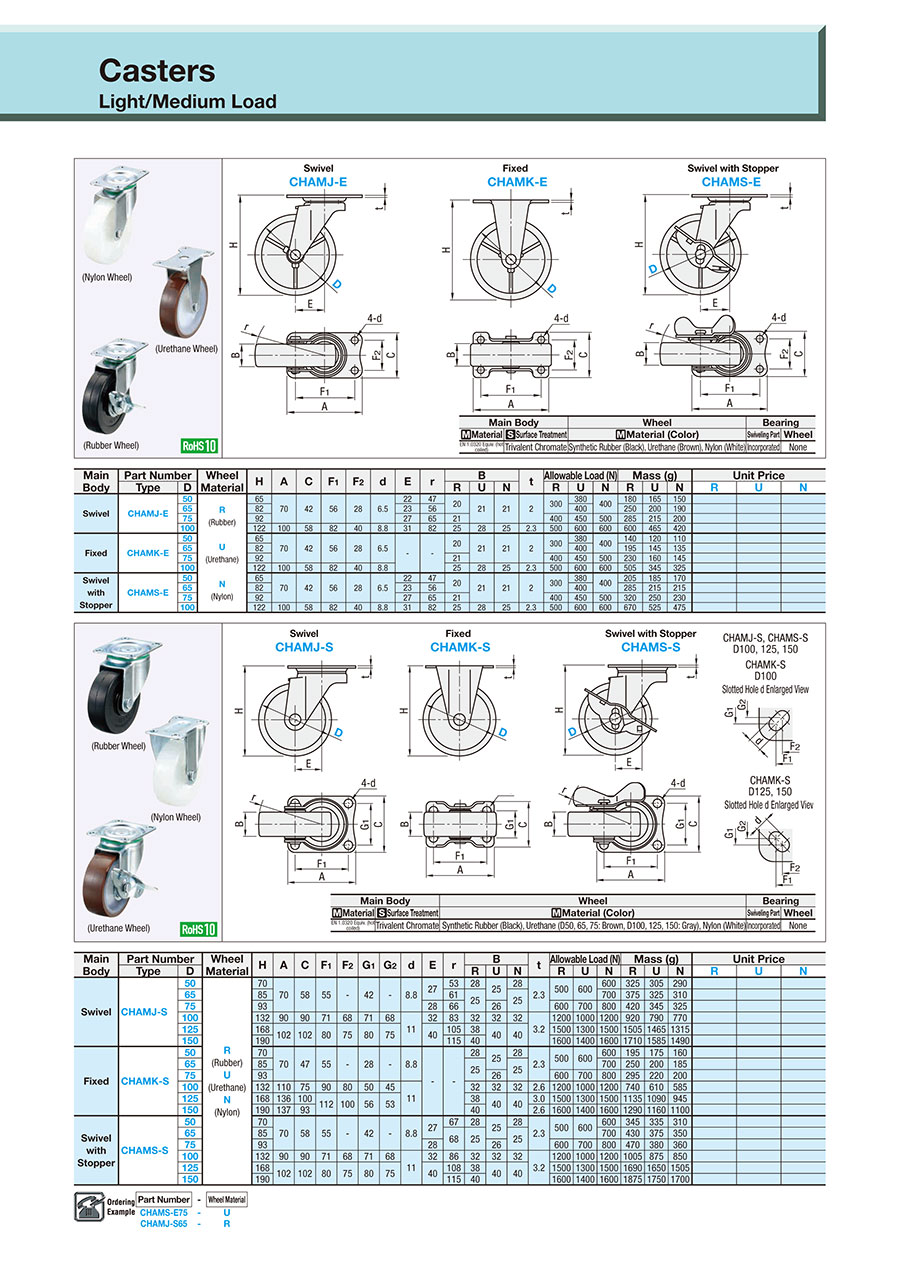

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Main Body		Wheel	Bearing
Material	Surface Treatment	Material (Color)	Swiveling Part	Wheel
EN 1.0320 Equiv. (hot coiled)	Trivalent Chromate	Synthetic Rubber (Black), Urethane (D50, 65, 75: Brown, D100, 125, 150: Gray), Nylon (White)	Incorporated	None

Specifications

Part Number	-	Wheel Material
CHAMS-E75	-	U
CHAMJ-S65	-	R

Main Body	Part Number		Wheel Material	H	A	C	F₁	F₂	G₁	G₂	d	E	r	B			t	Allowable Load (N)			Mass (g)			Unit Price
Main Body	Type	D	Wheel Material	H	A	C	F₁	F₂	G₁	G₂	d	E	r	R	U	N	t	R	U	N	R	U	N	R	U	N
Swivel	CHAMJ-S	50	R (Rubber) U (Urethane) N (Nylon)	70	70	58	55	-	42	-	8.8	27	53	28	25	28	2.3	500	600	600	325	305	290
		65		85								27	61	25	25	25		500	600	700	375	325	310
		75		93								28	66	25	26	25		600	700	800	420	345	325
		100		132	90	90	71	68	71	68	11	32	83	32	32	32	3.2	1200	1000	1200	920	790	770
		125		168	102	102	80	75	80	75		40	105	38	40	40		1500	1300	1500	1505	1465	1315
		150		190	102	102	80	75	80	75		40	115	40	40	40		1600	1400	1600	1710	1585	1490
Fixed	CHAMK-S	50		70	70	47	55	-	28	-	8.8	-	-	28	25	28	2.3	500	600	600	195	175	160
		65		85										25	25	25		500	600	700	250	200	185
		75		93										25	26	25		600	700	800	295	220	200
		100		132	110	75	90	80	50	45	11			32	32	32	2.6	1200	1000	1200	740	610	585
		125		168	136	100	112	100	56	53				38	40	40	3.0	1500	1300	1500	1135	1090	945
		150		190	137	93	112	100	56	53				40	40	40	2.6	1600	1400	1600	1290	1160	1100
Swivel with Stopper	CHAMS-S	50		70	70	58	55	-	42	-	8.8	27	67	28	25	28	2.3	500	600	600	345	335	310
		65		85								27	68	25	25	25		500	600	700	430	375	350
		75		93								28	68	25	26	25		600	700	800	470	380	360
		100		132	90	90	71	68	71	68	11	32	86	32	32	32	3.2	1200	1000	1200	1005	875	850
		125		168	102	102	80	75	80	75		40	108	38	40	40		1500	1300	1500	1690	1650	1505
		150		190	102	102	80	75	80	75		40	115	40	40	40		1600	1400	1600	1875	1750	1700

Part number list

Number of items

Part number

Caster Type

[H] Mounting Height

(mm)

Load Range

(daN)

Stopper

Allowable Load

(daN)

Wheel Material

Mounting Hole Pitch, Longitudinal Direction

(mm)

Mounting Hole Pitch, Transverse Direction

(mm)

Plate Length

(mm)

Plate Width

(mm)

[D] Wheel Diameter

(mm)

Wheel Width B

(mm)

RoHS?

Minimum order quantity

Plate Type Swivel	70	35.01 to 80.00	Not Provided	60	[Nylon] Nylon (General)	55	42	70	58	50	28	10	1 pieces
Plate Type Swivel	70	35.01 to 80.00	Not Provided	50	[Synthetic Rubber] Synthetic Rubber (General)	55	42	70	58	50	28	10	1 pieces
Plate Type Swivel	70	35.01 to 80.00	Not Provided	60	[Urethane] Urethane (General)	55	42	70	58	50	25	10	1 pieces
Plate Type Swivel	85	35.01 to 80.00	Not Provided	70	[Nylon] Nylon (General)	55	42	70	58	65	25	10	1 pieces
Plate Type Swivel	85	35.01 to 80.00	Not Provided	50	[Synthetic Rubber] Synthetic Rubber (General)	55	42	70	58	65	25	10	1 pieces
Plate Type Swivel	85	35.01 to 80.00	Not Provided	60	[Urethane] Urethane (General)	55	42	70	58	65	25	10	1 pieces
Plate Type Swivel	93	35.01 to 80.00	Not Provided	80	[Nylon] Nylon (General)	55	42	70	58	75	25	10	1 pieces
Plate Type Swivel	93	35.01 to 80.00	Not Provided	60	[Synthetic Rubber] Synthetic Rubber (General)	55	42	70	58	75	25	10	1 pieces
Plate Type Swivel	93	35.01 to 80.00	Not Provided	70	[Urethane] Urethane (General)	55	42	70	58	75	26	10	1 pieces
Plate Type Swivel	132	80.01 to 140.00	Not Provided	120	[Nylon] Nylon (General)	71	71	90	90	100	32	10	1 pieces
Plate Type Swivel	132	80.01 to 140.00	Not Provided	120	[Synthetic Rubber] Synthetic Rubber (General)	71	71	90	90	100	32	10	1 pieces
Plate Type Swivel	132	80.01 to 140.00	Not Provided	100	[Urethane] Urethane (General)	71	71	90	90	100	32	10	1 pieces
Plate Type Swivel	168	140.01 to 220.00	Not Provided	150	[Nylon] Nylon (General)	80	80	102	102	125	40	10	1 pieces
Plate Type Swivel	168	140.01 to 220.00	Not Provided	150	[Synthetic Rubber] Synthetic Rubber (General)	80	80	102	102	125	38	10	1 pieces
Plate Type Swivel	168	80.01 to 140.00	Not Provided	130	[Urethane] Urethane (General)	80	80	102	102	125	40	10	1 pieces
Plate Type Swivel	190	140.01 to 220.00	Not Provided	160	[Nylon] Nylon (General)	80	80	102	102	150	40	10	1 pieces
Plate Type Swivel	190	140.01 to 220.00	Not Provided	160	[Synthetic Rubber] Synthetic Rubber (General)	80	80	102	102	150	40	10	1 pieces
Plate Type Swivel	190	80.01 to 140.00	Not Provided	140	[Urethane] Urethane (General)	80	80	102	102	150	40	10	1 pieces
Plate Type Fixed	70	35.01 to 80.00	Not Provided	60	[Nylon] Nylon (General)	55	28	70	47	50	28	10	1 pieces
Plate Type Fixed	70	35.01 to 80.00	Not Provided	50	[Synthetic Rubber] Synthetic Rubber (General)	55	28	70	47	50	28	10	1 pieces
Plate Type Fixed	70	35.01 to 80.00	Not Provided	60	[Urethane] Urethane (General)	55	28	70	47	50	25	10	1 pieces
Plate Type Fixed	85	35.01 to 80.00	Not Provided	70	[Nylon] Nylon (General)	55	28	70	47	65	25	10	1 pieces
Plate Type Fixed	85	35.01 to 80.00	Not Provided	50	[Synthetic Rubber] Synthetic Rubber (General)	55	28	70	47	65	25	10	1 pieces
Plate Type Fixed	85	35.01 to 80.00	Not Provided	60	[Urethane] Urethane (General)	55	28	70	47	65	25	10	1 pieces
Plate Type Fixed	93	35.01 to 80.00	Not Provided	80	[Nylon] Nylon (General)	55	28	70	47	75	25	10	1 pieces
Plate Type Fixed	93	35.01 to 80.00	Not Provided	60	[Synthetic Rubber] Synthetic Rubber (General)	55	28	70	47	75	25	10	1 pieces
Plate Type Fixed	93	35.01 to 80.00	Not Provided	70	[Urethane] Urethane (General)	55	28	70	47	75	26	10	1 pieces
Plate Type Fixed	132	80.01 to 140.00	Not Provided	120	[Nylon] Nylon (General)	90	50	110	75	100	32	10	1 pieces
Plate Type Fixed	132	80.01 to 140.00	Not Provided	120	[Synthetic Rubber] Synthetic Rubber (General)	90	50	110	75	100	32	10	1 pieces
Plate Type Fixed	132	80.01 to 140.00	Not Provided	100	[Urethane] Urethane (General)	90	50	110	75	100	32	10	1 pieces
Plate Type Fixed	168	140.01 to 220.00	Not Provided	150	[Nylon] Nylon (General)	112	56	136	100	125	40	10	1 pieces
Plate Type Fixed	168	140.01 to 220.00	Not Provided	150	[Synthetic Rubber] Synthetic Rubber (General)	112	56	136	100	125	38	10	1 pieces
Plate Type Fixed	168	80.01 to 140.00	Not Provided	130	[Urethane] Urethane (General)	112	56	136	100	125	40	10	1 pieces
Plate Type Fixed	190	140.01 to 220.00	Not Provided	160	[Nylon] Nylon (General)	112	56	137	93	150	40	10	1 pieces
Plate Type Fixed	190	140.01 to 220.00	Not Provided	160	[Synthetic Rubber] Synthetic Rubber (General)	112	56	137	93	150	40	10	1 pieces
Plate Type Fixed	190	80.01 to 140.00	Not Provided	140	[Urethane] Urethane (General)	112	56	137	93	150	40	10	1 pieces
Plate Type Swivel	70	35.01 to 80.00	With Rotation Stopper	60	[Nylon] Nylon (General)	55	42	70	58	50	28	10	1 pieces
Plate Type Swivel	70	35.01 to 80.00	With Rotation Stopper	50	[Synthetic Rubber] Synthetic Rubber (General)	55	42	70	58	50	28	10	1 pieces
Plate Type Swivel	70	35.01 to 80.00	With Rotation Stopper	60	[Urethane] Urethane (General)	55	42	70	58	50	25	10	1 pieces
Plate Type Swivel	85	35.01 to 80.00	With Rotation Stopper	70	[Nylon] Nylon (General)	55	42	70	58	65	25	10	1 pieces
Plate Type Swivel	85	35.01 to 80.00	With Rotation Stopper	50	[Synthetic Rubber] Synthetic Rubber (General)	55	42	70	58	65	25	10	1 pieces
Plate Type Swivel	85	35.01 to 80.00	With Rotation Stopper	60	[Urethane] Urethane (General)	55	42	70	58	65	25	10	1 pieces
Plate Type Swivel	93	35.01 to 80.00	With Rotation Stopper	80	[Nylon] Nylon (General)	55	42	70	58	75	25	10	1 pieces
Plate Type Swivel	93	35.01 to 80.00	With Rotation Stopper	60	[Synthetic Rubber] Synthetic Rubber (General)	55	42	70	58	75	25	10	1 pieces
Plate Type Swivel	93	35.01 to 80.00	With Rotation Stopper	70	[Urethane] Urethane (General)	55	42	70	58	75	26	10	1 pieces
Plate Type Swivel	132	80.01 to 140.00	With Rotation Stopper	120	[Nylon] Nylon (General)	71	71	90	90	100	32	10	1 pieces
Plate Type Swivel	132	80.01 to 140.00	With Rotation Stopper	120	[Synthetic Rubber] Synthetic Rubber (General)	71	71	90	90	100	32	10	1 pieces
Plate Type Swivel	132	80.01 to 140.00	With Rotation Stopper	100	[Urethane] Urethane (General)	71	71	90	90	100	32	10	1 pieces
Plate Type Swivel	168	140.01 to 220.00	With Rotation Stopper	150	[Nylon] Nylon (General)	80	80	102	102	125	40	10	1 pieces
Plate Type Swivel	168	140.01 to 220.00	With Rotation Stopper	150	[Synthetic Rubber] Synthetic Rubber (General)	80	80	102	102	125	38	10	1 pieces
Plate Type Swivel	168	80.01 to 140.00	With Rotation Stopper	130	[Urethane] Urethane (General)	80	80	102	102	125	40	10	1 pieces
Plate Type Swivel	190	140.01 to 220.00	With Rotation Stopper	160	[Nylon] Nylon (General)	80	80	102	102	150	40	10	1 pieces
Plate Type Swivel	190	140.01 to 220.00	With Rotation Stopper	160	[Synthetic Rubber] Synthetic Rubber (General)	80	80	102	102	150	40	10	1 pieces
Plate Type Swivel	190	80.01 to 140.00	With Rotation Stopper	140	[Urethane] Urethane (General)	80	80	102	102	150	40	10	1 pieces
