Castors for Factory Frames
Mouse over image to enlarge
- Unit price (excl. VAT)
- 5.55 €
- Total (excl. VAT)
- 5.55 €Price including VAT: 6.60 €
- Expected shipping days
- 7 working daysExpected shipping date: 19.05.2025
| Quantity | 1 - 98 | 99 - 100 | 101 - 499 | 500+ |
|---|---|---|---|---|
| Unit price (excluding VAT) (Unit price including VAT) | 5.55 € (6.60 €) | 5.55 € (6.60 €) | 5.55 € (6.60 €) | 4.72 € (5.62 €) |
| Shipping days | 7 days | 9 days | Quote | Quote |
- * Information on days to ship, shipping costs and prices
Outline drawing and specifications table

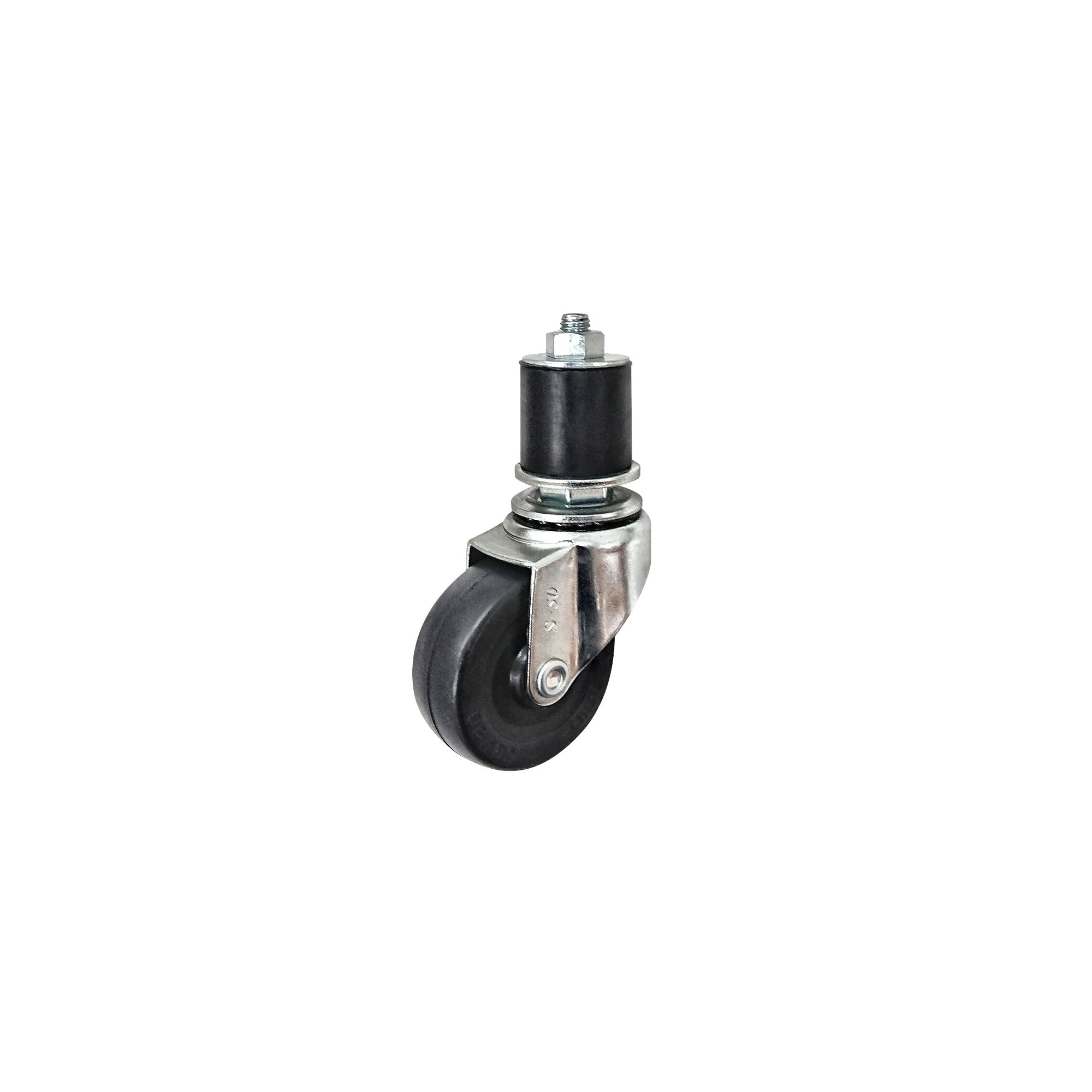

■Plastic Joint Insert Type
PHCHPJ
PHCHPJ
* Use a wrench JBS009.
After tightening, the rubber will shrink and secure from the inside of the pipe.
| Type | Main Body | Wheel | Bearing | |
| [M] Material | [S] Surface Treatment | [M] Material | ||
| PHCHPJ | EN 1.0320 Equiv. (hot coiled) | Trivalent Chromate | Synthetic Rubber | Provided |
Specification Table
| Part Number |
| PHCHPJ50 |
| To be inserted | Part Number | d1 | B | H | J | E | Wrench Width mm | Wheel color | Allowable Load N{kgf} | Mass kg | ||
| Type | D | |||||||||||
| Plastic* Joint | PHCHPJ | 50 | 28 | 20 | 67 | 28 | 22 | 17 | Black | 343 | {35} | 0.19 |
More Information
