Flexible Clamps / Compact
Part number:

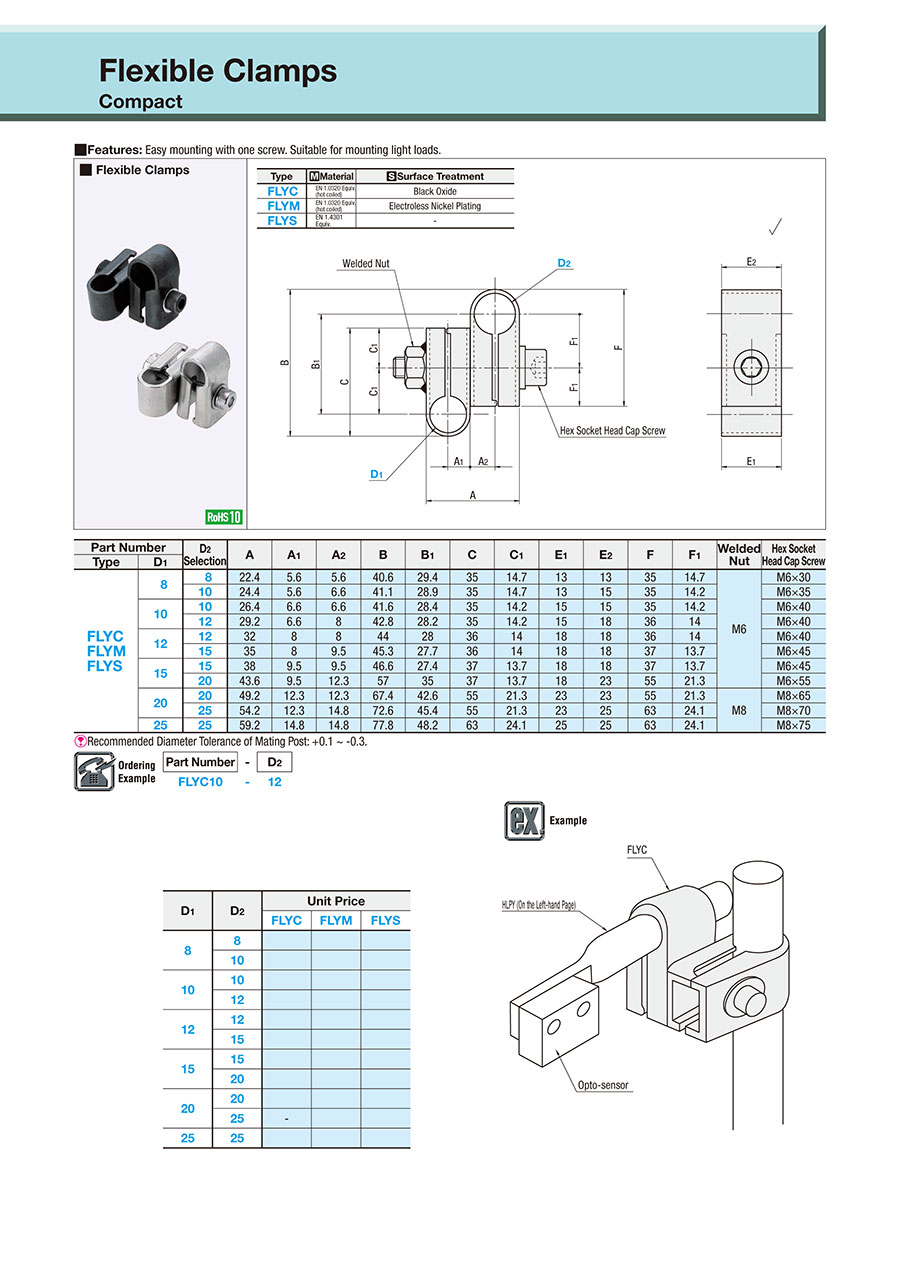

possible part numbers found.Outline drawing and specifications table
FLYC
FLYM
FLYS
FLYM
FLYS
| Type | [M] Material | [S] Surface Treatment |
| FLYC | EN 1.0320 Equiv. (hot coiled) | Black Oxide |
| FLYM | EN 1.0320 Equiv. (hot coiled) | Electroless Nickel Plating |
| FLYS | EN 1.4301 Equiv. | — |
Specification Table
| Part Number | — | D₂ |
| FLYC10 | — | 12 |
| Part Number | D₂ Selection | A | A₁ | A₂ | B | B₁ | C | C₁ | E₁ | E₂ | F | F₁ | Weld-On Nut | Hex Socket Head Cap Screws | |
| Type | D₁ | ||||||||||||||
| FLYC FLYM FLYS | 8 | 8 | 22.4 | 5.6 | 5.6 | 40.6 | 29.4 | 35 | 14.7 | 13 | 13 | 35 | 14.7 | M6 | M6 × 30 |
| 10 | 24.4 | 5.6 | 6.6 | 41.1 | 28.9 | 35 | 14.7 | 13 | 15 | 35 | 14.2 | M6 × 35 | |||
| 10 | 10 | 26.4 | 6.6 | 6.6 | 41.6 | 28.4 | 35 | 14.2 | 15 | 15 | 35 | 14.2 | M6 × 40 | ||
| 12 | 29.2 | 6.6 | 8 | 42.8 | 28.2 | 35 | 14.2 | 15 | 18 | 36 | 14 | M6 × 40 | |||
| 12 | 12 | 32 | 8 | 8 | 44 | 28 | 36 | 14 | 18 | 18 | 36 | 14 | M6 × 40 | ||
| 15 | 35 | 8 | 9.5 | 45.3 | 27.7 | 36 | 14 | 18 | 18 | 37 | 13.7 | M6 × 45 | |||
| 15 | 15 | 38 | 9.5 | 9.5 | 46.6 | 27.4 | 37 | 13.7 | 18 | 18 | 37 | 13.7 | M6 × 45 | ||
| 20 | 43.6 | 9.5 | 12.3 | 57 | 35 | 37 | 13.7 | 18 | 23 | 55 | 21.3 | M6 × 55 | |||
| 20 | 20 | 49.2 | 12.3 | 12.3 | 67.4 | 42.6 | 55 | 21.3 | 23 | 23 | 55 | 21.3 | M8 | M8 × 65 | |
| 25 | 54.2 | 12.3 | 14.8 | 72.6 | 45.4 | 55 | 21.3 | 23 | 25 | 63 | 24.1 | M8 × 70 | |||
| 25 | 25 | 59.2 | 14.8 | 14.8 | 77.8 | 48.2 | 63 | 24.1 | 25 | 25 | 63 | 24.1 | M8 × 75 | ||
[ ! ] Recommended diameter tolerance of mating post: +0.1 to -0.3.
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
10.83 €4.77 € ( 5.68 € ) | Stock item: 1 working dayAvailable for same-day shipping |
11.07 € ( 13.17 € ) | 5 working days |
