            MISUMI

            Dust Pans

            Dust Pans

            Mouse over image to enlarge

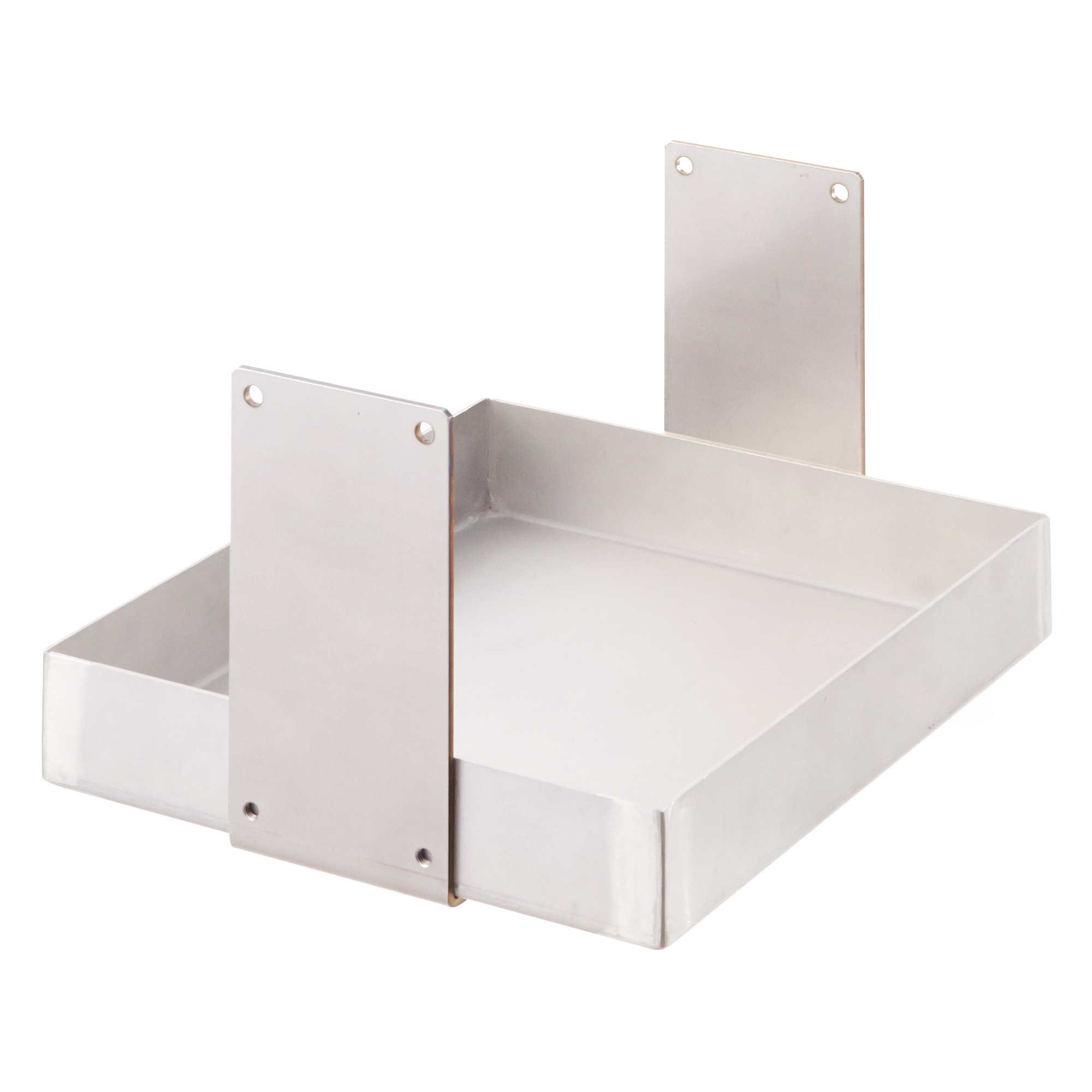

            • Dust Pans
            • Dust Pans

            Caution

            • Please check the content on our website as the PDF does not contain the most up-to-date information.

            Part number:

            CDPT-[65-550/1]-[100-400/5]-[20-40/10]-[150-200/10]
            Clear
            Quantity:

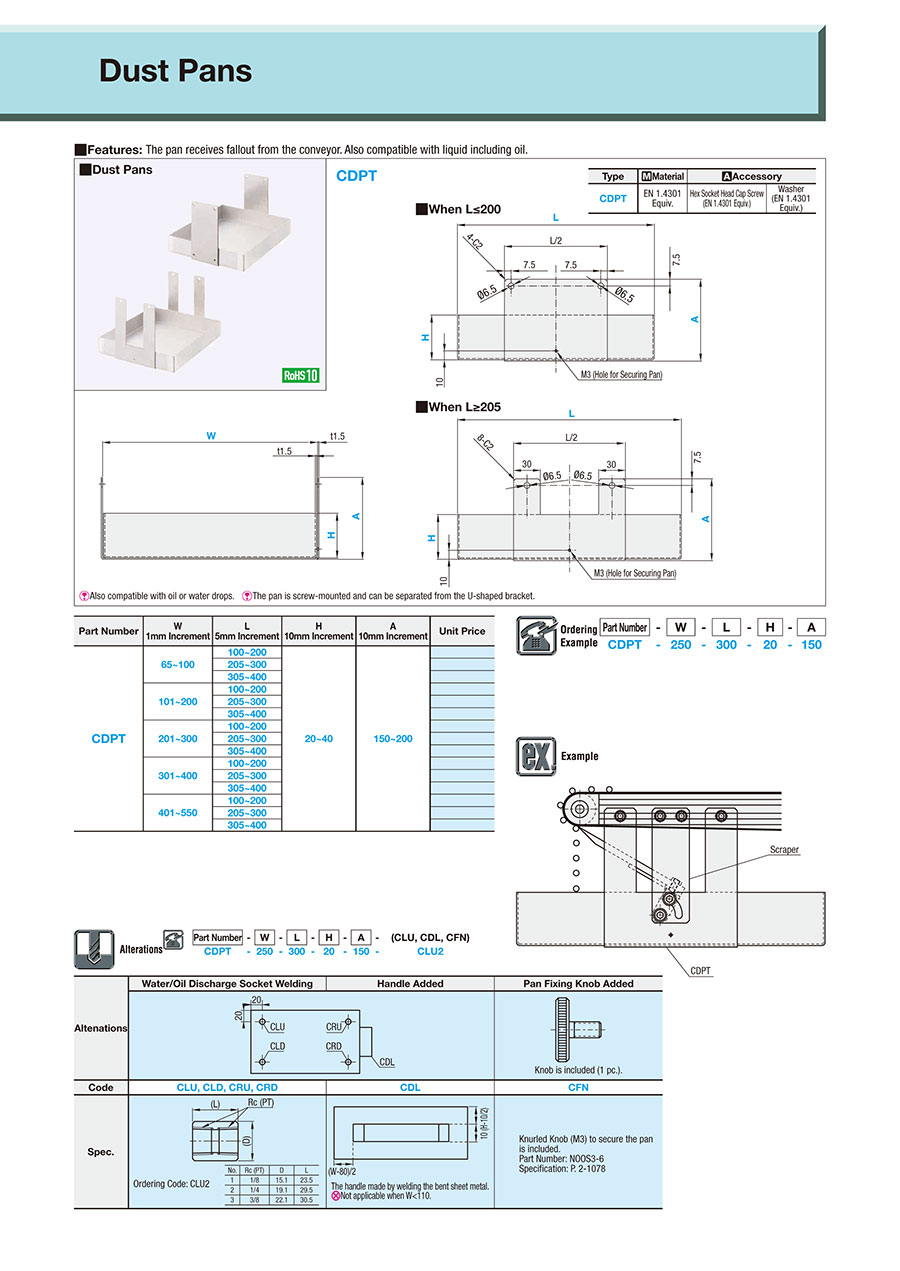

            Outline drawing and specifications table

            Dust Pans: Related Image CDPT ■When L ≤ 200 ■When L ≥ 205
            [ ! ] Also resistant to oil and water drops.
            [!] Conveyor mounting bolts are not included. Please check the nut size of the conveyor and prepare the bolts.
            [ ! ] The pan is screw-mounted and can be separated from the U-shaped bracket.

            Type[M] Material[A] Accessory
            CDPTEN 1.4301 Equiv.Hex Socket Head Cap Screw
            (EN 1.4301 Equiv.)            		Washer
            (EN 1.4301 Equiv.)

            Specification Table

            Part Number—W—L—H—A
            CDPT—250—300—20—150
            Part NumberW
            1 mm Increments            		L
            5 mm Increments            		H
            10 mm Increments            		A
            10 mm Increments
            CDPT65 to 100100 to 20020 to 40150 to 200
            205 to 300
            305 to 400
            101 to 200100 to 200
            205 to 300
            305 to 400
            201 to 300100 to 200
            205 to 300
            305 to 400
            301 to 400100 to 200
            205 to 300
            305 to 400
            401 to 550100 to 200
            205 to 300
            305 to 400

            Alterations

            Part Number—W—L—H—A—(CLU·CDL·CFN)
            CDPT—250—300—20—150—CLU2
            Alterations
            Code            		Alteration DetailsApplicable ConditionsOrdering Example
            CLU
            CLD
            CRU
            CRD            		Alteration Part
            Dust Pans: Related Image            		Water / Oil Discharge Socket Welding

            [Ordering Code]: CLU2
            Dust Pans: Related Image
            No.Rc (PT)DL
            11/815.123.5
            21/419.129.5
            33/822.130.5
            		-CDPT-250-300-20-150-CLU2
            CDLHandle Added

            The handle made by bending the sheet metal and welding it in the center. Dust Pans: Related Image

            [NG] Not applicable when W < 140.

            		CDPT-250-300-20-150-CDL
            CFNPan Fixing Knob Added
            Dust Pans: Related Image            		One Knurled Knob (M3) to secure the pan is included.
            Part Number: NOOS3-6
            		-CDPT-250-300-20-150-CFN

            Part number list

            Number of items
          • 1
            • Part number
            CDPT-[65-550/1]-[100-400/5]-[20-40/10]-[150-200/10]

            A

            (mm)

            H

            (mm)

            L

            (mm)

            W

            (mm)

            		RoHS?Minimum order quantity
            150 ～ 200
            20 ～ 40
            100 ～ 400
            65 ～ 550
            10
            1 pieces
            Unit price (excluding VAT)(Unit price including VAT)
            Standard shipping days
            -
            ( - )
            11 working days
          • 1

            • More Information

            Basic information

            The pan is screw-mounted and can be separated from the U-shaped bracket.

            Caution

            • Please check the content on our website as the PDF does not contain the most up-to-date information.

            Outline and specifications

            Specifications/Overview

            [ ! ] Also resistant to oil and water drops.

            App. Example
