Configure

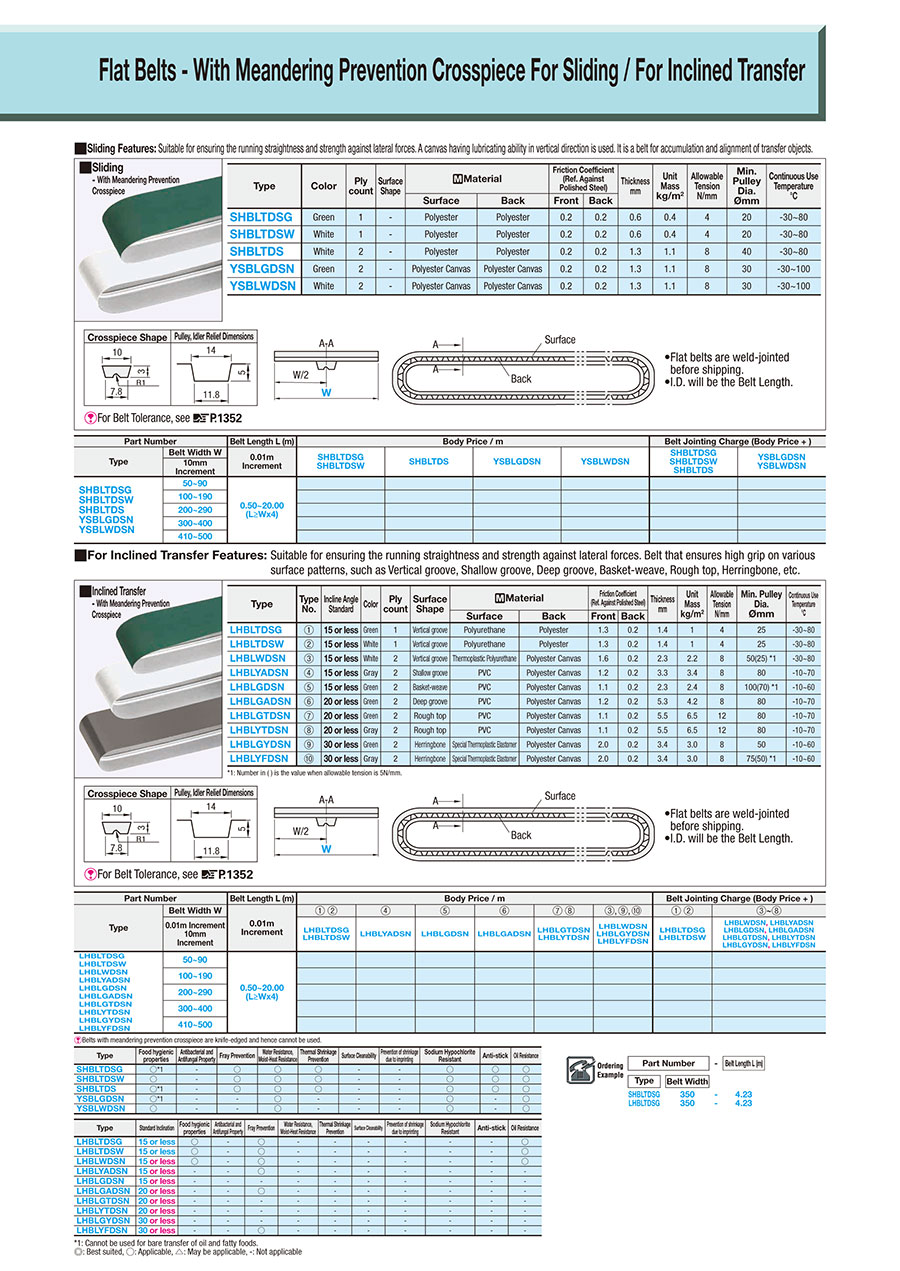

Belts With Meandering Prevention Crosspiece / For Inclined Transfer
Part number:
possible part numbers found.Outline drawing and specifications table
| Type | Type No. | Incline Angle Standard | Color | Ply count | Surface Shape | Material | Friction Coefficient (Ref. Against Polished Steel) | Thickness mm | Unit Mass kg/m2 | Allowable Tension N/mm | Min. Pulley Dia. Ømm | Continuous Use Temperature °C | ||
| Surface | Back | Front | Back | |||||||||||
| LHBLTDSG | 15 or less | Green | 1 | Vertical groove | Polyurethane | Polyester | 1.3 | 0.2 | 1.4 | 1 | 4 | 25 | -30~80 | |
| LHBLTDSW | 15 or less | White | 1 | Vertical groove | Polyurethane | Polyester | 1.3 | 0.2 | 1.4 | 1 | 4 | 25 | -30~80 | |
| LHBLWDSN | 15 or less | White | 2 | Vertical groove | Thermoplastic Polyurethane | Polyester Canvas | 1.6 | 0.2 | 2.3 | 2.2 | 8 | 50(25) *1 | -30~80 | |
| LHBLYADSN | 15 or less | Gray | 2 | Shallow groove | PVC | Polyester Canvas | 1.2 | 0.2 | 3.3 | 3.4 | 8 | 80 | -10~70 | |
| LHBLGDSN | 15 or less | Green | 2 | Basket-weave | PVC | Polyester Canvas | 1.1 | 0.2 | 2.3 | 2.4 | 8 | 100(70) *1 | -10~60 | |
| LHBLGADSN | 20 or less | Green | 2 | Deep groove | PVC | Polyester Canvas | 1.2 | 0.2 | 5.3 | 4.2 | 8 | 80 | -10~70 | |
| LHBLGTDSN | 20 or less | Green | 2 | Rough top | PVC | Polyester Canvas | 1.1 | 0.2 | 5.5 | 6.5 | 12 | 80 | -10~70 | |
| LHBLYTDSN | 20 or less | Gray | 2 | Rough top | PVC | Polyester Canvas | 1.1 | 0.2 | 5.5 | 6.5 | 12 | 80 | -10~70 | |
| LHBLGYDSN | 30 or less | Green | 2 | Herringbone | Special Thermoplastic Elastomer | Polyester Canvas | 2.0 | 0.2 | 3.4 | 3.0 | 8 | 50 | -10~60 | |
| LHBLYFDSN | 30 or less | Gray | 2 | Herringbone | Special Thermoplastic Elastomer | Polyester Canvas | 2.0 | 0.2 | 3.4 | 3.0 | 8 | 75(50) *1 | -10~60 | |
Specifications
| Part Number | - | Belt Length L (m) | ||
| Type | Belt Width | |||
| LHBLTDSG | 350 | - | 4.23 | |
| Part Number | Belt Length L (m) | Body Price / m | Belt Jointing Charge (Body Price + ) | |||||||
| Type | Belt Width W | 0.01m Increment | , , | ~ | ||||||
| 0.01m Increment 10mm Increment | LHBLTDSG LHBLTDSW | LHBLYADSN | LHBLGDSN | LHBLGADSN | LHBLGTDSN LHBLYTDSN | LHBLWDSN LHBLGYDSN LHBLYFDSN | LHBLTDSG LHBLTDSW | LHBLWDSN, LHBLYADSN LHBLGDSN, LHBLGADSN LHBLGTDSN, LHBLYTDSN LHBLGYDSN, LHBLYFDSN | ||
| LHBLTDSG LHBLTDSW LHBLWDSN LHBLYADSN LHBLGDSN LHBLGADSN LHBLGTDSN LHBLYTDSN LHBLGYDSN LHBLYFDSN | 50~90 | 0.50~20.00 (L≥Wx4) | ||||||||
| 100~190 | ||||||||||
| 200~290 | ||||||||||
| 300~400 | ||||||||||
| 410~500 | ||||||||||
Part number list
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
- ( - ) | 9 working days |
More Information
Outline and specifications
More Information
| Type | Standard Inclination | Food hygienic properties | Antibacterial and Antifungal Property | Fray Prevention | Water Resistance, Moist-Heat Resistance | Thermal Shrinkage Prevention | Surface Cleanability | Prevention of shrinkage due to imprinting | Sodium Hypochlorite Resistant | Anti-stick | Oil Resistance |
| LHBLTDSG | 15 or less | ○ | - | ○ | - | - | - | - | - | - | ○ |
| LHBLTDSW | 15 or less | ○ | - | ○ | - | - | - | - | - | - | ○ |
| LHBLWDSN | 15 or less | ○ | - | ○ | - | - | - | - | - | - | ○ |
| LHBLYADSN | 15 or less | - | - | ○ | - | - | - | - | - | - | - |
| LHBLGDSN | 15 or less | - | - | - | - | - | - | - | - | - | - |
| LHBLGADSN | 20 or less | - | - | ○ | - | - | - | - | - | - | - |
| LHBLGTDSN | 20 or less | - | - | - | - | - | - | - | - | - | - |
| LHBLYTDSN | 20 or less | - | - | - | - | - | - | - | - | - | - |
| LHBLGYDSN | 30 or less | - | - | - | - | - | - | - | - | - | - |
| LHBLYFDSN | 30 or less | - | - | ○ | - | - | - | - | - | - | - |
◎: Best suited, ○: Applicable, △: May be applicable, -: Not applicable
