Slot Pins for Inspection Components / Stepped / Straight

Material¹	Hardness	Type
Material¹	Hardness	S 0 -0.02	S_g6
EN 1.1191 Equiv.	-	KJPD	KJPGD
EN 1.1191 Equiv.	45HRC~	KJPDH	KJPGDH
EN 1.4301 Equiv.	-	KJPDS	KJPGDS
² EN 1.4037 Equiv.	45~50HRC	KJPDSC	KJPGDSC

S	g6
2.00~ 3.00	-0.002 -0.008
3.01~ 6.00	-0.004-0.012
6.01~10.00	-0.005-0.014
10.01~18.00	-0.006-0.017
18.01~30.00	-0.007-0.020

Part Number			0.01mm Increment		1mm Increment		M
Type		D	P	S(P>S)	L	B
(S 0 -0.02)	(Sg6)	D	P	S(P>S)	L	B
(EN 1.1191 Equiv.) KJPD (EN 1.1191 Equiv. Hardened) KJPDH (EN 1.4301 Equiv.) KJPDS (EN 1.4037 Equiv.) KJPDSC	(EN 1.1191 Equiv.) KJPGD (EN 1.1191 Equiv. Hardened) KJPGDH (EN 1.4301 Equiv.) KJPGDS (EN 1.4037 Equiv.) KJPGDSC	8	2.50~ 6.00	2.00~ 5.50	5~25 When P≤3.99, L≤Px4 For EN 1.4301 Equiv., L≤Px5	5~25 When S≤2.99, B≤Sx4 For EN 1.4301 Equiv., B≤Sx5	M4
		10	2.50~ 8.00	2.00~ 7.50			M5
		12	2.50~10.00	2.00~ 9.50			M5
		16	3.50~14.00	3.00~13.50			M5
		20	10.00~18.00	5.00~17.00			M5
		25	15.00~23.00	8.00~22.00			M5
		10L	10.00~16.00	5.00~15.00			M5
		12L	12.00~20.00	6.00~19.00			M5
		16L	16.00~25.00	8.00~24.00	(L+B≤50) For longer pins, Here.		M5
		20L	20.00~30.00	10.00~29.00	(L+B≤50) For longer pins, Here.		M5

[Steel] EN 1.1191 Equiv.	No Hardened	Small Head	0/-0.02	8	5 ～ 25	5 ～ 25	2 ～ 6	2 ～ 5.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Small Head	0/-0.02	10	5 ～ 25	5 ～ 25	2 ～ 8	2 ～ 7.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Large Head	0/-0.02	10	5 ～ 25	5 ～ 25	10 ～ 16	5 ～ 15	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Small Head	0/-0.02	12	5 ～ 25	5 ～ 25	2 ～ 10	2 ～ 9.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Large Head	0/-0.02	12	5 ～ 25	5 ～ 25	12 ～ 20	6 ～ 19	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Small Head	0/-0.02	16	5 ～ 25	5 ～ 25	3 ～ 14	3 ～ 13.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Large Head	0/-0.02	16	5 ～ 25	5 ～ 25	16 ～ 25	8 ～ 24	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Small Head	0/-0.02	20	5 ～ 25	5 ～ 35	10 ～ 18	5 ～ 17	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Large Head	0/-0.02	20	5 ～ 25	5 ～ 25	20 ～ 30	10 ～ 29	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Small Head	0/-0.02	25	5 ～ 25	5 ～ 25	15 ～ 23	8 ～ 22	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Small Head	0/-0.02	8	5 ～ 25	5 ～ 25	2 ～ 6	2 ～ 5.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Small Head	0/-0.02	10	5 ～ 25	5 ～ 25	2 ～ 8	2 ～ 7.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Large Head	0/-0.02	10	5 ～ 25	5 ～ 25	10 ～ 16	5 ～ 15	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Small Head	0/-0.02	12	5 ～ 25	5 ～ 25	2 ～ 10	2 ～ 9.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Large Head	0/-0.02	12	5 ～ 25	5 ～ 25	12 ～ 20	6 ～ 19	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Small Head	0/-0.02	16	5 ～ 25	5 ～ 25	3 ～ 14	3 ～ 13.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Large Head	0/-0.02	16	5 ～ 25	5 ～ 25	16 ～ 25	8 ～ 24	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Small Head	0/-0.02	20	5 ～ 25	5 ～ 25	10 ～ 18	5 ～ 17	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Large Head	0/-0.02	20	5 ～ 25	5 ～ 25	20 ～ 30	10 ～ 29	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Small Head	0/-0.02	25	5 ～ 25	5 ～ 25	15 ～ 23	8 ～ 22	10	1 pieces
[Stainless Steel] EN 1.4301 Equiv.	No Hardened	Small Head	0/-0.02	8	5 ～ 25	5 ～ 25	2.5 ～ 6	2 ～ 5.5	10	1 pieces
[Stainless Steel] EN 1.4301 Equiv.	No Hardened	Small Head	0/-0.02	10	5 ～ 25	5 ～ 25	2.5 ～ 8	2 ～ 7.5	10	1 pieces
[Stainless Steel] EN 1.4301 Equiv.	No Hardened	Small Head	0/-0.02	12	5 ～ 25	5 ～ 25	2 ～ 10	2 ～ 9.5	10	1 pieces
[Stainless Steel] EN 1.4301 Equiv.	No Hardened	Small Head	0/-0.02	16	5 ～ 25	5 ～ 25	3 ～ 14	3 ～ 13.5	10	1 pieces
[Stainless Steel] EN 1.4301 Equiv.	No Hardened	Small Head	0/-0.02	20	5 ～ 25	5 ～ 25	10 ～ 18	5 ～ 17	10	1 pieces
[Stainless Steel] EN 1.4301 Equiv.	No Hardened	Small Head	0/-0.02	25	5 ～ 25	5 ～ 25	15 ～ 23	8 ～ 22	10	1 pieces
[Stainless Steel] EN 1.4037 Equiv.	45 ~ 50HRC	Small Head	0/-0.02	8	5 ～ 25	5 ～ 25	2.5 ～ 6	2 ～ 5.5	10	1 pieces
[Stainless Steel] EN 1.4037 Equiv.	45 ~ 50HRC	Small Head	0/-0.02	10	5 ～ 25	5 ～ 25	2 ～ 8	2 ～ 7.5	10	1 pieces
[Stainless Steel] EN 1.4037 Equiv.	45 ~ 50HRC	Small Head	0/-0.02	12	5 ～ 25	5 ～ 25	2 ～ 10	2 ～ 9.5	10	1 pieces
[Stainless Steel] EN 1.4037 Equiv.	45 ~ 50HRC	Small Head	0/-0.02	16	5 ～ 25	5 ～ 25	3 ～ 14	3 ～ 13.5	10	1 pieces
[Stainless Steel] EN 1.4037 Equiv.	45 ~ 50HRC	Small Head	0/-0.02	20	5 ～ 25	5 ～ 25	10 ～ 18	5 ～ 17	10	1 pieces
[Stainless Steel] EN 1.4037 Equiv.	45 ~ 50HRC	Small Head	0/-0.02	25	5 ～ 25	5 ～ 25	15 ～ 23	8 ～ 22	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Small Head	g6	8	5 ～ 25	5 ～ 25	2 ～ 6	2 ～ 5.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Small Head	g6	10	5 ～ 25	5 ～ 25	2 ～ 8	2 ～ 7.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Large Head	g6	10	5 ～ 25	5 ～ 25	10 ～ 16	5 ～ 15	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Small Head	g6	12	5 ～ 25	5 ～ 25	2 ～ 10	2 ～ 9.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Large Head	g6	12	5 ～ 25	5 ～ 25	12 ～ 20	6 ～ 19	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Small Head	g6	16	5 ～ 25	5 ～ 25	3.5 ～ 14	3 ～ 13.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Large Head	g6	16	5 ～ 25	5 ～ 25	16 ～ 25	8 ～ 24	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Small Head	g6	20	5 ～ 25	5 ～ 25	10 ～ 18	5 ～ 17	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Large Head	g6	20	5 ～ 25	5 ～ 25	20 ～ 30	10 ～ 29	10	1 pieces
[Steel] EN 1.1191 Equiv.	No Hardened	Small Head	g6	25	5 ～ 25	5 ～ 25	15 ～ 23	8 ～ 22	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Small Head	g6	8	5 ～ 25	5 ～ 25	2.5 ～ 6	2 ～ 5.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Small Head	g6	10	5 ～ 25	5 ～ 25	2 ～ 8	2 ～ 7.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Small Head	g6	10	5 ～ 25	-	2 ～ 8	2 ～ 7.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Large Head	g6	10	5 ～ 25	5 ～ 25	10 ～ 16	5 ～ 15	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Small Head	g6	12	5 ～ 25	5 ～ 25	2 ～ 10	2 ～ 9.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Large Head	g6	12	5 ～ 25	5 ～ 25	12 ～ 20	6 ～ 19	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Small Head	g6	16	5 ～ 25	5 ～ 25	3 ～ 14	3 ～ 13.5	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Large Head	g6	16	5 ～ 25	5 ～ 25	16 ～ 25	8 ～ 24	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Small Head	g6	20	5 ～ 25	5 ～ 25	10 ～ 18	5 ～ 17	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Large Head	g6	20	5 ～ 25	5 ～ 25	20 ～ 30	10 ～ 29	10	1 pieces
[Steel] EN 1.1191 Equiv.	45HRC ~	Small Head	g6	25	5 ～ 25	5 ～ 25	15 ～ 23	8 ～ 22	10	1 pieces
[Stainless Steel] EN 1.4301 Equiv.	No Hardened	Small Head	g6	8	5 ～ 25	5 ～ 25	2.5 ～ 6	2 ～ 5.5	10	1 pieces
[Stainless Steel] EN 1.4301 Equiv.	No Hardened	Small Head	g6	10	5 ～ 25	5 ～ 25	2.5 ～ 8	2 ～ 7.5	10	1 pieces
[Stainless Steel] EN 1.4301 Equiv.	No Hardened	Small Head	g6	12	5 ～ 25	5 ～ 25	2.5 ～ 10	2 ～ 9.5	10	1 pieces
[Stainless Steel] EN 1.4301 Equiv.	No Hardened	Small Head	g6	16	5 ～ 25	5 ～ 25	3.5 ～ 14	3 ～ 13.5	10	1 pieces
[Stainless Steel] EN 1.4301 Equiv.	No Hardened	Small Head	g6	20	5 ～ 25	5 ～ 25	10 ～ 18	5 ～ 17	10	1 pieces
[Stainless Steel] EN 1.4301 Equiv.	No Hardened	Small Head	g6	25	5 ～ 25	5 ～ 25	15 ～ 23	8 ～ 22	10	1 pieces
[Stainless Steel] EN 1.4037 Equiv.	45 ~ 50HRC	Small Head	g6	8	5 ～ 25	5 ～ 25	2.5 ～ 6	2 ～ 5.5	10	1 pieces

- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days

Part Number (TYPE, D)	-	P	-	S	-	L	-	B
KJPD12	-	P8.03	-	S5.00	-	L5	-	B10

Slot Pins for Inspection Components / Stepped / Straight

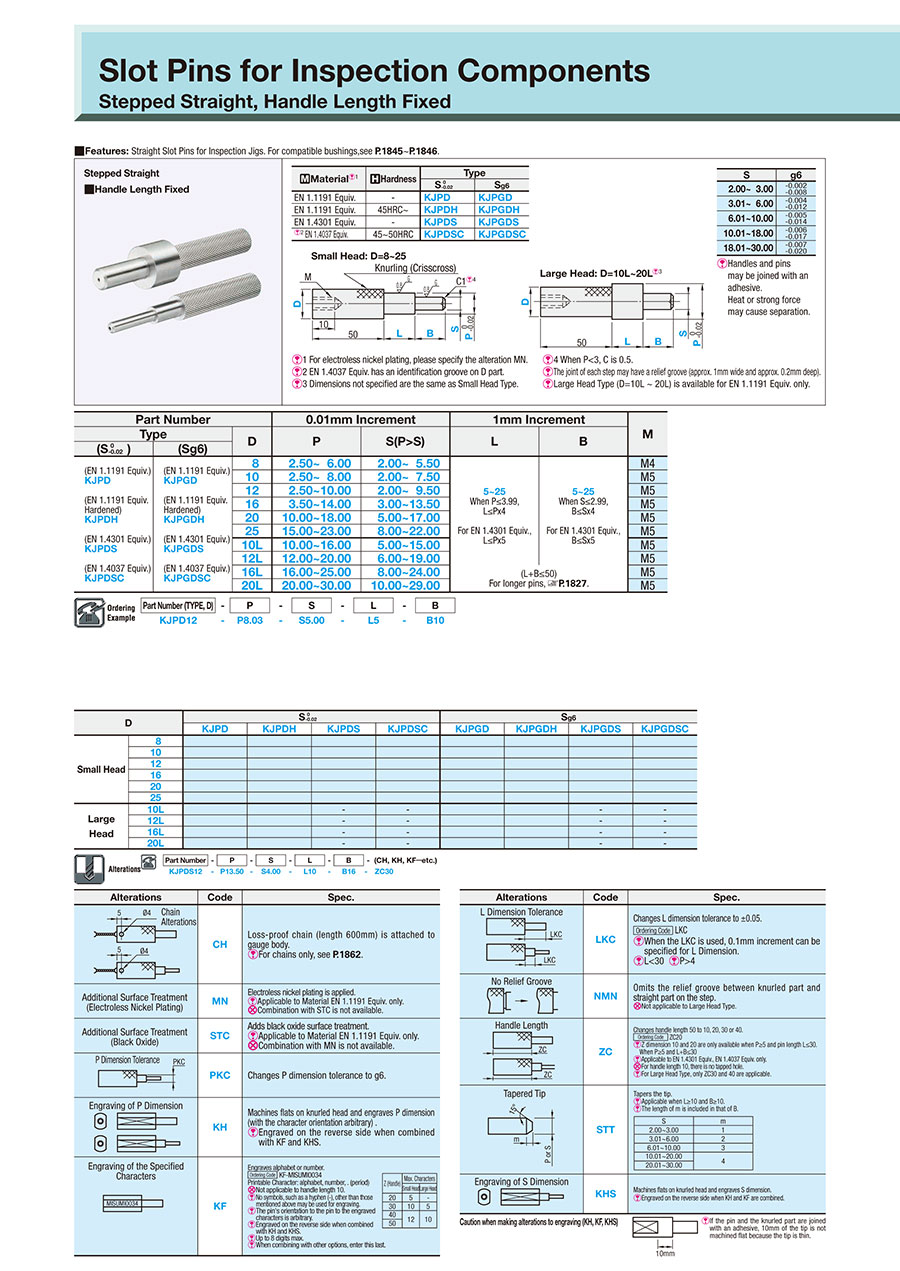

Outline drawing and specifications table
