          Locating Blocks for Inspection Components

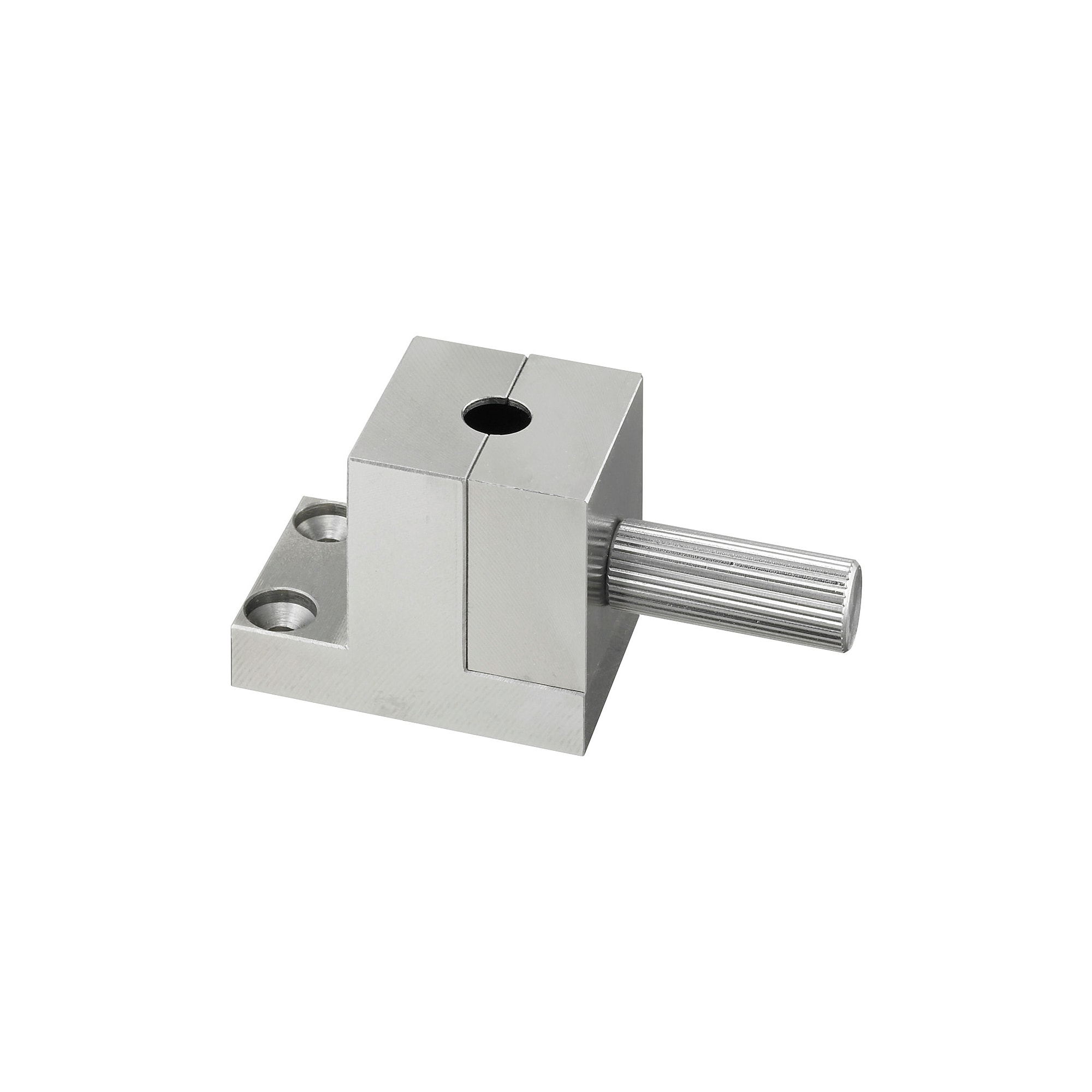

          Locating Blocks for Inspection Components

          Mouse over image to enlarge

          Part number:

          Still undefined. 2 possible part numbers found.
          Quantity:

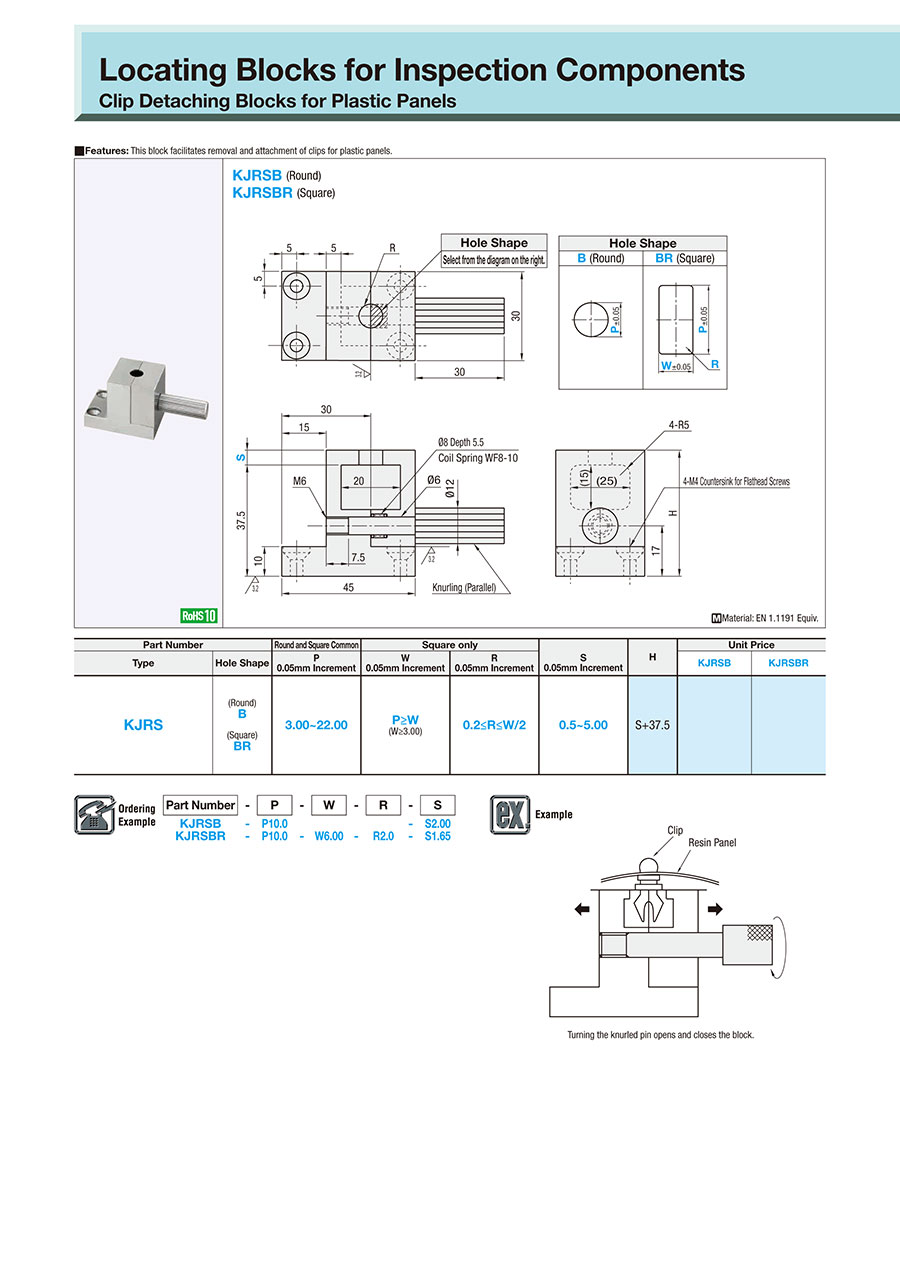

          Outline drawing and specifications table

          Hole Shape
          B (Round)BR (Square)
          KJRSB (Round)
          KJRSBR (Square)

          [M]Material: EN 1.1191 Equiv.


          Specification Table

          Part Number—P—W—R—S
          KJRSB
          KJRSBR          		—
          —          		P10.0
          P10.0
          —
          W6.00
          —
          R2.0          		—
          —          		S2.00
          S1.65
          Part NumberRound and Square CommonSquare onlyS
          0.05 mm Increments          		H
          TypeHole ShapeP
          0.05 mm Increments          		W
          0.05 mm Increments          		R
          0.05 mm Increments
          KJRS(Round)
          B

          (Square)
          BR          		3.00 to 22.00P ≥ W
          (W ≥ 3.00)          		0.2 ≤ R ≤ W/20.5 to 5.00S+37.5

          Part number list

          Number of items
        • 1
          • Part number
          KJRSB-P[3-22/0.05]-S[0.5-5/0.05]
          KJRSBR-P[3-22/0.05]-W[3-22/0.05]-R[0.2-11/0.1]-S[0.5-5/0.05]

          Hole Shape

          W

          (mm)

          P

          (mm)

          R

          (mm)

          S

          (mm)

          		RoHS?Minimum order quantity
          Round
          -
          3 ～ 22
          -
          0.5 ～ 5
          10
          1 pieces
          Square
          3 ～ 22
          3 ～ 22
          0.2 ～ 11
          0.5 ～ 5
          10
          1 pieces
          Unit price (excluding VAT)(Unit price including VAT)
          Standard shipping days
          -
          ( - )
          10 working days
          -
          ( - )
          10 working days
        • 1

          • More Information

          Basic information

          [Features] This block facilitates the attachment and removal of clamps for resin panels.

          Outline and specifications

          App. Example


          Turning the knurled pin opens and closes the block.
