Flat Air Nozzles / Amplify / Resin
Mouse over image to enlarge
- Unit price (excl. VAT)
- 15.75 €
- Total (excl. VAT)
- 15.75 €Price including VAT: 18.74 €
- Expected shipping days
- Stock item: 1 working dayExpected shipping date: 05.05.2025
| Quantity | 1 - 26 | 27 - 200 | 201+ |
|---|---|---|---|
| Unit price (excluding VAT) (Unit price including VAT) | 15.75 € (18.74 €) | 15.75 € (18.74 €) | 6.93 € (8.25 €) |
| Shipping days | Same day | Quote | Quote |
- * Information on days to ship, shipping costs and prices

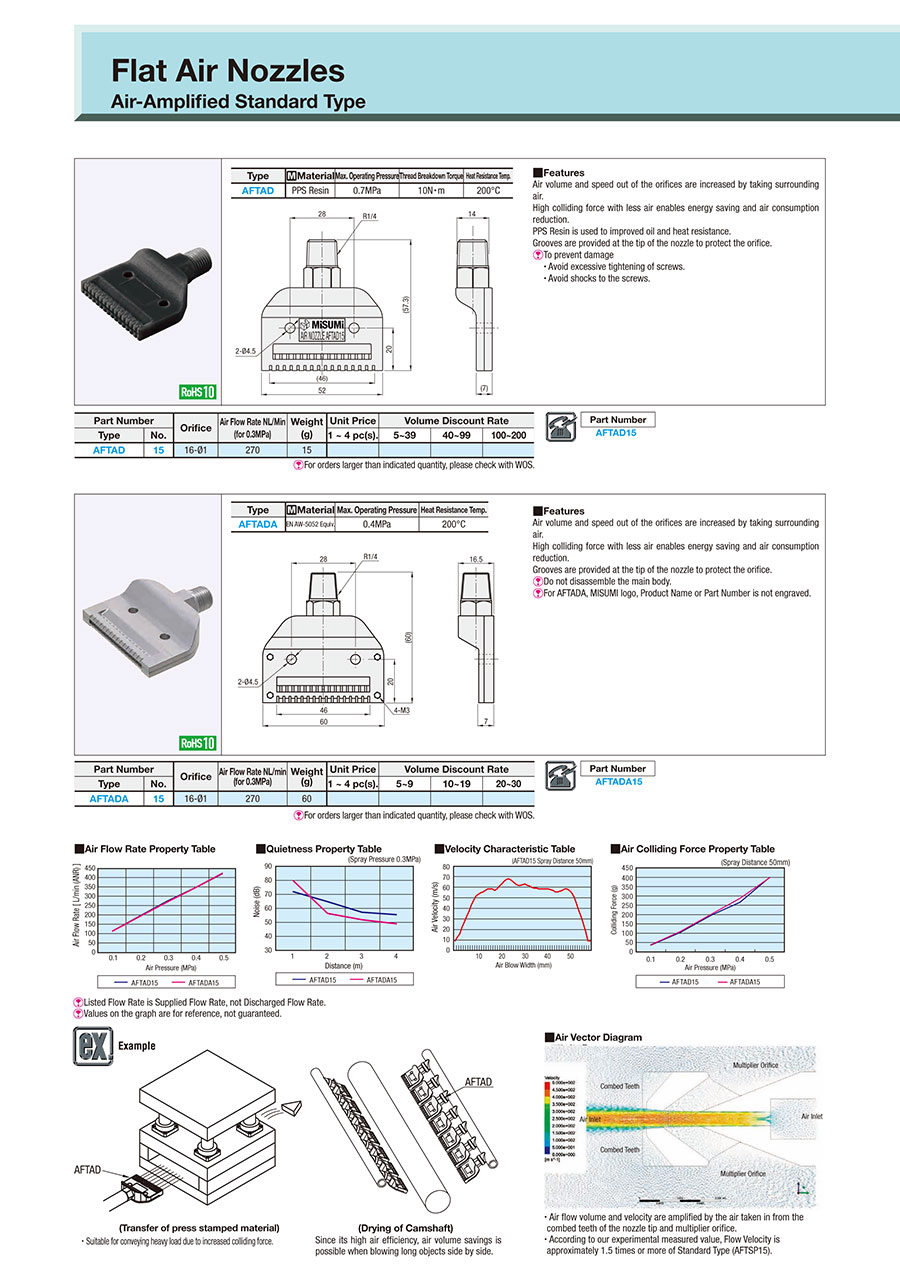

Outline drawing and specifications table
| Type | Material | Max. Operating Pressure | Thread Breakdown Torque | Heat Resistance Temp. |
| AFTAD | PPS Resin | 0.7MPa | 10N • m | 200°C |
Specifications
| Part Number |
| AFTAD15 |
| Part Number | Orifice | Air Flow Rate NL/Min (for 0.3MPa) | Weight (g) | Unit Price | Volume Discount Rate | |||
| Type | No. | 1 ~ 4 pc(s). | 5~39 | 40~99 | 100~200 | |||
| AFTAD | 15 | 16-Ø1 | 270 | 15 | ||||
