Holders / Bottom Mount / Flange
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers

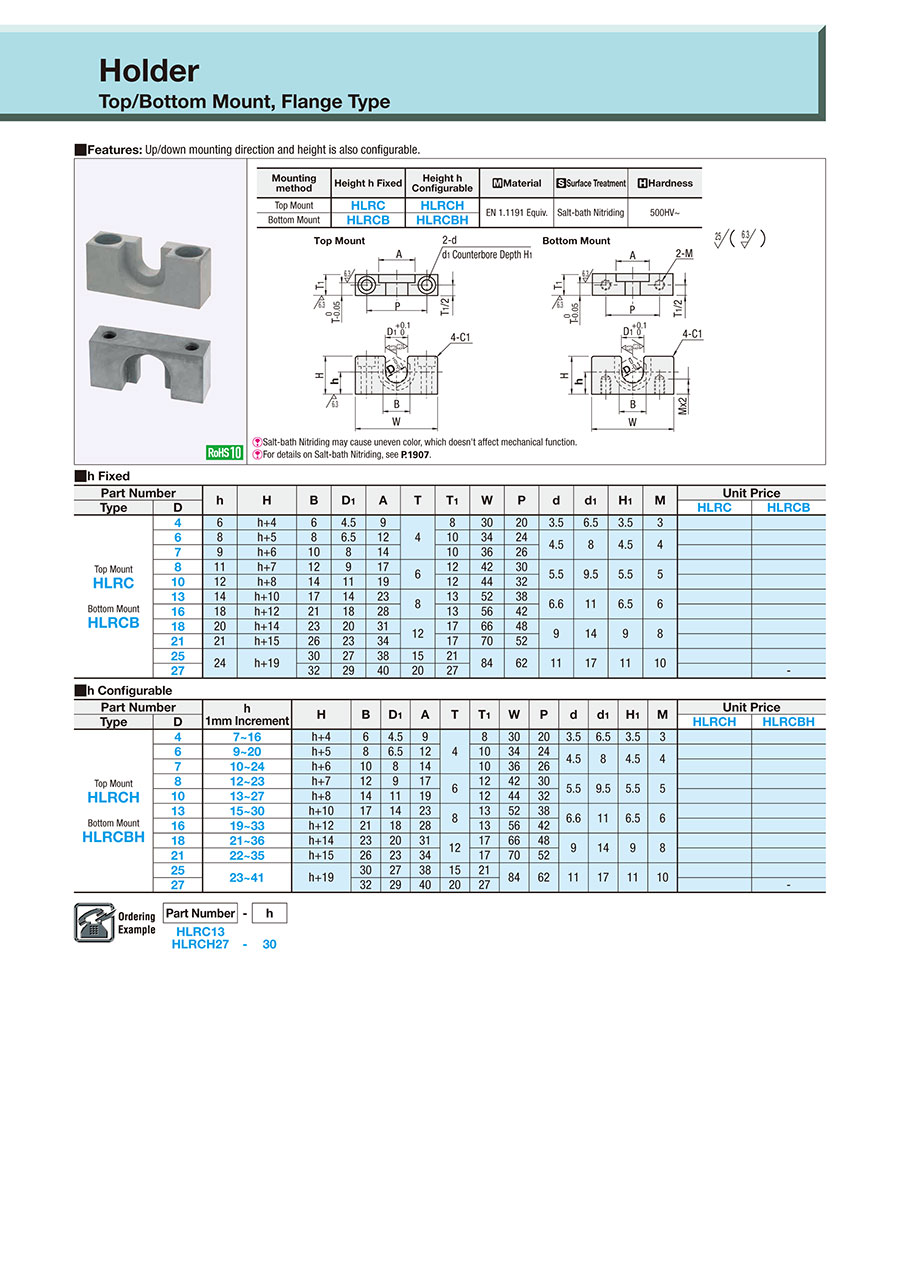

- Catalog
| Mounting method | Height h Fixed | Height h Configurable | Material | Surface Treatment | Hardness |
| Bottom Mount | HLRCB | HLRCBH | EN 1.1191 Equiv. | Salt-bath Nitriding | 500HV~ |
Specifications
| Part Number | - | h |
| HLRCB13 HLRCBH25 | - | 30 |
| Part Number | h | H | B | D1 | A | T | T1 | W | P | M | |
| Type | D | ||||||||||
| Bottom Mount HLRCB | 4 | 6 | h+4 | 6 | 4.5 | 9 | 4 | 8 | 30 | 20 | 3 |
| 6 | 8 | h+5 | 8 | 6.5 | 12 | 4 | 10 | 34 | 24 | 4 | |
| 7 | 9 | h+6 | 10 | 8 | 14 | 4 | 10 | 36 | 26 | 4 | |
| 8 | 11 | h+7 | 12 | 9 | 17 | 6 | 12 | 42 | 30 | 5 | |
| 10 | 12 | h+8 | 14 | 11 | 19 | 6 | 12 | 44 | 32 | 5 | |
| 13 | 14 | h+10 | 17 | 14 | 23 | 8 | 13 | 52 | 38 | 6 | |
| 16 | 18 | h+12 | 21 | 18 | 28 | 8 | 13 | 56 | 42 | 6 | |
| 18 | 20 | h+14 | 23 | 20 | 31 | 12 | 17 | 66 | 48 | 8 | |
| 21 | 21 | h+15 | 26 | 23 | 34 | 12 | 17 | 70 | 52 | 8 | |
| 25 | 24 | h+19 | 30 | 27 | 38 | 15 | 21 | 84 | 62 | 10 | |
■h Configurable
| Part Number | h 1mm Increment | H | B | D1 | A | T | T1 | W | P | M | |
| Type | D | ||||||||||
| Bottom Mount HLRCBH | 4 | 7~16 | h+4 | 6 | 4.5 | 9 | 4 | 8 | 30 | 20 | 3 |
| 6 | 9~20 | h+5 | 8 | 6.5 | 12 | 4 | 10 | 34 | 24 | 4 | |
| 7 | 10~24 | h+6 | 10 | 8 | 14 | 4 | 10 | 36 | 26 | 4 | |
| 8 | 12~23 | h+7 | 12 | 9 | 17 | 6 | 12 | 42 | 30 | 5 | |
| 10 | 13~27 | h+8 | 14 | 11 | 19 | 6 | 12 | 44 | 32 | 5 | |
| 13 | 15~30 | h+10 | 17 | 14 | 23 | 8 | 13 | 52 | 38 | 6 | |
| 16 | 19~33 | h+12 | 21 | 18 | 28 | 8 | 13 | 56 | 42 | 6 | |
| 18 | 21~36 | h+14 | 23 | 20 | 31 | 12 | 17 | 66 | 48 | 8 | |
| 21 | 22~35 | h+15 | 26 | 23 | 34 | 12 | 17 | 70 | 52 | 8 | |
| 25 | 23~41 | h+19 | 30 | 27 | 38 | 15 | 21 | 84 | 62 | 10 | |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Type | Applicable Cylinder Rod Thread Dia. D (Ø) | Mounting Height h (mm) | |
|---|---|---|---|---|---|---|---|---|
8.35 € | 1 | Available | 7 Days | 10 | h Selectable | 4 | 6 | |
8.99 € | 1 | Available | 7 Days | 10 | h Selectable | 6 | 8 | |
9.62 € | 1 | Available | 7 Days | 10 | h Selectable | 7 | 9 | |
10.00 € | 1 | Available | 7 Days | 10 | h Selectable | 8 | 11 | |
10.25 € | 1 | Available |
Same day
Stock | 10 | h Selectable | 10 | 12 | |
12.65 € | 1 | Available | 7 Days | 10 | h Selectable | 13 | 14 | |
14.05 € | 1 | Available | 7 Days | 10 | h Selectable | 16 | 18 | |
14.30 € | 1 | Available | 7 Days | 10 | h Selectable | 18 | 20 | |
16.70 € | 1 | Available | 7 Days | 10 | h Selectable | 21 | 21 | |
20.36 € | 1 | Available | 7 Days | 10 | h Selectable | 25 | 24 | |
- | 1 | 9 Days | 10 | h Configurable (1mm Increment) | 4 | 7 ～ 16 | ||
- | 1 | 9 Days | 10 | h Configurable (1mm Increment) | 6 | 9 ～ 20 | ||
- | 1 | 9 Days | 10 | h Configurable (1mm Increment) | 7 | 10 ～ 24 | ||
- | 1 | 9 Days | 10 | h Configurable (1mm Increment) | 8 | 12 ～ 23 | ||
- | 1 | 9 Days | 10 | h Configurable (1mm Increment) | 10 | 13 ～ 27 | ||
- | 1 | 9 Days | 10 | h Configurable (1mm Increment) | 13 | 15 ～ 30 | ||
- | 1 | 9 Days | 10 | h Configurable (1mm Increment) | 16 | 19 ～ 33 | ||
- | 1 | 9 Days | 10 | h Configurable (1mm Increment) | 18 | 21 ～ 36 | ||
- | 1 | 9 Days | 10 | h Configurable (1mm Increment) | 21 | 22 ～ 35 | ||
- | 1 | 9 Days | 10 | h Configurable (1mm Increment) | 25 | 23 ～ 41 |
Loading...
Basic information
| Cylinder Connector Details | Holder Single Item | Surface Treatment | Salt-bath Nitriding |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Type
- h Configurable (1mm Increment)
- h Selectable
-
Applicable Cylinder Rod Thread Dia. D(Ø)
-
Mounting Height h(mm)
-
Type
- HLRCB
- HLRCBH
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 7 Days or Less
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
