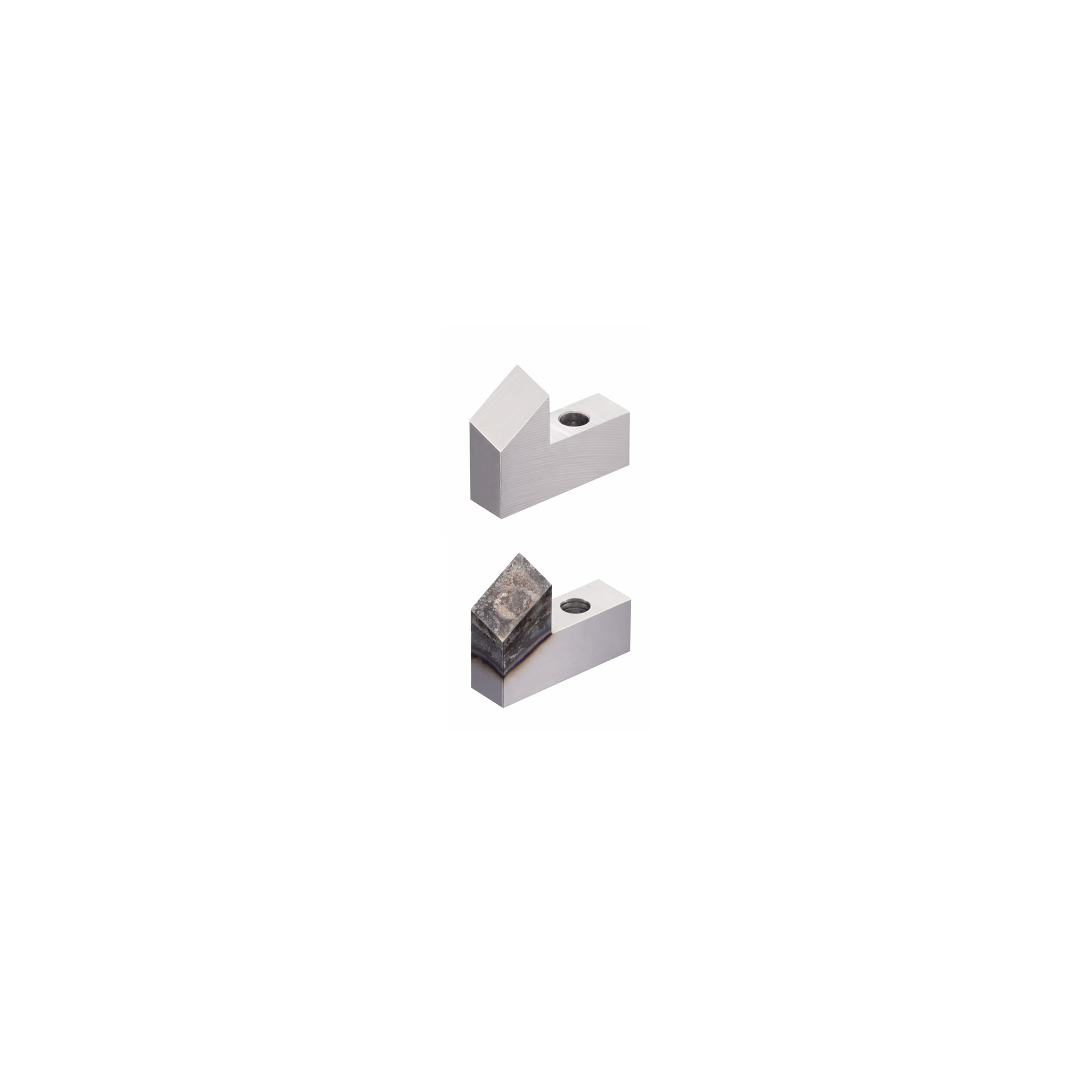

Locators (Both Axes Inclined) One Hole Type
Mouse over image to enlarge
Part number:

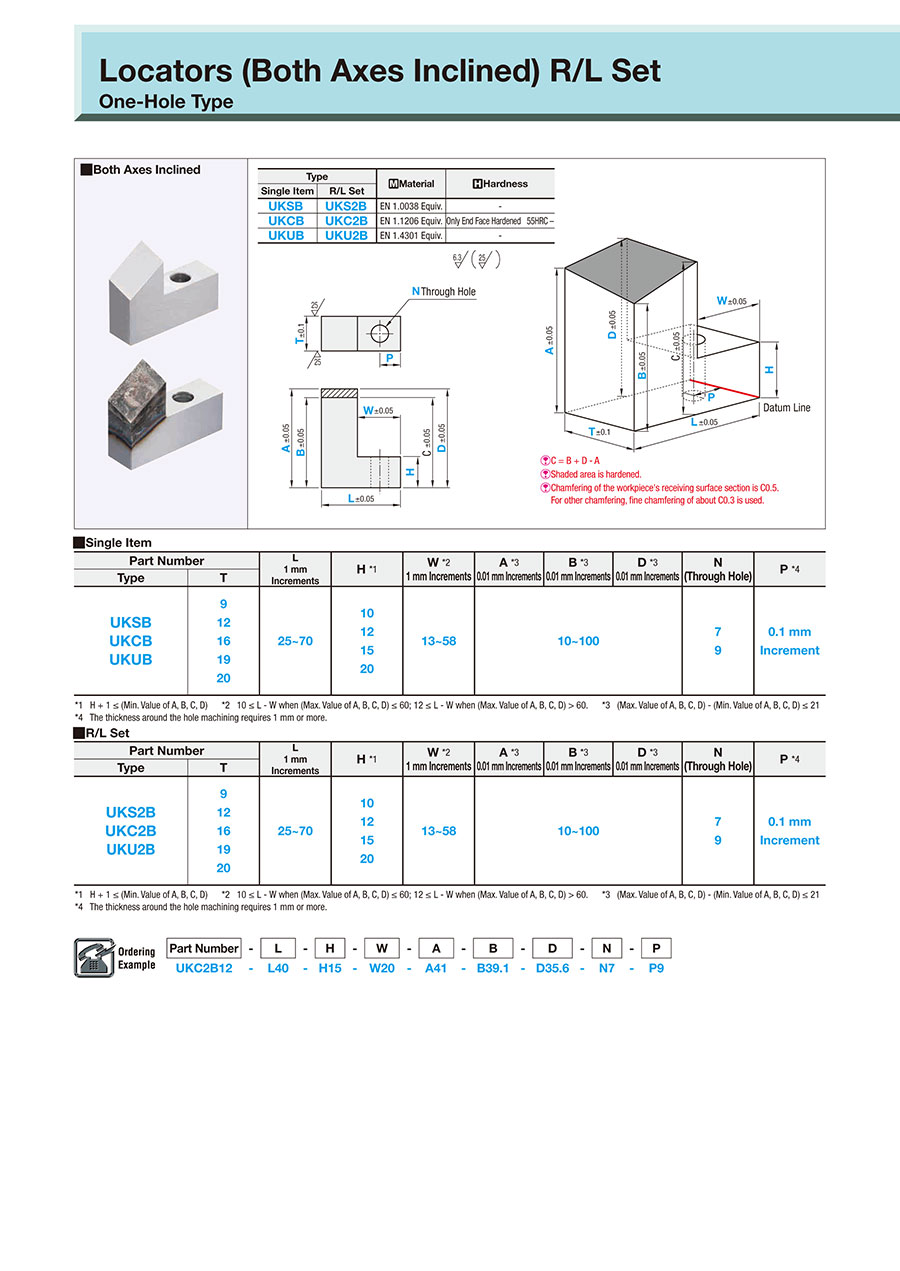

possible part numbers found.Outline drawing and specifications table
[ ! ]C = B+D－A
[!]Height dimensional accuracy is a program guarantee of machining to the standard.
[!]The shaded area is the hardened area.
[!]The chamfer on the workpiece receiving surface is C0.5. The other chamfers will be slight chamfering of approximately C0.3.
[ ! ] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m.
| Type | [M] Material | [ H ] Hardness | |
| Single Item | R/L Set | ||
| UKSB | UKS2B | EN 1.0038 Equiv. | — |
| UKCB | UKC2B | EN 1.1206 Equiv. | Partially hardened only at the tip 55HRC or higher |
| UKUB | UKU2B | EN 1.4301 Equiv. | — |
Specification Table
| Part Number | — | L | — | H | — | W | — | A | — | B | — | D | — | N | — | P |
| UKC2B12 | — | L40 | — | H15 | — | W20 | — | A41 | — | B39.1 | — | D35.6 | — | N7 | — | P9 |
■ Single Item
| Part Number | L Configurable 1 mm Increments | H Selection *1 | W Configurable *2 1 mm Increments | A Specification *3 0.01 mm Increments | B Specification *3 0.01 mm Increments | D Specification *3 0.01 mm Increments | N Selection (Through Hole) | P Configurable *4 | |
| Type | T Selection | ||||||||
| UKSB UKCB UKUB | 9 12 16 19 20 | 25 to 70 | 10 12 15 20 | 13 to 58 | 10 to 100 | 7 9 | Configurable 0.1 mm Unit | ||
* 1 H+1 ≤ (Min. value of A, B, C, D)
* 2 When (max. value of A, B, C, D) ≤ 60, 10 ≤ L-W; When (max. value of A, B, C, D) > 60, 12 ≤ L-W.
* 3 (Max. value of A, B, C, D) - (Min. value of A, B, C, D) ≤ 21
* 4 A minimum wall thickness of 1 mm is required around the hole machining.
■ R/L Set
| Part Number | L Configurable 1 mm Increments | H Selection *1 | W Configurable *2 1 mm Increments | A Specification *3 0.01 mm Increments | B Specification *3 0.01 mm Increments | D Specification *3 0.01 mm Increments | N Selection (Through Hole) | P Configurable *4 | |
| Type | T Selection | ||||||||
| UKS2B UKC2B UKU2B | 9 12 16 19 20 | 25 to 70 | 10 12 15 20 | 13 to 58 | 10 to 100 | 7 9 | Configurable 0.1 mm Unit | ||
* 1 H+1 ≤ (Min. value of A, B, C, D)
* 2 When (max. value of A, B, C, D) ≤ 60, 10 ≤ L-W; When (max. value of A, B, C, D) > 60, 12 ≤ L-W.
* 3 (Max. value of A, B, C, D) - (Min. value of A, B, C, D) ≤ 21
* 4 A minimum wall thickness of 1 mm is required around the hole machining.
Alterations
| Alterations Code | Alteration details | Applicable conditions | Ordering example | |||||||||||||||
| Change hole type | M | Tapped Hole | Change the through hole (N) to a tapped hole. ·M6/M8 Ordering Code: N7→M6 | - | UKC2B12-L40-H15-W20-A41.01-B39.01-D23.01-M6-P9 | [ ! ] A minimum wall thickness of 1 mm is required around the holes machining for the alteration described on the left. | ||||||||||||
| Z | Counterbored Hole | Changes Through Hole (N) to Counterbored Hole. ·Z6/Z8 Ordering Code: N9→Z8
| [!]Only applicable to T = 16, 19, 20 | UKCB16-L40-H15-W20-A41.01-B39.01-D23.01-Z6-P9 | ||||||||||||||
| ZG | Counterbored Hole (For spring washer) | Changed Through Hole (N) to Counterbored Hole (for Spring Washer). ·ZG6/ZG8 Ordering Code: N9→ZG8
| [!]Only applicable to T = 16, 19, 20 | UKCB16-L40-H15-W20-A41.01-B39.01-D23.01-ZG6-P9 | ||||||||||||||
| Add Hole Type | MB | Tapped Hole | Tapped Hole on the bottom of the receiving surface. ·MB6/MB8 ·J dimension = 0.1 mm Increments Ordering Code: MB6-J33 | [NG] Tapped holes cannot be added within the W dimension range. [NG] Combination with LPH/K is not possible. | UKCB12-L40-H15-W20-A41.01-B39.01-D23.01-N7-P9-MB6-J33 | |||||||||||||
| K | Add dowel hole | Dowel hole on the bottom of the receiver. ·K6/K8 ·E dimension = 0.1 mm Increments Ordering Code: K6-E33 | [NG] Tapped holes cannot be added within the W dimension range. [NG] Combination with LPH/MB is not possible. | UKCB12-L40-H15-W20-A41.01-B39.01-D23.01-N7-P9-K6-E33 | ||||||||||||||
| CA/ CB/ CC/ CD/ CT | Chamfer | Chamfer the receiving surface or bottom surface. ·Chamfer Location: Please select the required location from CA/CB/CC/CD/CT. ·Chamfer width specified: Specify 1, 3, 5 or 10. Ordering Code: CA5 | - | UKC2B12-L40-H15-W20-A41.01-B39.01-D23.01-N7-P9-CA3-CB3 | ||||||||||||||
| LPH | Through hole machining for locating pin | A through hole for locating pin has been added to the shaded area of the diagram, which includes the receiving surface of the workpiece. ·LPH = ø6 to ø14 0.5 mm Increments ·X dimension = 0.1 mm increments Ordering Code: LPH7-X33 | [ ! ] If the height of the receiving surface is greater than (ø × 8), misalignment within 0.2 mm will occur. [NG] Combination with MB/K is not possible. | UKCB12-L40-H15-W20-A41.01-B39.01-D23.01-N7-P9-LPH7-X33 | ||||||||||||||
| ZKC | Height accuracy | Changed the tolerance of A, B, C, and D dimensions to ±0.03. Ordering Code: ZKC | - | UKCB12-L40-H15-W20-A41.01-B39.01-D23.01-N7-P9-ZKC | ||||||||||||||
| MR | Reversed | You will receive the reversed type of specified part number. Ordering Code: MR | [ ! ] Only the reversed type will be delivered. [ ! ] The chamfer location is also on the reversed side. | UKCB12-L40-H15-W20-A41.01-B39.01-D23.01-N7-P9-MR | ||||||||||||||
| VK | Marking (V Groove) | Add a marking line V groove to the receiving surface. ·V groove is 0.5 mm wide and 0.2 mm deep ·They are evenly spaced across the length/width of the receiving surface. Ordering Code: VK | [ ! ] The width tolerance is ±0.2 and the depth tolerance is ±0.1. | UKC2B12-L40-H15-W20-A41.01-B39.01-D23.01-N7-P9-VK | ||||||||||||||
Part number list
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
- ( - ) | 8 working days |
More Information
Basic information
[Features] Shape of mounting surface: slope in both directions, mounting holes: This is a 1-circle positioning block.
