Locators (Vertically Inclined) Two Dowel Holes and Two Through Holes Type
Part number:

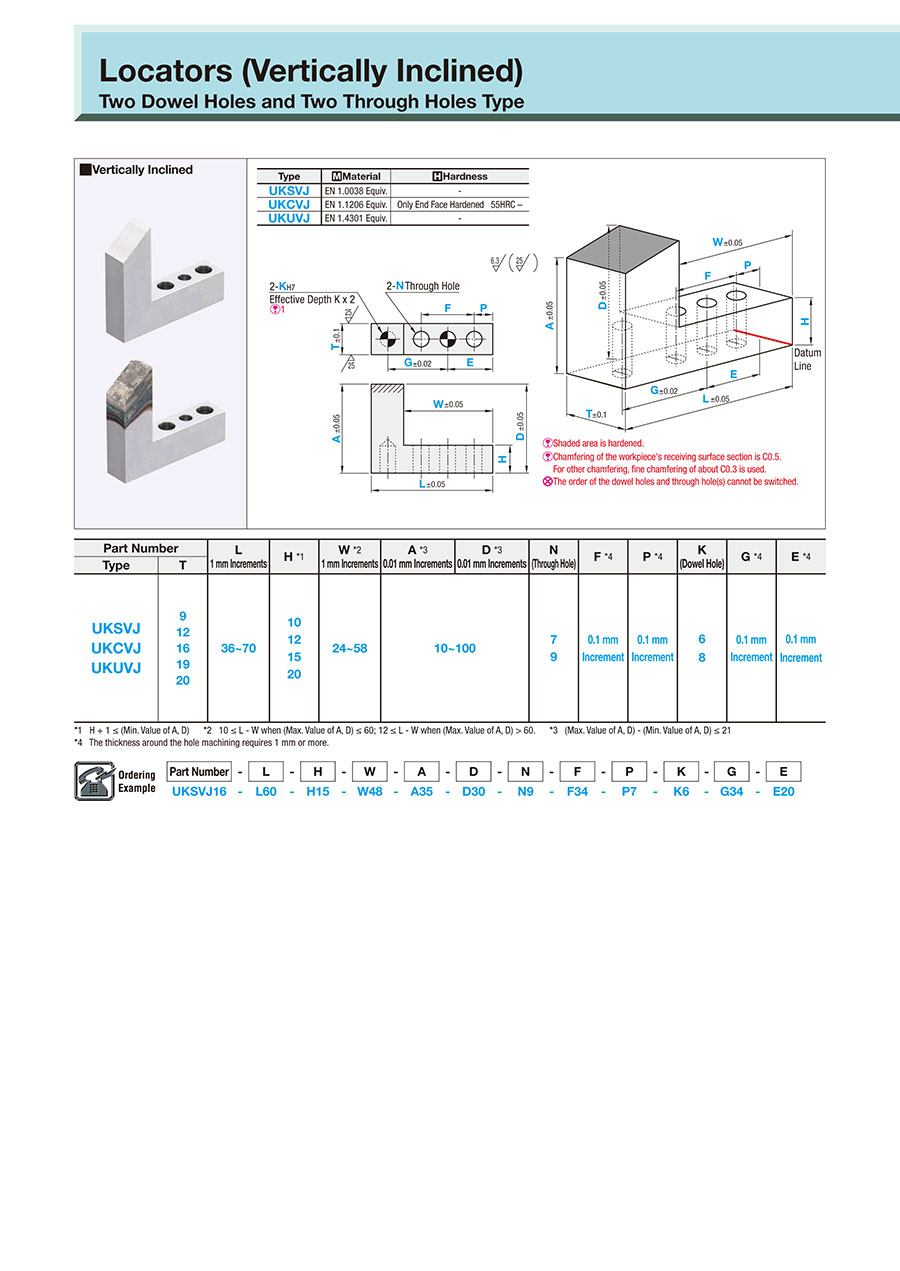

possible part numbers found.Outline drawing and specifications table
[ ! ]1
[!]The shaded area is the hardened area.
[!]The chamfer on the workpiece receiving surface is C0.5. The other chamfers will be slight chamfering of approximately C0.3.
[NG] The order of dowel holes and through holes cannot be changed.
[ ! ] 1 KH7 (dowel hole) in the W dimension range is a through hole.
[ ! ] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m.
| Type | [M] Material | [ H ] Hardness |
| UKSVJ | EN 1.0038 Equiv. | — |
| UKCVJ | EN 1.1206 Equiv. | Partially hardened only at the tip 55HRC or higher |
| UKUVJ | EN 1.4301 Equiv. | — |
Specification Table
| Part Number | — | L | — | H | — | W | — | A | — | D | — | N | — | F | — | P | — | K | — | G | — | E |
| UKSVJ16 | — | L60 | — | H15 | — | W48 | — | A35 | — | D30 | — | N9 | — | F34 | — | P7 | — | K6 | — | G34 | — | E20 |
| Part Number | L Configurable 1 mm Increments | H Selection *1 | W Configurable *2 1 mm Increments | A Specification *3 0.01 mm Increments | D Specification *3 0.01 mm Increments | N Selection (Through Hole) | F Specification *4 | P Configurable *4 | K Selection (Dowel Hole) | G Specification *4 | E Specification *4 | |
| Type | T Selection | |||||||||||
| UKSVJ UKCVJ UKUVJ | 9 12 16 19 20 | 36 to 70 | 10 12 15 20 | 24 to 58 | 10 to 100 | 7 9 | Configurable 0.1 mm Unit | Configurable 0.1 mm Unit | 6 8 | Configurable 0.1 mm Unit | Configurable 0.1 mm Unit | |
* 1 H+1 ≤ (Min. Value of A, D)
* 2 When (max. value of A, D) ≤ 60, 10 ≤ L-W; when (max. value of A, D) > 60, 12 ≤ L-W.
* 3 (Max. value of A, D) - (Min. value of A, D) ≤ 21
* 4 A minimum wall thickness of 1 mm is required around the hole machining.
Alterations
| Alterations Code | Alteration details | Applicable conditions | Ordering example | |||||||||||||||
| Change hole type | M | Tapped Hole | Changed both through holes (N) to tapped holes. ·M6/M8 Ordering Code: N7→M6 | - | UKSVJ16-L60-H15-W48-A35.01-D30.01-M8-F34-P7-K6-G34-E20 | [ ! ] A minimum wall thickness of 1 mm is required around the holes machining for the alteration described on the left. | ||||||||||||
| Z | Counterbored Hole | Changed both through holes (N) to counterbored holes. ·Z6/Z8 Ordering Code: N9→Z8
| [!]Only applicable to T = 16, 19, 20 | UKSVJ16-L60-H15-W48-A35.01-D30.01-Z6-F34-P7-K6-G34-E20 | ||||||||||||||
| ZG | Counterbored Hole (For spring washer) | Changed both through holes (N) to counterbored holes (for spring washers). ·ZG6/ZG8 Ordering Code: N9→ZG8
| [!]Only applicable to T = 16, 19, 20 | UKSVJ16-L60-H15-W48-A35.01-D30.01-ZG6-F34-P7-K6-G34-E20 | ||||||||||||||
| CA/ CB/ CC/ CD/ CT | Chamfer | Chamfer the receiving surface or bottom surface. ·Chamfer Location: Please select the required location from CA/CB/CC/CD/CT. ·Chamfer width specified: Specify 1, 3, 5 or 10. Ordering Code: CA5 | - | UKSVJ16-L60-H15-W48-A35.01-D30.01-N7-F34-P7-K6-G34-E20-CA1-CC1 | ||||||||||||||
| ZKC | Height accuracy | Changed the tolerance of A and D dimensions to ±0.03. Ordering Code: ZKC | - | UKSVJ16-L60-H15-W48-A35.01-D30.01-N7-F34-P7-K6-G34-E20-ZKC | ||||||||||||||
| VK | Marking (V Groove) | Add a marking line V groove to the receiving surface. ·V groove is 0.5 mm wide and 0.2 mm deep ·They are evenly spaced across the length/width of the receiving surface. Ordering Code: VK | [ ! ] The width tolerance is ±0.2 and the depth tolerance is ±0.1. | UKSVJ16-L60-H15-W48-A35.01-D30.01-N7-F34-P7-K6-G34-E20-VK | ||||||||||||||
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
- ( - ) | 13 working days |
More Information
Basic information
[Features] Shape of mounting surface: longitudinal slope, fixing holes: This is a mounting block with 2 dowel holes and 2 through holes.
