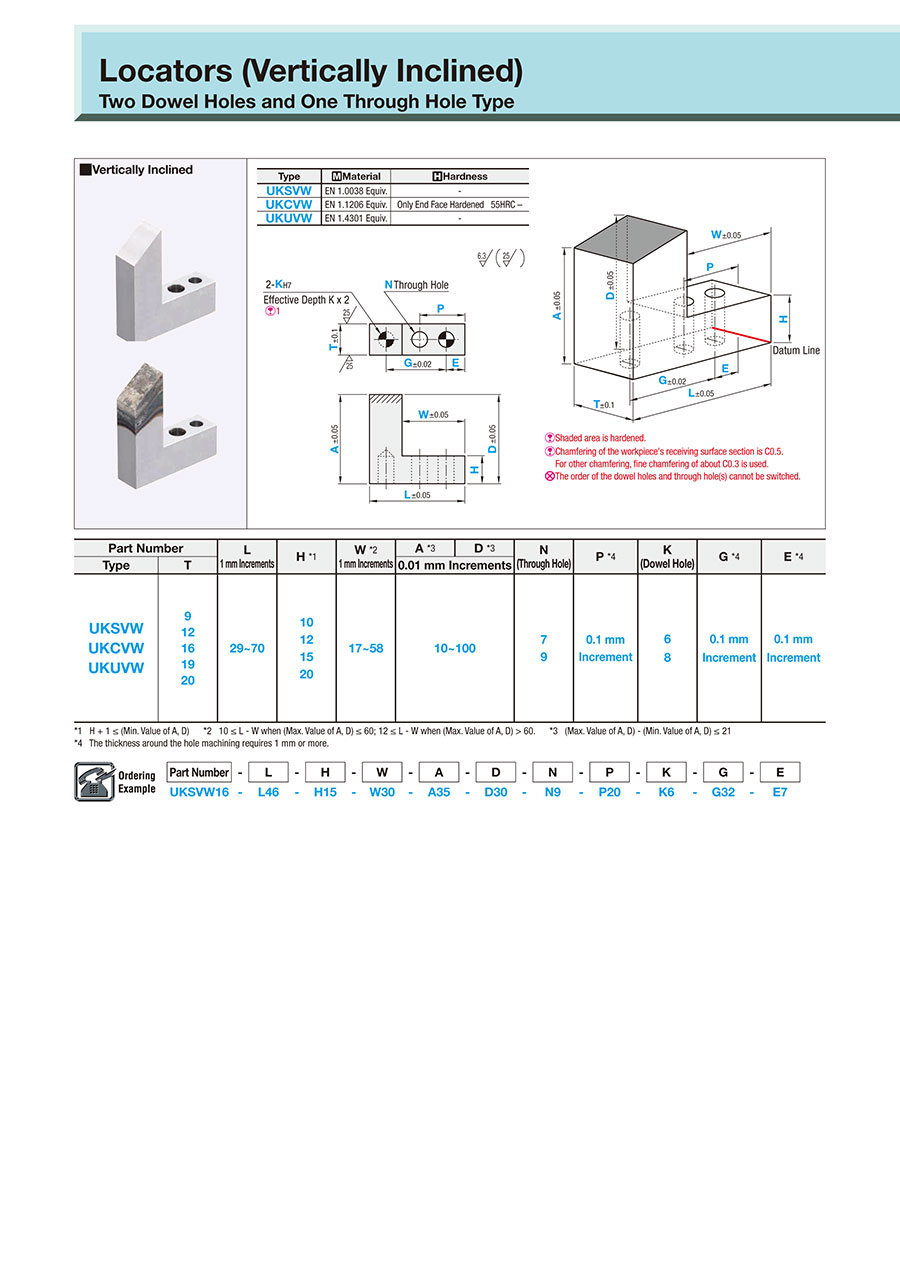

Locators (Vertically Inclined) Two Dowel Holes and One Through Hole Type
Part number:
possible part numbers found.Outline drawing and specifications table
[ ! ]1
[!]The shaded area is the hardened area.
[!]The chamfer on the workpiece receiving surface is C0.5. The other chamfers will be slight chamfering of approximately C0.3.
[NG] The order of dowel holes and through holes cannot be changed.
[ ! ] 1 KH7 (dowel hole) in the W dimension range is a through hole.
[ ! ] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m.
| Type | [M] Material | [ H ] Hardness |
| UKSVW | EN 1.0038 Equiv. | — |
| UKCVW | EN 1.1206 Equiv. | Partially hardened only at the tip 55HRC or higher |
| UKUVW | EN 1.4301 Equiv. | — |
Specification Table
| Part Number | — | L | — | H | — | W | — | A | — | D | — | N | — | P | — | K | — | G | — | E |
| UKSVW16 | — | L46 | — | H15 | — | W30 | — | A35 | — | D30 | — | N9 | — | P20 | — | K6 | — | G32 | — | E7 |
| Part Number | L Configurable 1 mm Increments | H Selection *1 | W Configurable *2 1 mm Increments | A Specification *3 | D Specification *3 | N Selection (Through Hole) | P Configurable *4 | K Selection (Dowel Hole) | G Specification *4 | E Specification *4 | |
| Type | T Selection | 0.01 mm Increments | |||||||||
| UKSVW UKCVW UKUVW | 9 12 16 19 20 | 29 to 70 | 10 12 15 20 | 17 to 58 | 10 to 100 | 7 9 | Configurable 0.1 mm Unit | 6 8 | Configurable 0.1 mm Unit | Configurable 0.1 mm Unit | |
* 1 H+1 ≤ (Min. Value of A, D)
* 2 When (max. value of A, D) ≤ 60, 10 ≤ L-W; when (max. value of A, D) > 60, 12 ≤ L-W.
* 3 (Max. value of A, D) - (Min. value of A, D) ≤ 21
* 4 A minimum wall thickness of 1 mm is required around the hole machining.
Alterations
| Alterations Code | Alteration details | Applicable conditions | Ordering example | |||||||||||||||
| Change hole type | M | Tapped Hole | Change the through hole (N) to a tapped hole. ·M6/M8 Ordering Code: N7→M6 | - | UKSVW16-L46-H15-W30-A35.01-D30.01-M8-P20-K6-G32-E7 | [ ! ] A minimum wall thickness of 1 mm is required around the holes machining for the alteration described on the left. | ||||||||||||
| Z | Counterbored Hole | Changes Through Hole (N) to Counterbored Hole. ·Z6/Z8 Ordering Code: N9→Z8
| [!]Only applicable to T = 16, 19, 20 | UKSVW16-L46-H15-W30-A35.01-D30.01-Z6-P20-K6-G32-E7 | ||||||||||||||
| ZG | Counterbored Hole (For spring washer) | Changed Through Hole (N) to Counterbored Hole (for Spring Washer). ·ZG6/ZG8 Ordering Code: N9→ZG8
| [!]Only applicable to T = 16, 19, 20 | UKSVW16-L46-H15-W30-A35.01-D30.01-ZG6-P20-K6-G32-E7 | ||||||||||||||
| CA/ CB/ CC/ CD/ CT | Chamfer | Chamfer the receiving surface or bottom surface. ·Chamfer Location: Please select the required location from CA/CB/CC/CD/CT. ·Chamfer width specified: Specify 1, 3, 5 or 10. Ordering Code: CA5 | - | UKSVW16-L46-H15-W30-A35.01-D30.01-N9-P20-K6-G32-E7-CA1-CT1 | ||||||||||||||
| ZKC | Height accuracy | Changed the tolerance of A and D dimensions to ±0.03. Ordering Code: ZKC | - | UKSVW16-L46-H15-W30-A35.01-D30.01-N9-P20-K6-G32-E7-ZKC | ||||||||||||||
| VK | Marking (V Groove) | Add a marking line V groove to the receiving surface. ·V groove is 0.5 mm wide and 0.2 mm deep ·They are evenly spaced across the length/width of the receiving surface. Ordering Code: VK | [ ! ] The width tolerance is ±0.2 and the depth tolerance is ±0.1. | UKSVW16-L46-H15-W30-A35.01-D30.01-N9-P20-K6-G32-E7-VK | ||||||||||||||
