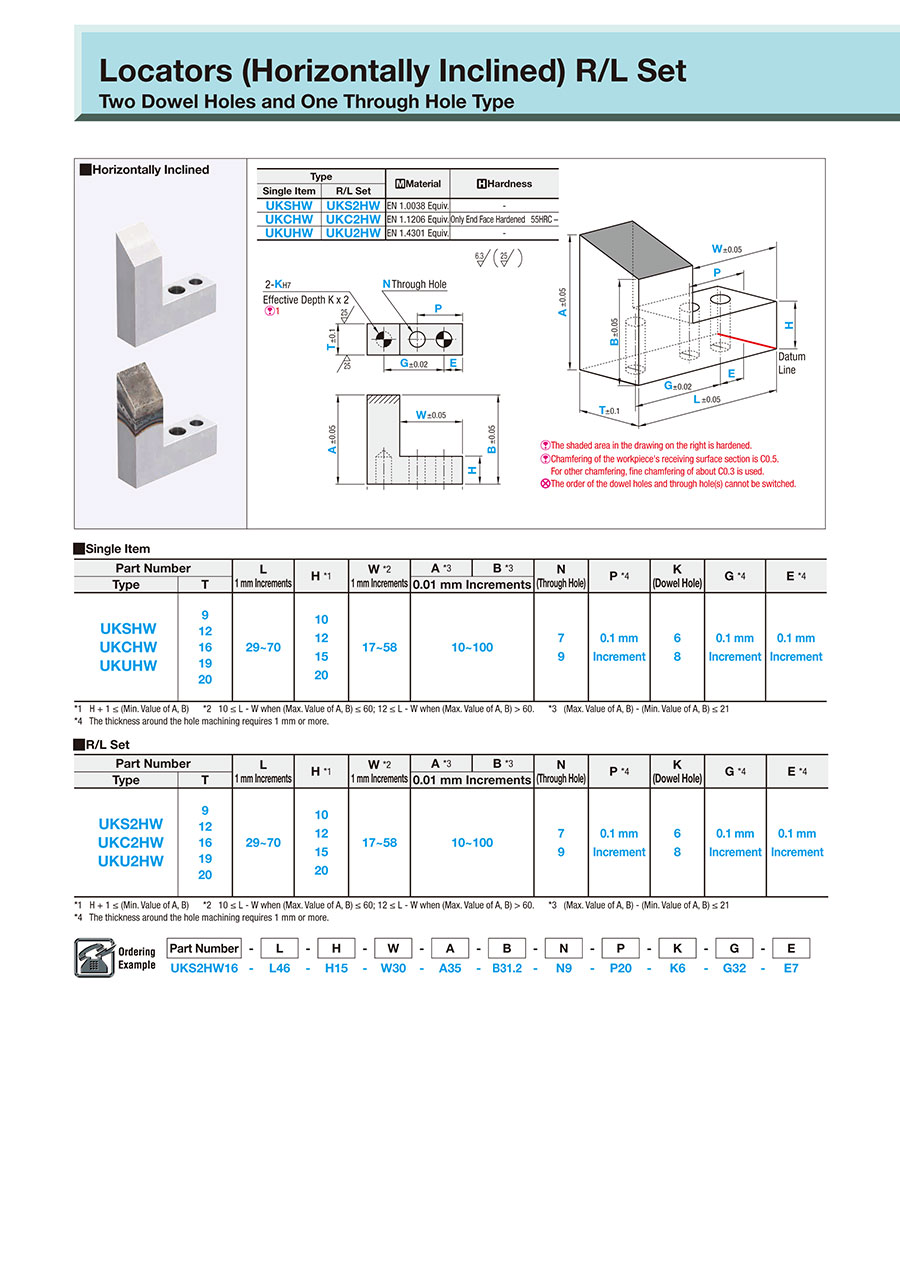

Locators (Horizontally Inclined) Two Dowel Holes and One Through Hole Type

Type		Material	Hardness
Single Item	R/L Set
UKSHW	UKS2HW	EN 1.0038 Equiv.	-
UKCHW	UKC2HW	EN 1.1206 Equiv.	Only End Face Hardened 55HRC –
UKUHW	UKU2HW	EN 1.4301 Equiv.	-

Part Number

-

L

-

H

-

W

-

A

-

B

-

N

-

P

-

K

-

G

-

E

UKS2HW16

-

L46

-

H15

-

W30

-

A35

-

B31.2

-

N9

-

P20

-

K6

-

G32

-

E7

■Single Item

Part Number		L 1 mm Increments	H *1	W *2 1 mm Increments	A *3	B *3	N (Through Hole)	P *4	K (Dowel Hole)	G *4	E *4
Type	T				0.01 mm Increments
UKSHW UKCHW UKUHW	9 12 16 19 20	29~70	10 12 15 20	17~58	10~100		7 9	0.1 mm Increment	6 8	0.1 mm Increment	0.1 mm Increment

*1 H + 1 ≤ (Min. Value of A, B)
*2 10 ≤ L - W when (Max. Value of A, B) ≤ 60; 12 ≤ L - W when (Max. Value of A, B) > 60.
*3 (Max. Value of A, B) - (Min. Value of A, B) ≤ 21
*4 The thickness around the hole machining requires 1 mm or more.
■R/L Set

Part Number		L 1 mm Increments	H *1	W *2 1 mm Increments	A *3	B *3	N (Through Hole)	P *4	K (Dowel Hole)	G *4	E *4
Type	T				0.01 mm Increments
UKS2HW UKC2HW UKU2HW	9 12 16 19 20	29~70	10 12 15 20	17~58	10~100		7 9	0.1 mm Increment	6 8	0.1 mm Increment	0.1 mm Increment

*1 H + 1 ≤ (Min. Value of A, B)
*2 10 ≤ L - W when (Max. Value of A, B) ≤ 60; 12 ≤ L - W when (Max. Value of A, B) > 60.
*3 (Max. Value of A, B) - (Min. Value of A, B) ≤ 21
*4 The thickness around the hole machining requires 1 mm or more.
