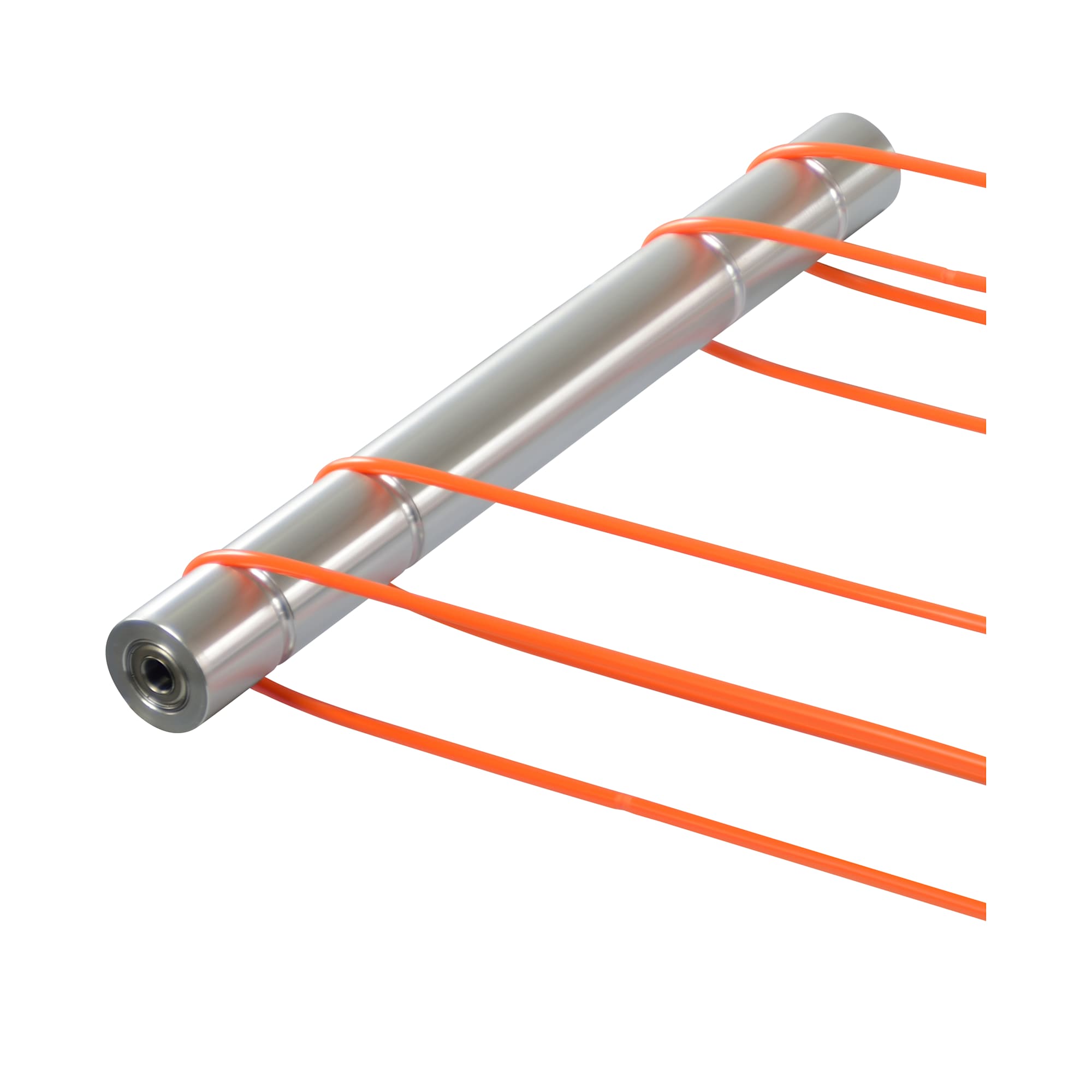

Grooved Roller for Round Belt (Both Ends Pitch Configurable Type) with Bearings

Name: Grooved Roller for Round Belt (Both Ends Pitch Configurable Type) with Bearings from MISUMI | MISUMI
Brand: MISUMI
SKU: 110310308969
Availability: Instock

Mouse over image to enlarge

Part number:

Still undefined. 135 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information

Outline drawing and specifications table

N4 (4 Grooves)

Round Belt Dia. A	C	J
2	2.3	2.2
3	3.5	3.2
4	4.6	4.3
5	5.8	5.4
6	6.9	6.5

N6 (6 Grooves) N8 (8 Grooves)

N10 (10 Grooves)

*Bearing precision JIS B 1514-1 Class 0

Type			Material		Surface Treatment
U Groove	Wide Groove	Trapezoid Groove	Roller	Bearing	Surface Treatment
MREBUA	MREBWA	MREBDA	5000 Series Aluminum Alloy	Bearing Steel	Clear Anodize
MREBUS	MREBWS	MREBDS	EN 1.4301 Equiv.		—
MREBUM	MREBWM	MREBDM	Carbon Steel		Electroless Nickel Plating

Specification Table

Part Number	—	d	—	L	—	N	—	F	—	P	—	A
MREBUA30	—	8	—	300	—	N10	—	F30	—	P25	—	A3

Part Number				d	Overall Length L 1 mm Increments	Number of Grooves N	F 1 mm Increments	Groove Pitch P 1 mm Increments	Belt Dia. (ø) A	L₁	D₁	B	d₁			Bearing Part Number
Type			D
													Aluminum Alloy	EN 1.4301 Equiv.	Carbon Steel
U Groove MREBUA MREBUS MREBUM	Wide Groove MREBWA MREBWS MREBWM	Trapezoid Groove MREBDA MREBDS MREBDM	20	6	60 to 200	4 6 8 10	F ≥ 15	P ≥ 10	2·3	L₁ ≥ 10	15	5	11	13	12	696ZZ
				8							16					688ZZ
			30	8	60 to 300				2·3·4		19	6	15	—	—	698ZZ
				8 A							22	7	—	18	15.8	608ZZ
				10							22	6	15			6900ZZ
				12							24					6901ZZ
			40	8	60 to 500				2·3·4·5		24	8	17	20	18.7	628ZZ
				10							26					6000ZZ
				12							24	6				6901ZZ
				15							28	7				6902ZZ
				20							32		22	22	22.7	6804ZZ
			50	10					2·3·4·5·6		30	9	17	22	18	6200ZZ
				12							28	8	22			6001ZZ
				15							28	7	17			6902ZZ
				20							37	9	27	28	30	6904ZZ
				25							42					6905ZZ

The overall length L should take into account the number of grooves, the groove pitch, and the distance from the end face. L = P× (N－2) +2F+L₁
The maximum value of the F dimension is 15 ≤ F ≤ (L - L1 - P × (N - 2))/2
Relief is added to the end faces to prevent contact with the bearing inner ring.

Alterations

Alterations Code	Bearing Material Change	Specifying Example
SB	Changes the bearing to stainless steel.	MREBU30-8-300-N10-F30-P25-A3-SB

Part number list

Number of items

Part number

MREBDA20-6-[60-200/1]-N[4,6,8,10]-F[15-85/1]-P[10-80/1]-A[2,3]

MREBDA20-8-[60-200/1]-N[4,6,8,10]-F[15-85/1]-P[10-80/1]-A[2,3]

MREBDA30-8-[60-300/1]-N[4,6,8,10]-F[15-135/1]-P[10-130/1]-A[2,3,4]

MREBDA30-10-[60-300/1]-N[4,6,8,10]-F[15-135/1]-P[10-130/1]-A[2,3,4]

MREBDA30-12-[60-300/1]-N[4,6,8,10]-F[15-135/1]-P[10-130/1]-A[2,3,4]

MREBDA40-8-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBDA40-10-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBDA40-12-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBDA40-15-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBDA40-20-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBDA50-10-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBDA50-12-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBDA50-15-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBDA50-20-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBDA50-25-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBDM20-6-[60-200/1]-N[4,6,8,10]-F[15-85/1]-P[10-80/1]-A[2,3]

MREBDM20-8-[60-200/1]-N[4,6,8,10]-F[15-85/1]-P[10-80/1]-A[2,3]

MREBDM30-8A-[60-300/1]-N[4,6,8,10]-F[15-135/1]-P[10-130/1]-A[2,3,4]

MREBDM30-10-[60-300/1]-N[4,6,8,10]-F[15-135/1]-P[10-130/1]-A[2,3,4]

MREBDM30-12-[60-300/1]-N[4,6,8,10]-F[15-135/1]-P[10-130/1]-A[2,3,4]

MREBDM40-8-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBDM40-10-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBDM40-12-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBDM40-15-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBDM40-20-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBDM50-10-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBDM50-12-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBDM50-15-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBDM50-20-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBDM50-25-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBDS20-6-[60-200/1]-N[4,6,8,10]-F[15-85/1]-P[10-80/1]-A[2,3]

MREBDS20-8-[60-200/1]-N[4,6,8,10]-F[15-85/1]-P[10-80/1]-A[2,3]

MREBDS30-8A-[60-300/1]-N[4,6,8,10]-F[15-135/1]-P[10-130/1]-A[2,3,4]

MREBDS30-10-[60-300/1]-N[4,6,8,10]-F[15-135/1]-P[10-130/1]-A[2,3,4]

MREBDS30-12-[60-300/1]-N[4,6,8,10]-F[15-135/1]-P[10-130/1]-A[2,3,4]

MREBDS40-8-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBDS40-10-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBDS40-12-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBDS40-15-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBDS40-20-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBDS50-10-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBDS50-12-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBDS50-15-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBDS50-20-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBDS50-25-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBUA20-6-[60-200/1]-N[4,6,8,10]-F[15-85/1]-P[10-80/1]-A[2,3]

MREBUA20-8-[60-200/1]-N[4,6,8,10]-F[15-85/1]-P[10-80/1]-A[2,3]

MREBUA30-8-[60-300/1]-N[4,6,8,10]-F[15-135/1]-P[10-130/1]-A[2,3,4]

MREBUA30-10-[60-300/1]-N[4,6,8,10]-F[15-135/1]-P[10-130/1]-A[2,3,4]

MREBUA30-12-[60-300/1]-N[4,6,8,10]-F[15-135/1]-P[10-130/1]-A[2,3,4]

MREBUA40-8-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBUA40-10-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBUA40-12-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBUA40-15-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBUA40-20-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5]

MREBUA50-10-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBUA50-12-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBUA50-15-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBUA50-20-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

MREBUA50-25-[60-500/1]-N[4,6,8,10]-F[15-235/1]-P[10-230/1]-A[2,3,4,5,6]

Metal Part Outer Diameter D

Material

Length

Internal Diameter d

Properties / applications

Material Details

Surface Treatment

Groove Shape

Overall Length L

(㎜)

Number of Grooves

(Groove)

F (Distance from End Face)

(㎜)

Groove Pitch

(㎜)

Belt Dia.

(ø)

Minimum order quantity

[Aluminum] Aluminum Alloy

～300

Not Applicable

EN AW-5056 Equiv.

Clear Anodize

Trapezoid Groove

60 ～ 200

4 ～ 10

15 ～ 85

10 ～ 80

2 ～ 3

1 pieces

[Aluminum] Aluminum Alloy

～300

Not Applicable

EN AW-5056 Equiv.

Clear Anodize

Trapezoid Groove

60 ～ 200

4 ～ 10

15 ～ 85

10 ～ 80

2 ～ 3

1 pieces

[Aluminum] Aluminum Alloy

～300

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

Trapezoid Groove

60 ～ 300

4 ～ 10

15 ～ 135

10 ～ 130

2 ～ 4

1 pieces

[Aluminum] Aluminum Alloy

～300

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

Trapezoid Groove

60 ～ 300

4 ～ 10

15 ～ 135

10 ～ 130

2 ～ 4

1 pieces

[Aluminum] Aluminum Alloy

～300

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

Trapezoid Groove

60 ～ 300

4 ～ 10

15 ～ 135

10 ～ 130

2 ～ 4

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Steel] Steel

～300

Corrosion resistance / chemical resistance

EN 1.0480 Equiv.

Electroless Nickel Plating

Trapezoid Groove

60 ～ 200

4 ～ 10

15 ～ 85

10 ～ 80

2 ～ 3

1 pieces

[Steel] Steel

～300

Corrosion resistance / chemical resistance

EN 1.0480 Equiv.

Electroless Nickel Plating

Trapezoid Groove

60 ～ 200

4 ～ 10

15 ～ 85

10 ～ 80

2 ～ 3

1 pieces

[Steel] Steel

～300

Corrosion resistance / chemical resistance

EN 1.0480 Equiv.

Electroless Nickel Plating

Trapezoid Groove

60 ～ 300

4 ～ 10

15 ～ 135

10 ～ 130

2 ～ 4

1 pieces

[Steel] Steel

～300

Corrosion resistance / chemical resistance

EN 1.0480 Equiv.

Electroless Nickel Plating

Trapezoid Groove

60 ～ 300

4 ～ 10

15 ～ 135

10 ～ 130

2 ～ 4

1 pieces

[Steel] Steel

～300

Corrosion resistance / chemical resistance

EN 1.0480 Equiv.

Electroless Nickel Plating

Trapezoid Groove

60 ～ 300

4 ～ 10

15 ～ 135

10 ～ 130

2 ～ 4

1 pieces

[Steel] Steel

～500

Corrosion resistance / chemical resistance

EN 1.0480 Equiv.

Electroless Nickel Plating

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Steel] Steel

～500

Corrosion resistance / chemical resistance

EN 1.0480 Equiv.

Electroless Nickel Plating

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Steel] Steel

～500

Corrosion resistance / chemical resistance

EN 1.0480 Equiv.

Electroless Nickel Plating

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Steel] Steel

～500

Corrosion resistance / chemical resistance

EN 1.0480 Equiv.

Electroless Nickel Plating

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Steel] Steel

～500

Corrosion resistance / chemical resistance

EN 1.0480 Equiv.

Electroless Nickel Plating

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Steel] Steel

～500

Corrosion resistance / chemical resistance

EN 1.0480 Equiv.

Electroless Nickel Plating

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Steel] Steel

～500

Corrosion resistance / chemical resistance

EN 1.0480 Equiv.

Electroless Nickel Plating

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Steel] Steel

～500

Corrosion resistance / chemical resistance

EN 1.0480 Equiv.

Electroless Nickel Plating

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Steel] Steel

～500

Corrosion resistance / chemical resistance

EN 1.0480 Equiv.

Electroless Nickel Plating

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Steel] Steel

～500

Corrosion resistance / chemical resistance

EN 1.0480 Equiv.

Electroless Nickel Plating

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Stainless Steel] SUS304

～300

Corrosion resistance / chemical resistance

EN 1.4301 Equiv.

N/A

Trapezoid Groove

60 ～ 200

4 ～ 10

15 ～ 85

10 ～ 80

2 ～ 3

1 pieces

[Stainless Steel] SUS304

～300

Corrosion resistance / chemical resistance

EN 1.4301 Equiv.

N/A

Trapezoid Groove

60 ～ 200

4 ～ 10

15 ～ 85

10 ～ 80

2 ～ 3

1 pieces

[Stainless Steel] SUS304

～300

Corrosion resistance / chemical resistance

EN 1.4301 Equiv.

N/A

Trapezoid Groove

60 ～ 300

4 ～ 10

15 ～ 135

10 ～ 130

2 ～ 4

1 pieces

[Stainless Steel] SUS304

～300

Corrosion resistance / chemical resistance

EN 1.4301 Equiv.

N/A

Trapezoid Groove

60 ～ 300

4 ～ 10

15 ～ 135

10 ～ 130

2 ～ 4

1 pieces

[Stainless Steel] SUS304

～300

Corrosion resistance / chemical resistance

EN 1.4301 Equiv.

N/A

Trapezoid Groove

60 ～ 300

4 ～ 10

15 ～ 135

10 ～ 130

2 ～ 4

1 pieces

[Stainless Steel] SUS304

～500

Corrosion resistance / chemical resistance

EN 1.4301 Equiv.

N/A

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Stainless Steel] SUS304

～500

Corrosion resistance / chemical resistance

EN 1.4301 Equiv.

N/A

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Stainless Steel] SUS304

～500

Corrosion resistance / chemical resistance

EN 1.4301 Equiv.

N/A

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Stainless Steel] SUS304

～500

Corrosion resistance / chemical resistance

EN 1.4301 Equiv.

N/A

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Stainless Steel] SUS304

～500

Corrosion resistance / chemical resistance

EN 1.4301 Equiv.

N/A

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Stainless Steel] SUS304

～500

Corrosion resistance / chemical resistance

EN 1.4301 Equiv.

N/A

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Stainless Steel] SUS304

～500

Corrosion resistance / chemical resistance

EN 1.4301 Equiv.

N/A

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Stainless Steel] SUS304

～500

Corrosion resistance / chemical resistance

EN 1.4301 Equiv.

N/A

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Stainless Steel] SUS304

～500

Corrosion resistance / chemical resistance

EN 1.4301 Equiv.

N/A

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Stainless Steel] SUS304

～500

Corrosion resistance / chemical resistance

EN 1.4301 Equiv.

N/A

Trapezoid Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Aluminum] Aluminum Alloy

～300

Not Applicable

EN AW-5056 Equiv.

Clear Anodize

U Groove

60 ～ 200

4 ～ 10

15 ～ 85

10 ～ 80

2 ～ 3

1 pieces

[Aluminum] Aluminum Alloy

～300

Not Applicable

EN AW-5056 Equiv.

Clear Anodize

U Groove

60 ～ 200

4 ～ 10

15 ～ 85

10 ～ 80

2 ～ 3

1 pieces

[Aluminum] Aluminum Alloy

～300

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

U Groove

60 ～ 300

4 ～ 10

15 ～ 135

10 ～ 130

2 ～ 4

1 pieces

[Aluminum] Aluminum Alloy

～300

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

U Groove

60 ～ 300

4 ～ 10

15 ～ 135

10 ～ 130

2 ～ 4

1 pieces

[Aluminum] Aluminum Alloy

～300

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

U Groove

60 ～ 300

4 ～ 10

15 ～ 135

10 ～ 130

2 ～ 4

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

U Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

U Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

U Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

U Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

U Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 5

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

U Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

U Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

U Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

U Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

[Aluminum] Aluminum Alloy

～500

Not Applicable

EN AW-5052 Equiv.

Clear Anodize

U Groove

60 ～ 500

4 ～ 10

15 ～ 235

10 ～ 230

2 ～ 6

1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days

Basic information
Outline and specifications

Basic information

FeaturesGrooved rollers for round belts, with bearings.
Multiple grooves can be machined on one roller, reducing the number of parts.
Roller length and groove positions are configurable in 1‑mm increments.
Ideal for round-belt conveyance that uses both ends of the roller.
Three types available with different groove shapes.
◆ U Groove: Standard; W Groove: Inclined belts, etc. (no recommended angle); Trapezoid Groove: Belt slip reduction
♦ Material: Aluminum Alloy, Stainless Steel (EN 1.4301 Equiv.), Carbon Steel
♦ Applicable Round Belt Dia.: ø3 to 6

Related ProductsClick here for the Set Screw Type
Set Screw Type
Click here for the Center-Symmetrical Pitch TypeBearing Type Set Screw Type

Grooved Roller for Round Belt (Both Ends Pitch Configurable Type) with Bearings

Outline drawing and specifications table

Specification Table

Alterations

Part number list

More Information

Basic information

Outline and specifications

App. Example
