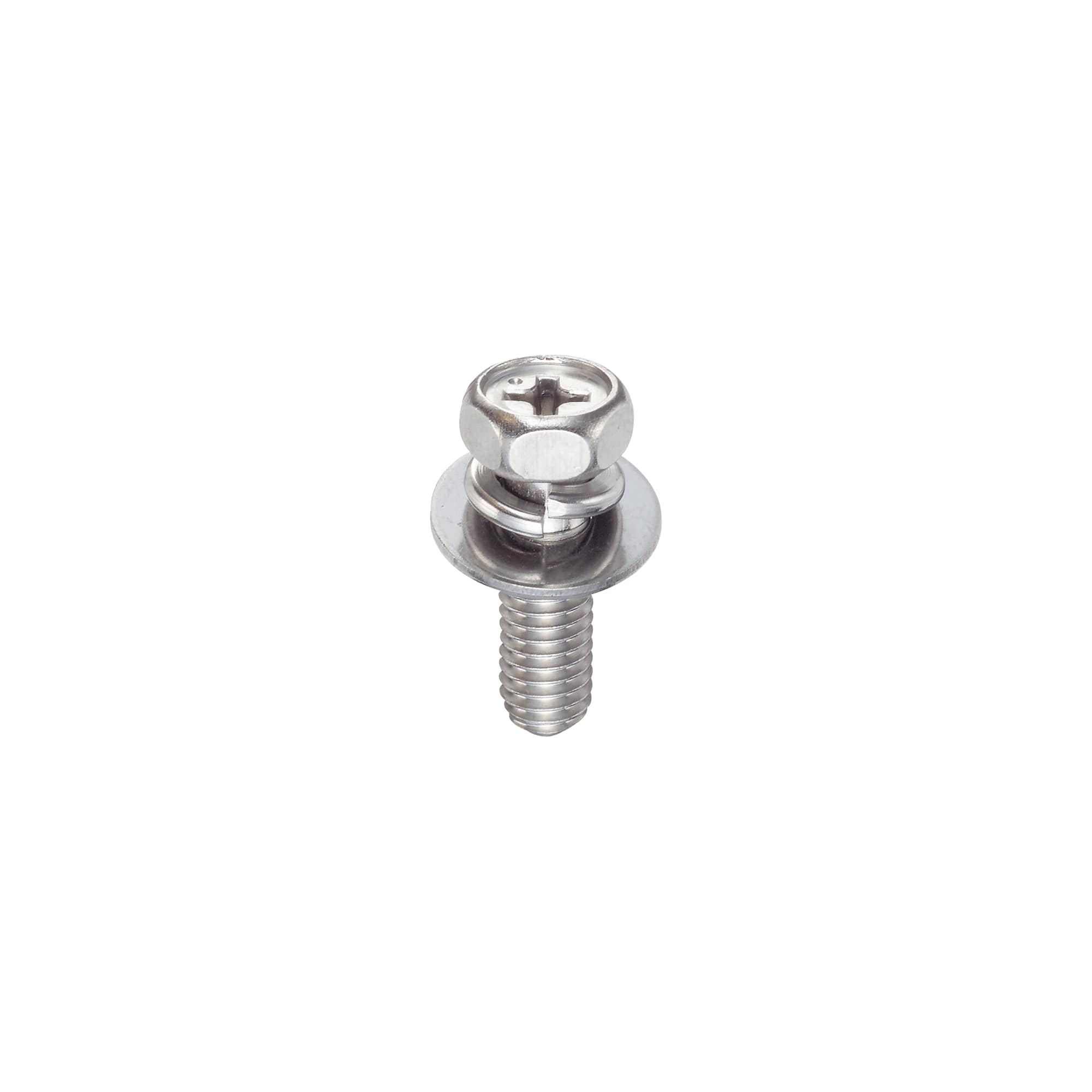

Cross Recessed Upset Screw with Washer - Single Item

Cross Recessed Upset Screw with Washer - Single Item

Caution

  • Appropriate tightening tools are box wrenches and Phillips head screwdrivers.
  • Since it is made of stainless steel, it has excellent corrosion resistance, but it is not suitable for use in a chlorine environment or a salt environment such as near the coast.

Part number:

Still undefined. 80 possible part numbers found.
Quantity:

Outline drawing and specifications table

Screw[M]Material: EN 1.4301 Equiv.
JIS B 0209-1 Metric Screw Tolerances (6 g)
WashersSpring Washer JIS B 1251
JIS B 1256 Plain Washers

Specification Table

Part Number
USETS4-10
USETS5-12
M × P
Coarse		Bolt BodySpring WasherFlat Washer
EToleranceAToleranceem
(Reference)		Cross Recessed
No.		(a)
Max.		d1
(Max.)		D1t
3 × 0.52.0±0.15.5 0
－0.2		6.403.523.05.58.00.5
4 × 0.72.87.08.104.04.47.010.00.8
5 × 0.83.5±0.158.09.204.85.48.512.0
6 × 1.04.010.011.506.236.911.513.01.0
8 × 1.255.513.0 0
－0.25		15.007.28.414.518.01.6
10 × 1.57.0±0.217.019.609.3410.417.522.0
[ ! ](a) is the max length (reference) between head surface and the complete thread.
[ ! ] Appropriate tightening tools are box wrenches and Phillips head screwdrivers.
