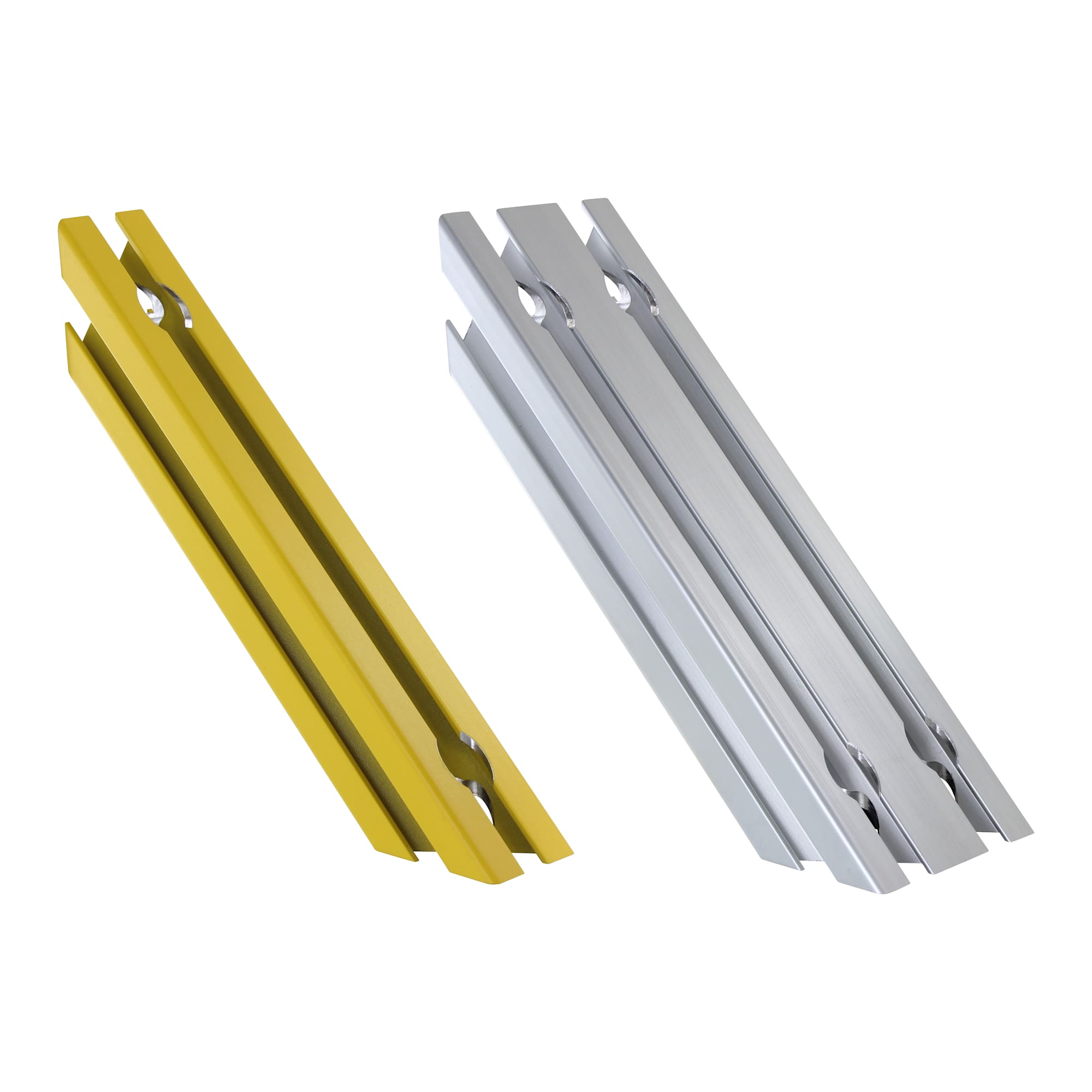

Brackets for Reinforcement - for 6 Series (Slot Width 8 mm), Perpendicularity 45° Shape Type
This is a new series with more shapes and compatible aluminum extrusions than the conventional brackets for reinforcement (HFBL).
A flat washer has been added for tightening, making it more difficult for screws to loosen than conventional products.
(i)Remark
- The L dim. has been expanded to 1,000 mm in size
- If alterations for this product are selected, screws, nuts, and flat washers are included
- The hole positions and accessories are different from the conventional products of HFBL6
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
(Silver)
HFBL45A6－3030
HFBL45A6－3060
HFBL45A6－3090
GFBL45A6－3030
GFBL45A6－3060
(Yellow)
HFBLY45A6－3030
HFBLY45A6－3060
[Front View]
HFBL45A6－3030
HFBLY45A6－3030
GFBL45A6－3030
HFBL45A6－3060
HFBLY45A6－3060
GFBL45A6－3060
HFBL45A6－3090
Detail of A
(Silver)
HFBL45A6－6030
HFBL45A6－6090
GFBL45A6－6030
(Yellow)
HFBLY45A6－6030
[Front View]
HFBL45A6－6030
HFBLY45A6－6030
GFBL45A6－6030
HFBL45A6－6090
Detail of A
(Silver)
HFBL45A6－9060
[Front View]
HFBL45A6－9060
Detail of A
Type | [ M ] Material | [ S ] Surface treatment |
HFBL45A6 | EN AW-6061-T5 Equiv. | Clear Anodize |
GFBL45A6 | EN AW-6061-T6 Equiv. | |
HFBLY45A6 | EN AW-6061-T5 Equiv. | Baked-on Finish (Yellow) *1 |
Specification Table
Part Number | — | L |
HFBL45A6−3030 HFBLY45A6−3030 | — — | 300 300 |
| Part Number | L 1 mm increments | D | d | F1 | t1 | F2 | t2 | Extrusion Type | Screws, nuts, washers | |||||||||
| Type | No. | Min | Max | For hole 1 Screws | Quantity | For hole 2 Screws | Quantity | Nut | Quantity | Washer | Quantity | |||||||
| HFBL45A6 | 3030 | 100 | 1000 | 13.5 | 6.5 | 23 | 3 | — | — | HFS6-3030 | CBE6-12 | 2 | - | - | HNTT6-6 | 2 | PWF6 | 2 |
| 3060 | 100 | 1000 | HFS6-3060 | 4 | 4 | 4 | ||||||||||||
| 3090 | 100 | 1000 | HFS6-3090 | 6 | 6 | 6 | ||||||||||||
| 6030 | 150 | 1000 | 63 | 46 | HFS6-3060 | 2 | CBE6-55 | 2 | 4 | 4 | ||||||||
| 6090 | 150 | 1000 | HFS6-6090 | 4 | CBE6-55 | 4 | 8 | 8 | ||||||||||
| 9060 | 150 | 1000 | HFS6-6090 | 4 | CBE6-55 | 4 | 8 | 8 | ||||||||||
| GFBL45A6 (High Rigidity) | 3030 | 100 | 1000 | 4 | — | — | GFS6-3030 | 2 | - | - | 2 | 2 | ||||||
| 3060 | 100 | 1000 | GFS6-3060 | 4 | 4 | 4 | ||||||||||||
| 6030 | 150 | 1000 | 3 | 63 | 46 | GFS6-3060 | 2 | CBE6-55 | 2 | 4 | 4 | |||||||
| HFBLY45A6 Baked-on Finish (Yellow) | 3030 | 100 | 1000 | 3 | — | — | HFSY6-3030 | 2 | - | - | 2 | 2 | ||||||
| 3060 | 100 | 1000 | HFSY6-3060 | 4 | 4 | 4 | ||||||||||||
| 6030 | 150 | 1000 | 63 | 46 | HFSY6-3060 | 2 | CBE6-55 | 2 | 4 | 4 | ||||||||
Alterations
 |
|
Alterations | Code | Spec. | Applicable Bracket | |||
Applicable Screws and Nuts Set Nuts Set | SET SST (Stainless Steel) SEU (Pre-Assembly Insertion Spring Nuts) SSU (Pre-assembly insertion spring nuts stainless steel) SEP (Post-Assembly Insertion Spring Nuts) SSP (Post-assembly insertion spring nuts stainless steel) | Detailed screw and nut specifications are as shown in the table below | HFBL45A6-3030 HFBLY45A6-3030 | |||
HFBL45A6-3060 HFBLY45A6-3060 | ||||||
HFBL45A6-3090 | ||||||
HFBL45A6-6030 HFBLY45A6-6030 | ||||||
HFBL45A6-6090 | ||||||
HFBL45A6-9060 | ||||||
GFBL45A6-3030 | ||||||
GFBL45A6-3060 | ||||||
GFBL45A6-6030 | ||||||
Alteration Details
■Applicable screw, nut, washer set details| Alteration part number | Screw for hole 1 | Screw for hole 2 | Nut | Washer | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Part Number | Material | Type | Part Number | Material | Stopper | Part Number | Material | |
| SET | CBE6-12 | EN 1.7220 Equiv. | CBE6-55 | EN 1.7220 Equiv. | Pre-Assembly | HNTT6-6 | EN 1.0301 Equiv. | None | PWF6 | EN 1.0330 Equiv. |
| SST (stainless steel) | SCB6-12 | EN 1.4301 Equiv. | SCB6-55 | EN 1.4301 Equiv. | Pre-Assembly | HNTTSN6-6 | EN 1.4401 Equiv. | None | SPWF6 | EN 1.4301 Equiv. |
| SEU | CBE6-12 | EN 1.7220 Equiv. | CBE6-55 | EN 1.7220 Equiv. | Pre-Assembly | HNTU6-6 | EN 1.0301 Equiv. | Provided | PWF6 | EN 1.0330 Equiv. |
| SSU (stainless steel) | SCB6-12 | EN 1.4301 Equiv. | SCB6-55 | EN 1.4301 Equiv. | Pre-Assembly | SHNTU6-6 | EN 1.4301 Equiv. | Provided | SPWF6 | EN 1.4301 Equiv. |
| SEP | CBE6-12 | EN 1.7220 Equiv. | CBE6-55 | EN 1.7220 Equiv. | Post-Assembly | HNTP6-6 | EN 1.0301 Equiv. | Provided | PWF6 | EN 1.0330 Equiv. |
| SSP (stainless steel) | SCB6-12 | EN 1.4301 Equiv. | SCB6-55 | EN 1.4301 Equiv. | Post-Assembly | SHNTP6-6 | EN 1.4401 Equiv. | Provided | SPWF6 | EN 1.4301 Equiv. |
[ ! ] If alterations are not selected, no screws, nuts, and washers are included.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number | Minimum order quantity | Volume Discount | Material | Surface Treatment | Extrusion Series | Extrusion Size | Number of Extrusion Connection Holes | Overall Length L (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7 Days | EN AW-6061-T6 Equiv. | Clear Anodize | GFS | For 3030 | 2 | 100 ～ 1000 | ||
| 1 | 7 Days | EN AW-6061-T6 Equiv. | Clear Anodize | GFS | For 3060 | 4 | 100 ～ 1000 | ||
| 1 | 7 Days | EN AW-6061-T6 Equiv. | Clear Anodize | GFS | For 6030 | 2 | 150 ～ 1000 | ||
| 1 | 7 Days | EN AW-6061-T5 Equiv. | Clear Anodize | HFS | For 3030 | 2 | 100 ～ 1000 | ||
| 1 | 7 Days | EN AW-6061-T5 Equiv. | Clear Anodize | HFS | For 3060 | 4 | 100 ～ 1000 | ||
| 1 | 7 Days | EN AW-6061-T5 Equiv. | Clear Anodize | HFS | For 3090 | 6 | 100 ～ 1000 | ||
| 1 | 7 Days | EN AW-6061-T5 Equiv. | Clear Anodize | HFS | For 6030 | 2 | 150 ～ 1000 | ||
| 1 | 7 Days | EN AW-6061-T5 Equiv. | Clear Anodize | HFS | For 6090 | 4 | 150 ～ 1000 | ||
| 1 | 7 Days | EN AW-6061-T5 Equiv. | Clear Anodize | HFS | For 9060 | 4 | 150 ～ 1000 | ||
| 1 | 7 Days | EN AW-6061-T5 Equiv. | Baked-on Finish (Yellow) | HFSY | For 3030 | 2 | 100 ～ 1000 | ||
| 1 | 7 Days | EN AW-6061-T5 Equiv. | Baked-on Finish (Yellow) | HFSY | For 3060 | 4 | 100 ～ 1000 | ||
| 1 | 7 Days | EN AW-6061-T5 Equiv. | Baked-on Finish (Yellow) | HFSY | For 6030 | 2 | 150 ～ 1000 |
Loading...
App. Example
Reinforcement brackets machined from HFS type aluminum extrusions. Effective on locations needing more strength after connecting with brackets.This product is a product of the brace part. Aluminum extrusions to be used around it needs to be ordered separately.
Basic information
| Extrusion Series | MISUMI 6 Series (8 mm Groove Width) | Bracket Type | Brackets for Reinforcement | Applicable Screws | M6 screw |
|---|
