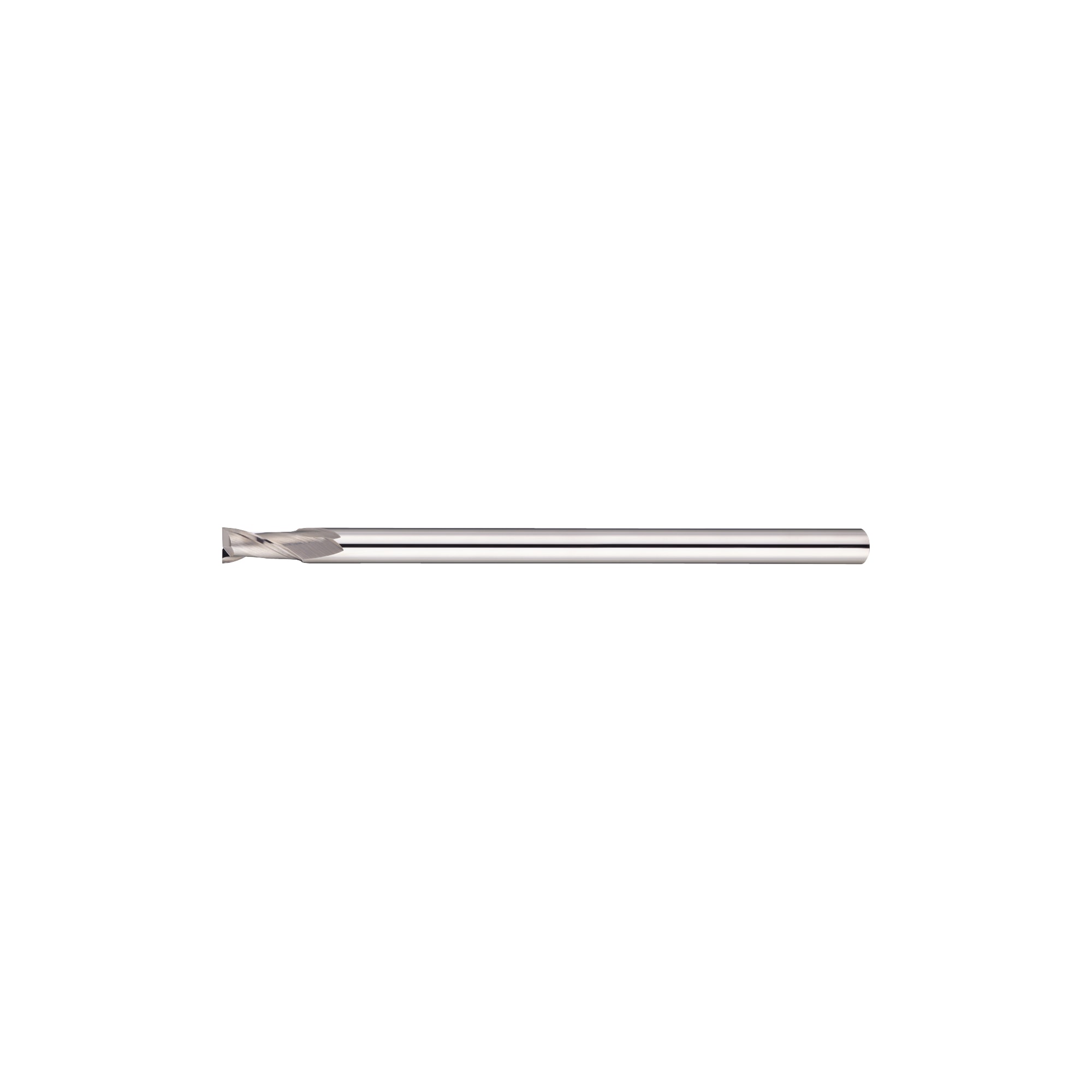

Carbide Square End Mill for Resin Machining, 2-Flute / Regular, Long Shank Model
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
- Non-Coated
- Resin
- 2 Flutes
- R (Regular)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| SEC-LS-PLEM2R1 |
| SEC-LS-PLEM2R1-1 |
| SEC-LS-PLEM2R1.5 |
| SEC-LS-PLEM2R1.5-1.5 |
| SEC-LS-PLEM2R2 |
| SEC-LS-PLEM2R2-2 |
| SEC-LS-PLEM2R3 |
| SEC-LS-PLEM2R4 |
| SEC-LS-PLEM2R6 |
| SEC-LS-PLEM2R10 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outer Diameter (D) (φ) | Flute Length (ℓ) (mm) | Shank Diameter (d) (mm) | Overall Length (L) (mm) | Figure | |
|---|---|---|---|---|---|---|---|---|---|
43.95 € | 1 | Available | 5 Days | 1 | 3 | 3 | 65 | 1 | |
54.67 € | 1 | Available | 5 Days | 1 | 3 | 1 | 65 | 2 | |
46.79 € | 1 | Available | 5 Days | 1.5 | 3 | 3 | 65 | 1 | |
55.49 € | 1 | Available | 5 Days | 1.5 | 3 | 1.5 | 65 | 2 | |
44.04 € | 1 | Available | 5 Days | 2 | 5 | 3 | 80 | 1 | |
42.65 € | 1 | Available | 5 Days | 2 | 5 | 2 | 80 | 2 | |
50.93 € | 1 | Available | 5 Days | 3 | 8 | 3 | 100 | 2 | |
50.12 € | 1 | Available | 5 Days | 4 | 10 | 4 | 120 | 2 | |
62.86 € | 1 | Available | 5 Days | 6 | 15 | 6 | 150 | 2 | |
147.83 € | 1 | Available | 5 Days | 10 | 20 | 10 | 180 | 2 |
Loading...
Specifications
| Model Number | Shank Diameter d |
Flute Length ℓ |
Overall Length L |
Figure | ||
| Outer Diameter D |
Shank Diameter d |
|||||
| SEC-LS-PLEM2R | 1 | — | 3 | 3 | 65 | 1 |
| 1 |
1 |
1 | 3 | 65 | 2 | |
| 1.5 | — | 3 | 3 | 65 | 1 | |
| 1.5 |
1.5 |
1.5 | 3 | 65 | 2 | |
| 2 | — | 3 | 5 | 80 | 1 | |
| 2 |
2 |
2 | 5 | 80 | 2 | |
| 3 | — | 3 | 8 | 100 | 2 | |
| 4 | — | 4 | 10 | 120 | 2 | |
| 6 | — | 6 | 15 | 150 | 2 | |
| 10 | — | 10 | 20 | 180 | 2 |
[ ! ]For shank diameter (d) specifications listed in blue, specify both a outer diameter (D) and shank diameter (d).
For Cutting Conditions, Refer to >>Click here.
More Information
●A blade shape ideal for machining resin.
●Suitable for machining aluminum, copper and other non-ferrous materials.
● The long shank model is ideal for machining deep grooves.
Basic information
| Work Material | Aluminum Alloy / Copper Alloy / Graphite / Resin | Number of Flutes(sheet) | 2 | Model | Square |
|---|---|---|---|---|---|
| Coating | Non-Coated | Processing Applications | Flat Surface / Side Surface / Inclined Cutting | Geometry | Sharp Corner |
| Torsion Angle (θ) | Standard Helix (30 to 40°) | Additional Classification | Stocked Product | Tolerance of OD(mm) | 0 ~ -0.02 |
| ● Inventory Product □ Manufacturer Product | ● |
Configure
Basic Attributes
-
Outer Diameter (D)(φ)
-
Flute Length (ℓ)(mm)
-
Shank Diameter (d)(mm)
-
Overall Length (L)(mm)
-
Type
- SEC-LS-PLEM2R
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
