MISUMI

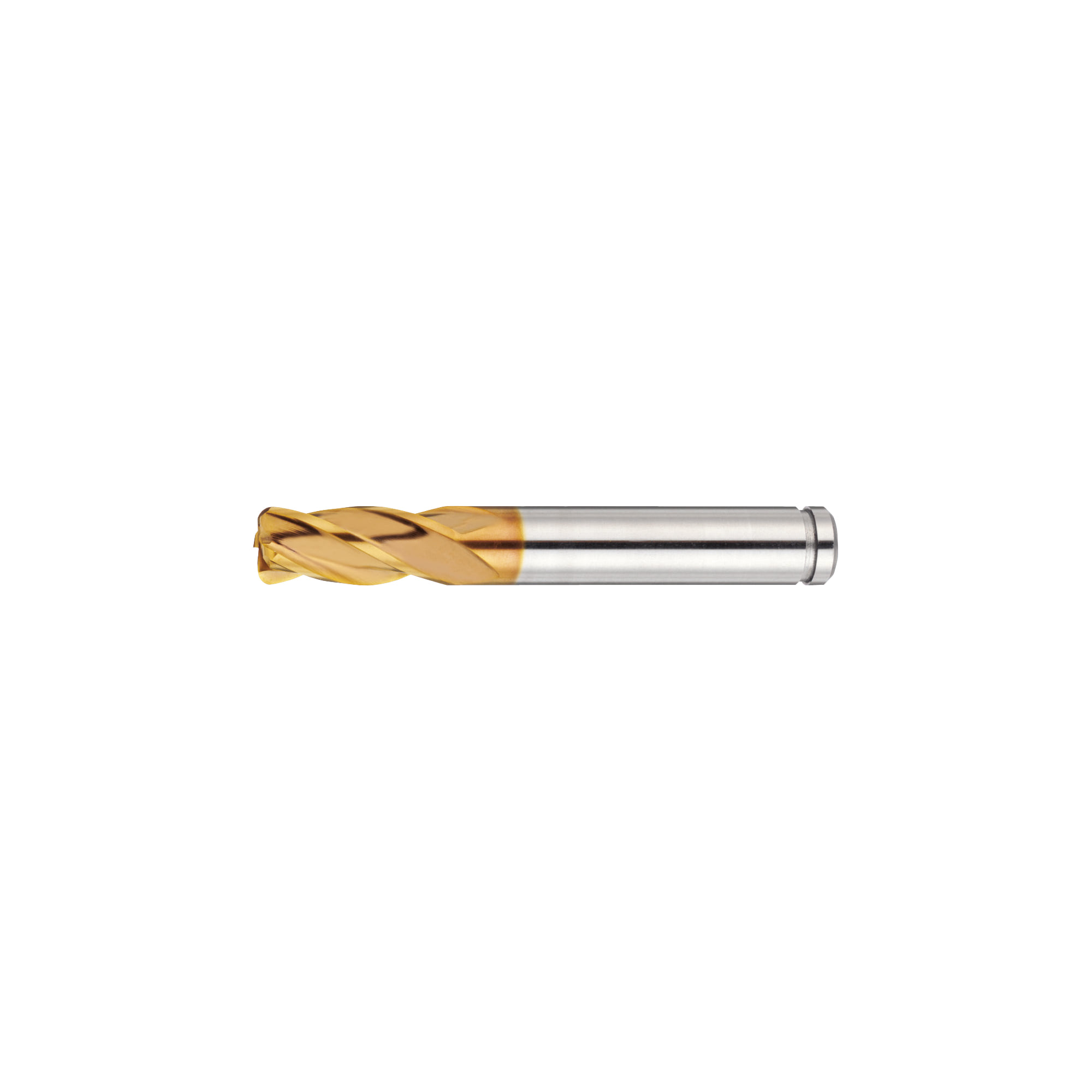

AS Coated Powdered High-Speed Steel Radius End Mill, 4-Flute / Short

AS Coated Powdered High-Speed Steel Radius End Mill, 4-Flute / Short

Mouse over image to enlarge

Part number:

Still undefined. 21 possible part numbers found.
Quantity:

Outline drawing

AS Coated Powdered High-Speed Steel Radius End Mill, 4-Flute / Short:Related Image

Part number list

Number of items
  • 1
    • Part number
    ASPM-CR-EM4S6-R0.5
    ASPM-CR-EM4S6-R1
    ASPM-CR-EM4S8-R0.5
    ASPM-CR-EM4S8-R1
    ASPM-CR-EM4S10-R0.5
    ASPM-CR-EM4S10-R1
    ASPM-CR-EM4S10-R2
    ASPM-CR-EM4S10-R3
    ASPM-CR-EM4S12-R0.5
    ASPM-CR-EM4S12-R1
    ASPM-CR-EM4S12-R2
    ASPM-CR-EM4S12-R3
    ASPM-CR-EM4S16-R1
    ASPM-CR-EM4S16-R2
    ASPM-CR-EM4S16-R3
    ASPM-CR-EM4S20-R1
    ASPM-CR-EM4S20-R2
    ASPM-CR-EM4S20-R3
    ASPM-CR-EM4S25-R2
    ASPM-CR-EM4S25-R3
    ASPM-CR-EM4S25-R5

    Outer Diameter (D)

    (φ)

    R Size

    (mm)

    Flute Length (l)

    (mm)

    Overall Length (L)

    (mm)

    Shank Diameter (d)

    (mm)

    Length Under Neck (θ)

    (Degree)

    Figure

    		Minimum order quantity
    6
    0.5
    13
    57
    6
    -
    2
    1 pieces
    6
    1
    13
    57
    6
    -
    2
    1 pieces
    8
    0.5
    19
    69
    10
    15°
    1
    1 pieces
    8
    1
    19
    69
    10
    15°
    1
    1 pieces
    10
    0.5
    22
    72
    10
    -
    2
    1 pieces
    10
    1
    22
    72
    10
    -
    2
    1 pieces
    10
    2
    22
    72
    10
    -
    2
    1 pieces
    10
    3
    22
    72
    10
    -
    2
    1 pieces
    12
    0.5
    26
    83
    12
    -
    2
    1 pieces
    12
    1
    26
    83
    12
    -
    2
    1 pieces
    12
    2
    26
    83
    12
    -
    2
    1 pieces
    12
    3
    26
    83
    12
    -
    2
    1 pieces
    16
    1
    32
    92
    16
    -
    2
    1 pieces
    16
    2
    32
    92
    16
    -
    2
    1 pieces
    16
    3
    32
    92
    16
    -
    2
    1 pieces
    20
    1
    38
    104
    20
    -
    2
    1 pieces
    20
    2
    38
    104
    20
    -
    2
    1 pieces
    20
    3
    38
    104
    20
    -
    2
    1 pieces
    25
    2
    45
    121
    25
    -
    2
    1 pieces
    25
    3
    45
    121
    25
    -
    2
    1 pieces
    25
    5
    45
    121
    25
    -
    2
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    48.17 €
    ( 57.32 € )
    5 working days
    48.17 €
    ( 57.32 € )
    5 working days
    54.41 €
    ( 64.75 € )
    5 working days
    52.24 €
    ( 62.17 € )
    5 working days
    56.00 €
    ( 66.64 € )
    5 working days
    56.00 €
    ( 66.64 € )
    5 working days
    58.77 €
    ( 69.94 € )
    5 working days
    58.77 €
    ( 69.94 € )
    5 working days
    73.16 €
    ( 87.06 € )
    5 working days
    72.59 €
    ( 86.38 € )
    5 working days
    73.16 €
    ( 87.06 € )
    5 working days
    69.72 €
    ( 82.97 € )
    5 working days
    101.25 €
    ( 120.49 € )
    5 working days
    101.25 €
    ( 120.49 € )
    5 working days
    101.25 €
    ( 120.49 € )
    5 working days
    145.82 €
    ( 173.53 € )
    5 working days
    145.82 €
    ( 173.53 € )
    5 working days
    145.82 €
    ( 173.53 € )
    5 working days
    127.81 €
    ( 152.09 € )
    5 working days
    133.02 €
    ( 158.29 € )
    5 working days
    127.81 €
    ( 152.09 € )
    5 working days
  • 1

    • More Information

    Basic information

    [Features]
    -High-speed steel powder radius 4-flute type, which can expect durability
    -It has coating with high oxidation resistance and high hardness, and achieves long service life. Effective in high-speed machining and dry machining as coating properties
    -Can be reground. Please refer to the "Regrinding Service" page for application procedures, performance range, prices, etc.

    Specifications and price

    Specifications

    AS Coated Powdered High-Speed Steel Radius End Mill, 4-Flute / Short:Related Image

    Model Number Radius
    R
    (Selection)    		Blade Length
    ℓ    		Overall Length
    L    		Under Neck Angle
    θ    		Flute Diameter
    D    		FigureShank Diameter
    d
    Flute Diameter
    D
    ASPM-CR-EM4S6 0.5 11357—626
    8 0.5 1196915°8110
    10 0.5 1 2 32272—10210
    12 0.5 1 2 32683—12212
    16 1 2 33292—16216
    20 1 2 338104—20220
    25 2 3 545121—25225


    For Cutting Conditions, Refer to >>Click here.
