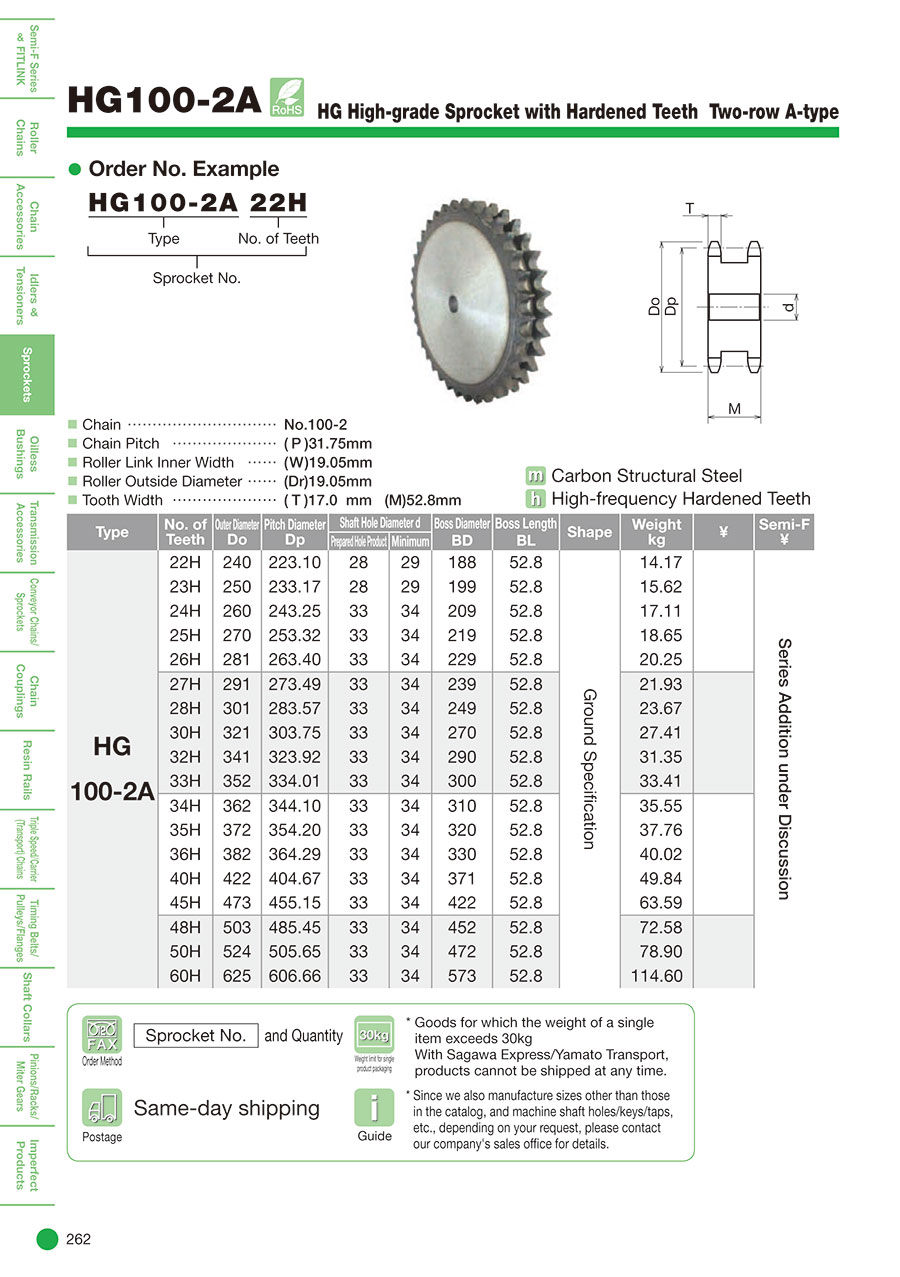

HG High-Grade Tooth Tip Curing Sprocket Model 100-2A
Rich lineup of variations in KANA standard sprocket count, number of teeth, and shape
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
HG100-2A24H
Basic information
| Sprocket Shape | Shape A | Chain No. | 100 | Number of Teeth(T) | 24 |
|---|---|---|---|---|---|
| Number of Tracks | 2 | Shaft Hole Dia. d(mm) | 33 | Type | Pilot Holes Types |
| Material | Steel | Chain Type | Standard | Shaft Type | Standard Pilot Holes |
| Minimum Shaft Bore Diameter(mm) | 34 | Surface Treatment | NA |
This page is HG High-Grade Tooth Tip Curing Sprocket Model 100-2A, part number HG100-2A24H.
You can find the detail information about specifications and dimensions on part number HG100-2A24H.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
