Configure
- Number of Teeth(T)
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- Shaft Hole Dia. d(mm)
- 13
- 16
- 18
- Maximum Shaft Hole Dia.(mm)
- 22
- 28
- 32
- 35
- 46
- 55
- 57
- Minimum Shaft Bore Diameter(mm)
- 14
- 17
- 19
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 6 working days
- Within 11 working days

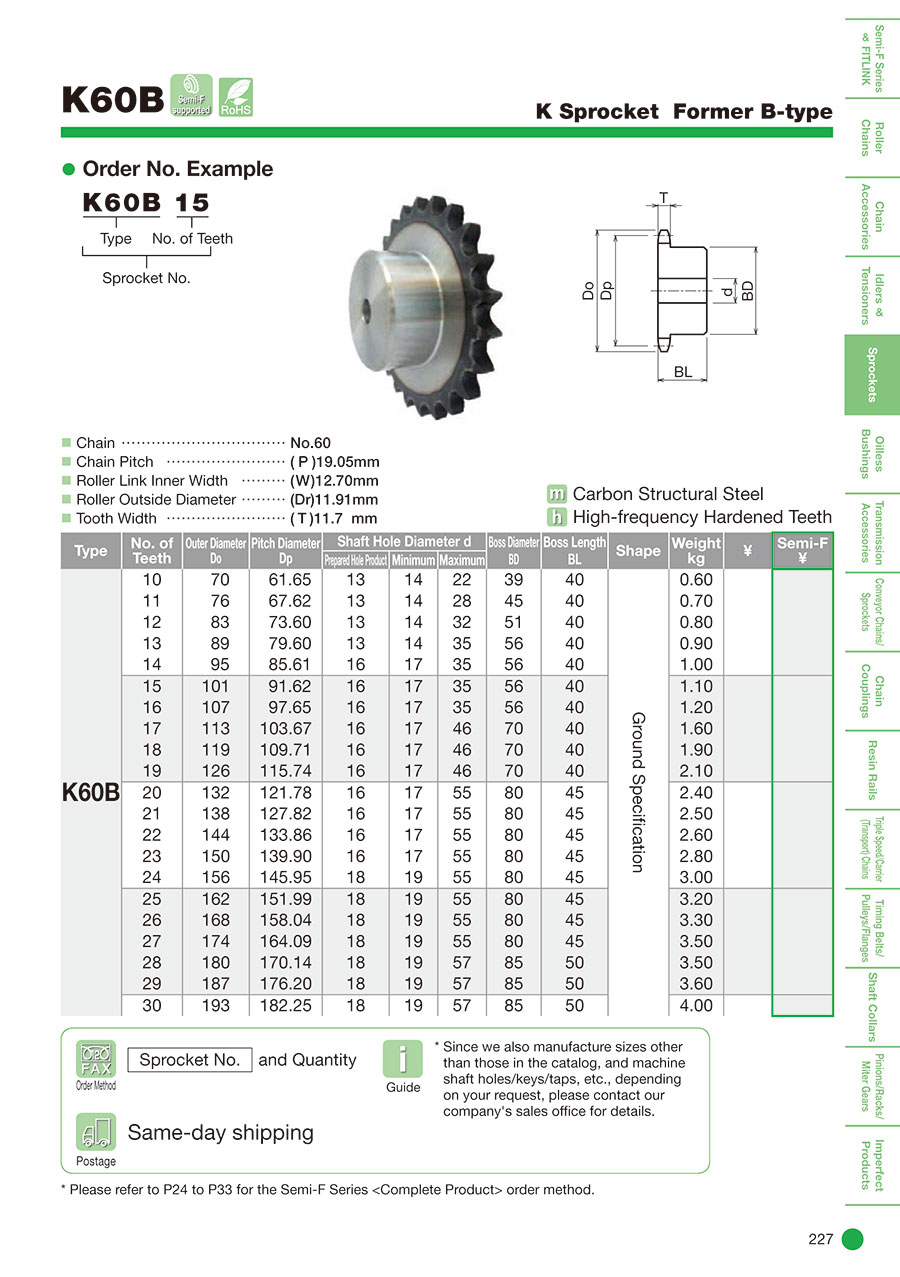

K60 Sprocket, Former B Type
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
15.00 € ( 17.85 € ) | 11 working days |
18.95 € ( 22.55 € ) | 11 working days |
22.11 € ( 26.31 € ) | 11 working days |
20.54 € ( 24.44 € ) | 6 working days |
27.64 € ( 32.89 € ) | 11 working days |
30.00 € ( 35.70 € ) | 11 working days |
33.16 € ( 39.46 € ) | 11 working days |
37.92 € ( 45.12 € ) | 11 working days |
42.67 € ( 50.78 € ) | 11 working days |
46.62 € ( 55.48 € ) | 11 working days |
47.43 € ( 56.44 € ) | 11 working days |
52.16 € ( 62.07 € ) | 11 working days |
57.69 € ( 68.65 € ) | 11 working days |
59.27 € ( 70.53 € ) | 11 working days |
64.02 € ( 76.18 € ) | 11 working days |
73.48 € ( 87.44 € ) | 11 working days |
71.91 € ( 85.57 € ) | 11 working days |
74.29 € ( 88.41 € ) | 11 working days |
77.45 € ( 92.17 € ) | 11 working days |
82.18 € ( 97.79 € ) | 11 working days |
89.29 € ( 106.26 € ) | 11 working days |
More Information
Basic information
Rich lineup of variations in KANA standard sprocket count, number of teeth, and shape. The shaft holes of this product are not yet machined, so machining of shaft holes is required when using.
