    • KATAYAMA CHAIN

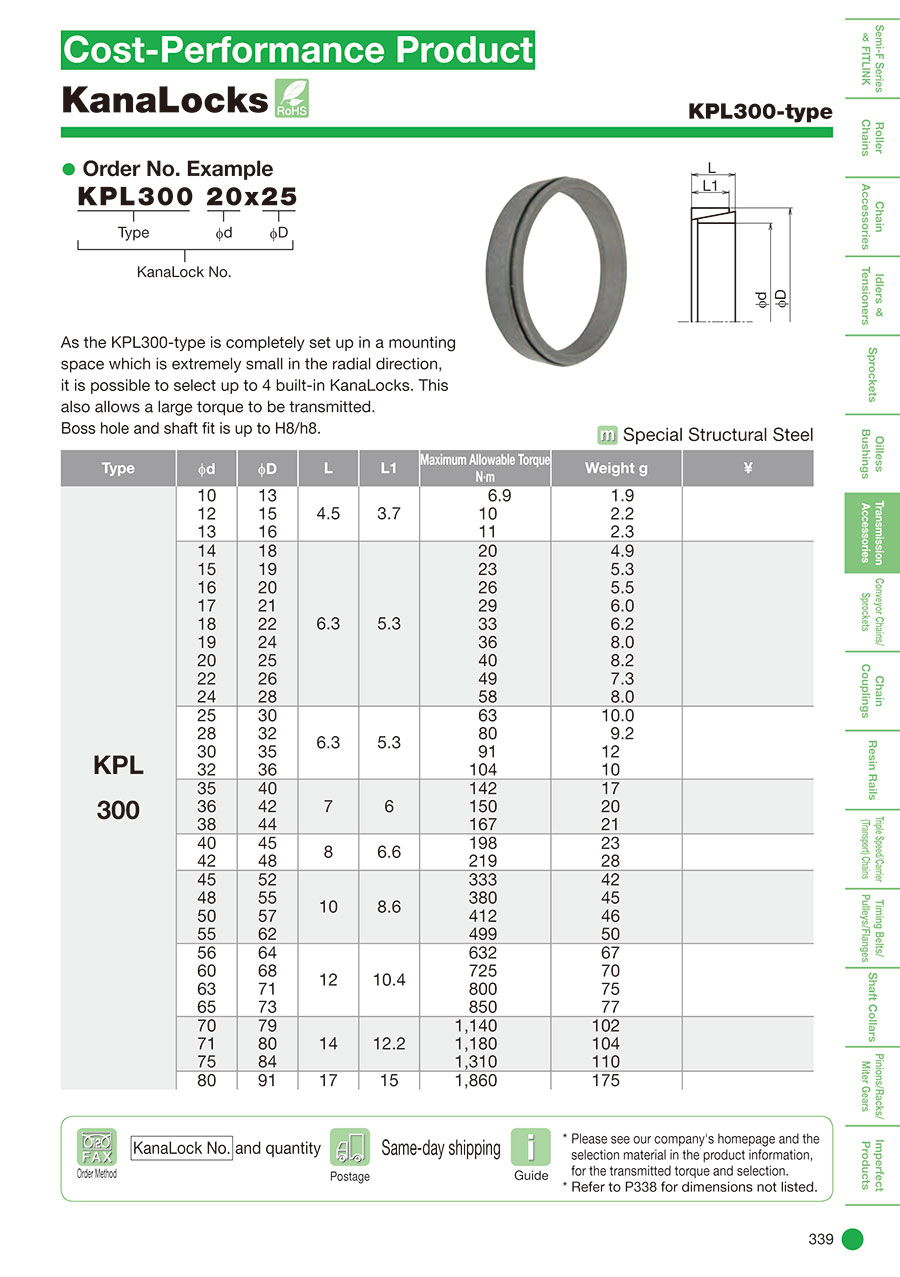

    KanaLock (Cost-Effective Product) Model KPL300

    KanaLock (Cost-Effective Product) Model KPL300

    Part number:

    Still undefined. 32 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    KPL30010X13
    KPL30012X15
    KPL30013X16
    KPL30014X18
    KPL30016X20
    KPL30017X21
    KPL30018X22
    KPL30019X24
    KPL30020X25
    KPL30022X26
    KPL30024X28
    KPL30025X30
    KPL30028X32
    KPL30030X35
    KPL30032X36
    KPL30035X40
    KPL30036X42
    KPL30038X44
    KPL30040X45
    KPL30042X48
    KPL30045X52
    KPL30048X55
    KPL30050X57
    KPL30055X62
    KPL30056X64
    KPL30060X68
    KPL30063X71
    KPL30065X73
    KPL30070X79
    KPL30071X80
    KPL30075X84
    KPL30080X91

    φd

    (mm)

    Max. Allowable Torque Range

    (N•m)

    Max. Allowable Torque

    (N•m)

    Thrust Load

    (kN)

    L1

    (mm)

    L

    (mm)

    Sleeve outer diameter φD

    (φ)

    		Minimum order quantity
    10
    2.0 to 20.0
    6.9
    1.35
    3.7
    4.5
    13
    1 pieces
    12
    2.0 to 20.0
    10
    1.65
    3.7
    4.5
    15
    1 pieces
    13
    2.0 to 20.0
    11
    1.8
    3.7
    4.5
    16
    1 pieces
    14
    2.0 to 20.0
    20
    2.85
    5.3
    6.3
    18
    1 pieces
    16
    20.1 to 50.0
    26
    3.25
    5.3
    6.3
    20
    1 pieces
    17
    20.1 to 50.0
    29
    3.45
    5.3
    6.3
    21
    1 pieces
    18
    20.1 to 50.0
    33
    3.65
    5.3
    6.3
    22
    1 pieces
    19
    20.1 to 50.0
    36
    3.85
    5.3
    6.3
    24
    1 pieces
    20
    20.1 to 50.0
    40
    4
    5.3
    6.3
    25
    1 pieces
    22
    20.1 to 50.0
    49
    4.45
    5.3
    6.3
    26
    1 pieces
    24
    50.1 to 70.0
    58
    4.85
    5.3
    6.3
    28
    1 pieces
    25
    50.1 to 70.0
    63
    5
    5.3
    6.3
    30
    1 pieces
    28
    70.1 to 100.0
    80
    5.7
    5.3
    6.3
    32
    1 pieces
    30
    70.1 to 100.0
    91
    6.1
    5.3
    6.3
    35
    1 pieces
    32
    100.1 to 150.0
    104
    6.5
    5.3
    6.3
    36
    1 pieces
    35
    100.1 to 150.0
    142
    8.1
    6
    7
    40
    1 pieces
    36
    100.1 to 150.0
    150
    8.3
    6
    7
    42
    1 pieces
    38
    150.1 to 200.0
    167
    8.8
    6
    7
    44
    1 pieces
    40
    150.1 to 200.0
    198
    9.9
    6.6
    8
    45
    1 pieces
    42
    200.1 to 300.0
    219
    10.4
    6.6
    8
    48
    1 pieces
    45
    300.1 to 500.0
    333
    14.8
    8.6
    10
    52
    1 pieces
    48
    300.1 to 500.0
    380
    15.8
    8.6
    10
    55
    1 pieces
    50
    300.1 to 500.0
    412
    16.5
    8.6
    10
    57
    1 pieces
    55
    300.1 to 500.0
    499
    18
    8.6
    10
    62
    1 pieces
    56
    500.1 to 700.0
    632
    22.5
    10.4
    12
    64
    1 pieces
    60
    700.1 to 1000.0
    725
    24
    10.4
    12
    68
    1 pieces
    63
    700.1 to 1000.0
    800
    25
    10.4
    12
    71
    1 pieces
    65
    700.1 to 1000.0
    850
    26
    10.4
    12
    73
    1 pieces
    70
    1000.1 to 3000.0
    1140
    32
    12.2
    14
    79
    1 pieces
    71
    1000.1 to 3000.0
    1180
    33
    12.2
    14
    80
    1 pieces
    75
    1000.1 to 3000.0
    1310
    35
    12.2
    14
    84
    1 pieces
    80
    1000.1 to 3000.0
    1860
    46.5
    15
    17
    91
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    7.44 €
    ( 8.85 € )
    11 working days
    7.44 €
    ( 8.85 € )
    6 working days
    7.44 €
    ( 8.85 € )
    11 working days
    7.45 €
    ( 8.87 € )
    11 working days
    5.43 €2.82 €
    ( 3.36 € )
    Stock item: 1 working dayAvailable for same-day shipping
    5.44 €2.61 €
    ( 3.11 € )
    Stock item: 1 working dayAvailable for same-day shipping
    7.97 €
    ( 9.48 € )
    11 working days
    8.06 €
    ( 9.59 € )
    6 working days
    8.06 €
    ( 9.59 € )
    6 working days
    9.12 €
    ( 10.85 € )
    11 working days
    9.13 €
    ( 10.86 € )
    11 working days
    9.15 €
    ( 10.89 € )
    11 working days
    9.13 €
    ( 10.86 € )
    11 working days
    6.30 €
    ( 7.50 € )
    Stock item: 1 working dayAvailable for same-day shipping
    6.80 €3.26 €
    ( 3.88 € )
    Stock item: 1 working dayAvailable for same-day shipping
    9.20 €
    ( 10.95 € )
    11 working days
    10.88 €
    ( 12.95 € )
    11 working days
    10.88 €
    ( 12.95 € )
    11 working days
    10.89 €
    ( 12.96 € )
    6 working days
    12.59 €
    ( 14.98 € )
    11 working days
    13.52 €
    ( 16.09 € )
    6 working days
    14.38 €
    ( 17.11 € )
    11 working days
    15.20 €
    ( 18.09 € )
    11 working days
    11.32 €5.89 €
    ( 7.01 € )
    Stock item: 1 working dayAvailable for same-day shipping
    18.67 €
    ( 22.22 € )
    11 working days
    20.35 €
    ( 24.22 € )
    11 working days
    22.86 €
    ( 27.20 € )
    11 working days
    24.53 €
    ( 29.19 € )
    11 working days
    28.03 €
    ( 33.36 € )
    11 working days
    29.69 €
    ( 35.33 € )
    11 working days
    22.70 €12.26 €
    ( 14.59 € )
    Stock item: 1 working dayAvailable for same-day shipping
    35.20 €
    ( 41.89 € )
    11 working days
  • 1

    • More Information

    Basic information

    [Features]
    · For model KPL300, mounting space has been extremely reduced in a radial direction, embedding of up to 4 KanaLocks can be selected.
    · This facilitates great torque transmission.
    · Boss hole and shaft hole fitting is up to H8/h8
