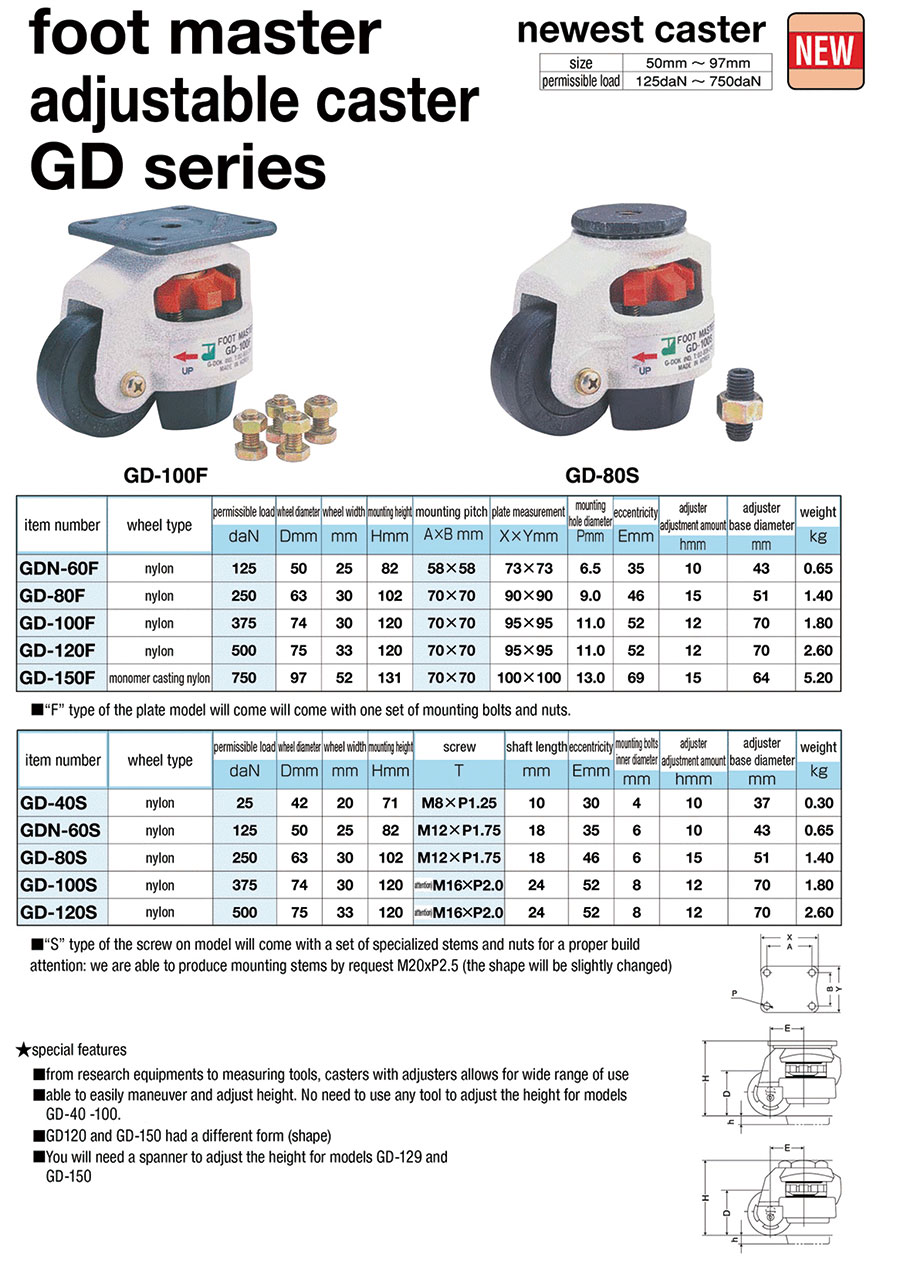

Foot Master Adjustable Castors, Swivel
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| GD-100F |
| GD-120F |
| GDN-40S |
| GDN-60F |
| GDN-60S |
| GDN-80F |
| GDN-80S |
| GDR-60F |
| GDR-60S |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Caster Type | Mounting Height H (mm) | Load Range (daN) | Allowable Load (daN) | Mounting Hole Type | Mounting Hole Pitch, Long Length Direction L1 (mm) | Mounting Hole Pitch, Short Length Direction W1 (mm) | Plate Length L (mm) | Plate Width W (mm) | Thread Dia. | Wheel Dia. D (mm) | Wheel Width B (mm) | Swivel Radius (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
157.93 € | 1 | Available | 6 Days | 10 | Plate Type Universal / With Adjuster | 120 | 320.01~485.00 | 375 | Round Hole | 70 | 70 | 95 | 95 | - | 75 | 30 | 95 | |
147.53 € | 1 | 6 Days | 10 | Plate Type Universal / With Adjuster | 120 | 485.01~750.00 | 500 | Round Hole | 70 | 70 | 95 | 95 | - | 75 | 30 | 95 | ||
68.21 € | 1 | Available | 10 Days | 10 | Screw-In Type / With Adjuster | 71 | ~35.00 | 25 | - | - | - | - | - | [M8] M8 x 1.25 | 42 | 20 | 65 | |
95.39 € | 1 | Available |
Same day
Stock | 10 | Plate Type Universal / With Adjuster | 82 | 80.01~140.00 | 125 | Round Hole | 58 | 58 | 73 | 73 | - | 50 | 25 | 65 | |
112.22 € | 1 | Available | 6 Days | 10 | Screw-In Type / With Adjuster | 82 | 80.01~140.00 | 125 | - | - | - | - | - | [M12(P1.75)] M12×P1.75 | 50 | 25 | 81 | |
115.49 € | 1 | 6 Days | 10 | Plate Type Universal / With Adjuster | 102 | 220.01~320.00 | 250 | Round Hole | 70 | 70 | 90 | 90 | - | 63 | 28 | 81 | ||
110.31 € | 1 | Available | 6 Days | 10 | Screw-In Type / With Adjuster | 103 | 220.01~320.00 | 250 | - | - | - | - | - | [M12(P1.75)] M12×P1.75 | 63 | 28 | 95 | |
111.33 € | 1 | 10 Days | 10 | Plate Type Universal / With Adjuster | 82 | 80.01~140.00 | 125 | Round Hole | 58 | 58 | 73 | 73 | - | 50 | 25 | 65 | ||
111.50 € | 4 | 10 Days | 10 | Screw-In Type / With Adjuster | 82 | 80.01~140.00 | 125 | - | - | - | - | - | [M12(P1.75)] M12×P1.75 | 50 | 25 | 65 |
Loading...
Basic information
| Stopper | NA | Wheel Material | Nylon, Black | Wheel Characteristics | Oil Resistance |
|---|---|---|---|---|---|
| Fitting Material | Steel | Application | Steel/Woodwork Furniture / OA equipment/information and communication equipment / Factory facilities | Load Category | Ultra Heavy Load |
| Wheel Bearings | NA | With Adjuster Function | With Adjuster Function |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Caster Type
- Plate Type Universal
- Screw-In Type
- With Adjuster
-
Mounting Height H(mm)
-
Load Range(daN)
- ~35.00
- 80.01~140.00
- 220.01~320.00
- 320.01~485.00
- 485.01~750.00
-
Allowable Load(daN)
-
Mounting Hole Type
- Round Hole
-
Mounting Hole Pitch, Long Length Direction L1(mm)
-
Mounting Hole Pitch, Short Length Direction W1(mm)
-
Plate Length L(mm)
-
Plate Width W(mm)
-
Thread Dia.
- M8
- M12(P1.75)
- M8
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Swivel Radius(mm)
-
Type
- GD
- GDR
Filter by standard shipping days
-
- All
- Same day
- 6 Days or Less
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
