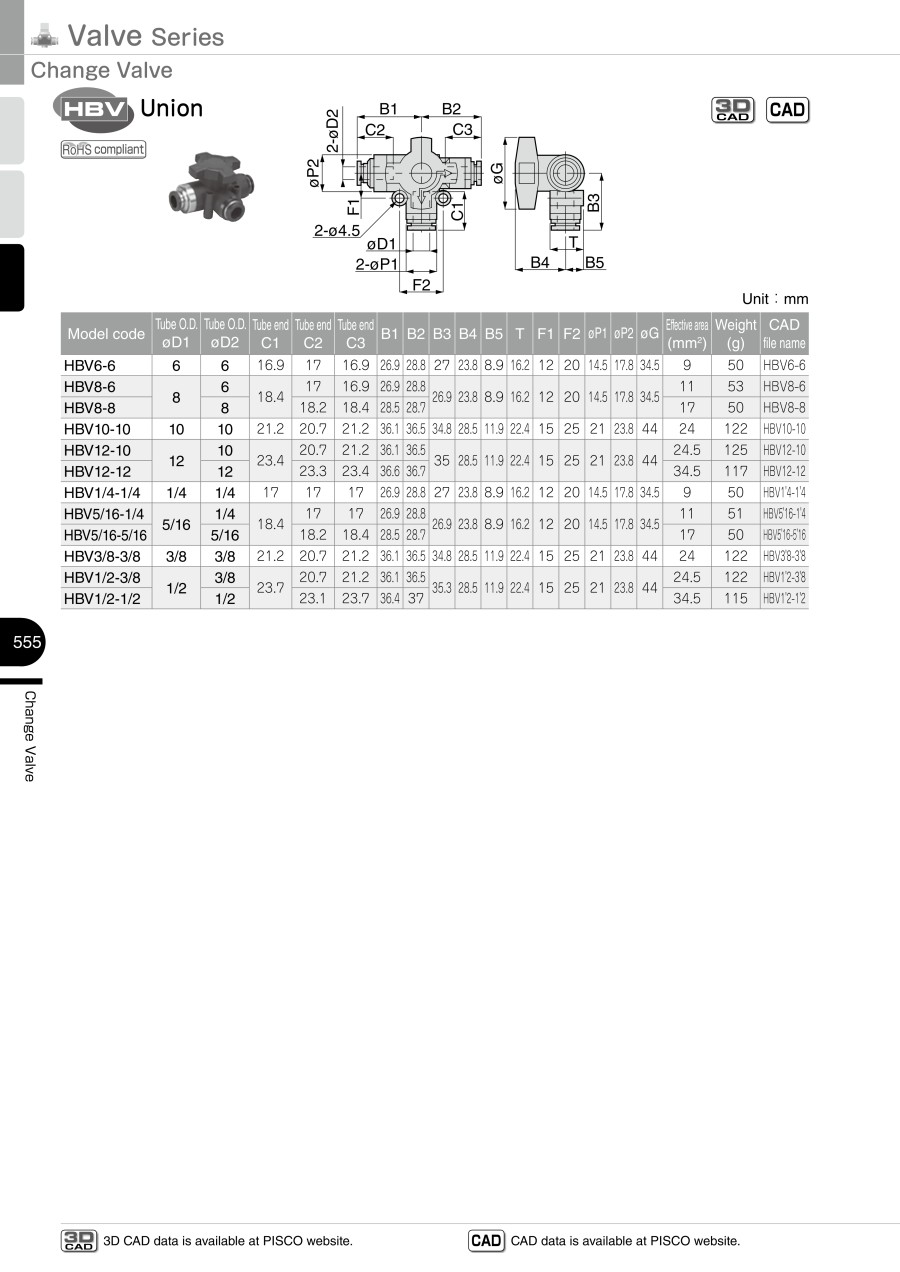

Channel Switching Valve Change Valve Union
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| HBV1/2-3/8 |
| HBV1/4-1/4 |
| HBV3/8-3/8 |
| HBV5/16-1/4 |
| HBV5/16-5/16 |
| HBV6-6 |
| HBV8-6 |
| HBV8-8 |
| HBV10-10 |
| HBV12-10 |
| HBV12-12 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Connection Tube Diameter | Effective Sectional Area (mm2) | Effective Sectional Area【classification】 (mm2) | Connection tube diameter 2 | |
|---|---|---|---|---|---|---|---|---|---|
25.04 € | 1 | 10 Days | - | 1/2 | 24.5 | Up to 30 | 3/8 | ||
22.28 € | 1 | 12 Days | - | 1/4 | 9 | Up to 10 | 1/4 | ||
25.04 € | 1 | 10 Days | - | 3/8 | 24 | Up to 30 | 3/8 | ||
22.30 € | 1 | 10 Days | - | 5/16 | 11 | Up to 15 | 1/4 | ||
22.28 € | 1 | 10 Days | - | 5/16 | 17 | Up to 20 | 5/16 | ||
22.08 € | 1 | 5 Days | 10 | φ6 | 9 | Up to 10 | φ6 | ||
22.32 € | 1 | Available | 5 Days | - | φ8 | 11 | Up to 15 | φ6 | |
21.72 € | 1 | 5 Days | 10 | φ8 | 17 | Up to 20 | φ8 | ||
23.81 € | 1 | 5 Days | 10 | φ10 | 24 | Up to 30 | φ10 | ||
25.07 € | 1 | 10 Days | - | φ12 | 24.5 | Up to 30 | φ10 | ||
23.07 € | 1 | Available | 5 Days | 10 | φ12 | 34.5 | Up to 40 | φ12 |
Loading...
Basic information
| Shape | One-Touch Coupling Type | Number of Ports | 3-Port | No. of Positions | 2-position direction switching |
|---|---|---|---|---|---|
| Operation Method | Knob | Pipe Port Type | Single-Action Coupling | Mounting Method | Bottom |
| State of Operation Retention | Holding |
Configure
Basic Attributes
-
Connection Tube Diameter
- φ6
- φ8
- φ10
- φ12
- 1/4
- 5/16
- 3/8
- 1/2
-
Effective Sectional Area(mm2)
-
Effective Sectional Area【classification】(mm2)
-
Connection tube diameter 2
- 1/4
- 3/8
- 5/16
- φ6
- φ8
- φ10
- φ12
-
Type
- HBV
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
- 10 Days or Less
- 12 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
