NIHON PISCO

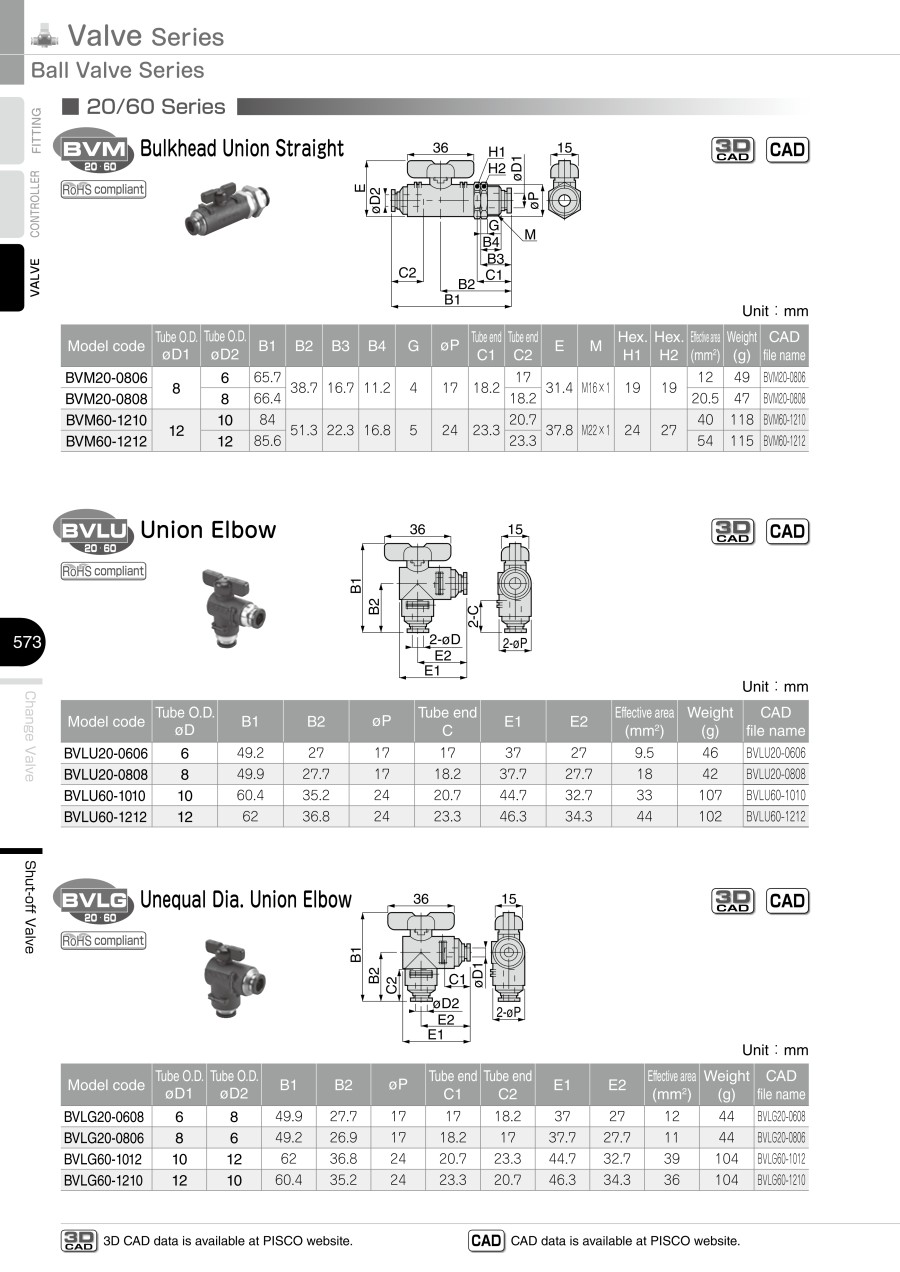

Shut-off Valve Ball Valve Union Elbow

Shut-off Valve Ball Valve Union Elbow

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    BVLU20-0606
    BVLU20-0808
    BVLU60-1010
    BVLU60-1212

    Connection Tube Diameter

    Effective Sectional Area

    (mm2)

    Effective Sectional Area【classification】

    (mm2)

    		Minimum order quantity
    φ6
    9.5
    Up to 10
    1 pieces
    φ8
    18
    Up to 20
    1 pieces
    φ10
    33
    Up to 40
    1 pieces
    φ12
    44
    Up to 50
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    20.32 €
    ( 24.18 € )
    6 working days
    20.29 €
    ( 24.15 € )
    13 working days
    23.03 €
    ( 27.41 € )
    11 working days
    23.00 €
    ( 27.37 € )
    6 working days
  • 1

    • More Information

    Basic information

    Effective sectional area is secured according to the size of the tube used.
