    • NIHON PISCO

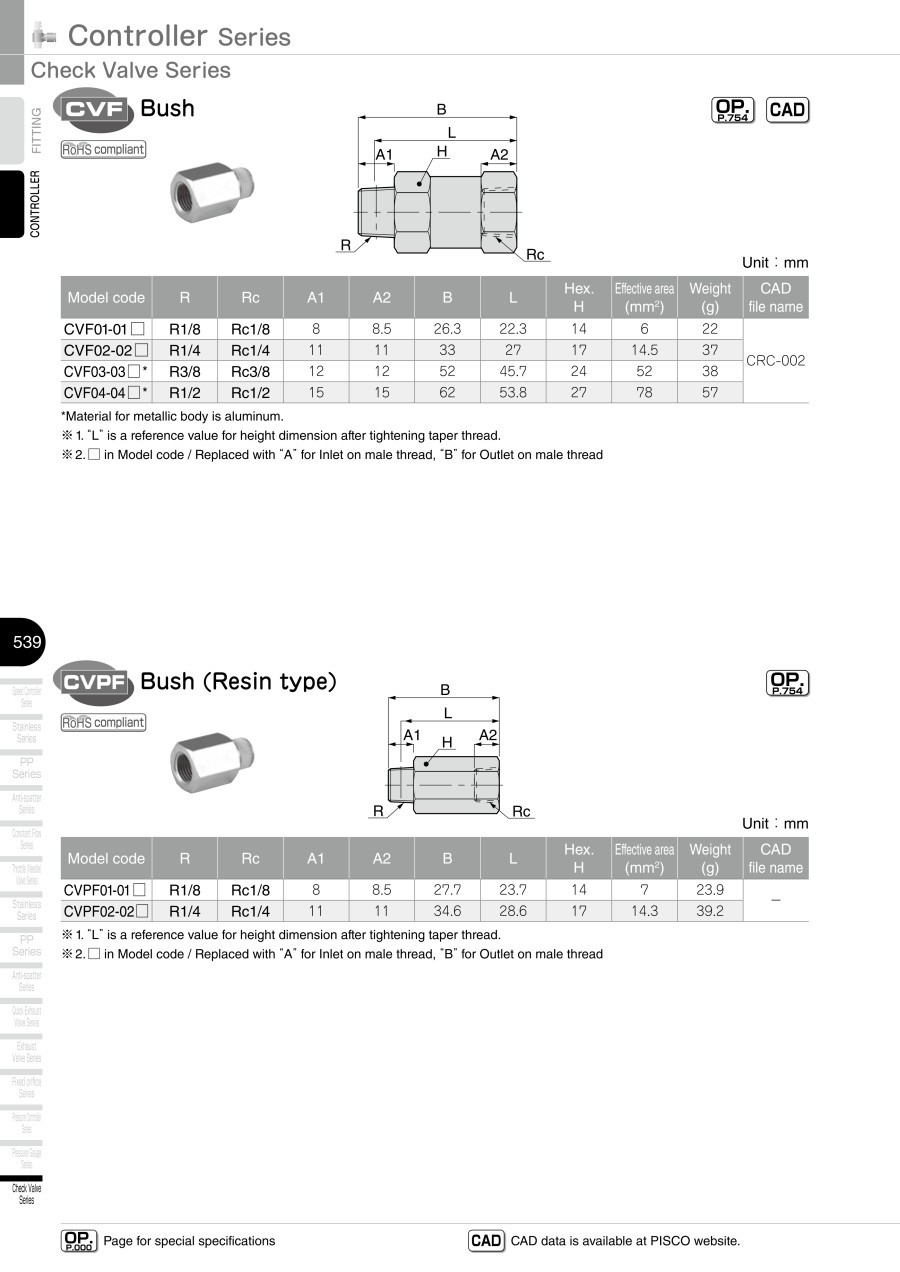

    Non-Return Valve, Check Valve Bushing

    Non-Return Valve, Check Valve Bushing

    Part number:

    Still undefined. 7 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    CVF01-01A
    CVF01-01B
    CVF02-02A
    CVF02-02B
    CVF03-03A
    CVF04-04A
    CVF04-04B

    Main Body Material

    Input Side, Port Type P

    Output Side, Port Type A

    Effective Sectional Area

    (mm2)

    Effective Sectional Area【classification】

    (㎜2)

    Types of connection port

    Nominal Mounting Screw

    Types of connection port 2

    Nominal Mounting Screw 2

    		Minimum order quantity
    Brass
    Threaded
    Tapped
    6
    Up to 10
    R
    1/8
    Rc
    1/8
    1 pieces
    Brass
    Tapped
    Threaded
    6
    Up to 10
    Rc
    1/8
    R
    1/8
    1 pieces
    Brass
    Threaded
    Tapped
    14.5
    Up to 15
    R
    1/4
    Rc
    1/4
    1 pieces
    Brass
    Tapped
    Threaded
    14.5
    Up to 15
    Rc
    1/4
    R
    1/4
    1 pieces
    Aluminum
    Threaded
    Tapped
    52
    Up to 100
    R
    3/8
    Rc
    3/8
    1 pieces
    Aluminum
    Threaded
    Tapped
    78
    Up to 100
    R
    1/2
    Rc
    1/2
    1 pieces
    Aluminum
    Tapped
    Threaded
    78
    Up to 100
    Rc
    1/2
    R
    1/2
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    16.87 €
    ( 20.08 € )
    6 working days
    17.47 €8.39 €
    ( 9.98 € )
    Stock item: 1 working dayAvailable for same-day shipping
    18.85 €
    ( 22.43 € )
    6 working days
    19.23 €9.23 €
    ( 10.98 € )
    Stock item: 1 working dayAvailable for same-day shipping
    33.22 €
    ( 39.53 € )
    13 working days
    37.10 €
    ( 44.15 € )
    6 working days
    37.10 €
    ( 44.15 € )
    13 working days
  • 1

    • More Information

    Basic information

    [Features]
    · It is possible to retain the pressure from the output side because only air input from one side flows.
    · Resin type is low cost and light weight.
    · Can be used with piping for vacuum retention and low pressure.
