One Touch Fitting Type Long Stroke Suction Mark Prevention Type VPC without Cover

One Touch Fitting Type Long Stroke Suction Mark Prevention Type VPC without Cover

Part number:

Still undefined. 24 possible part numbers found.
Quantity:

Product information

Dimensions

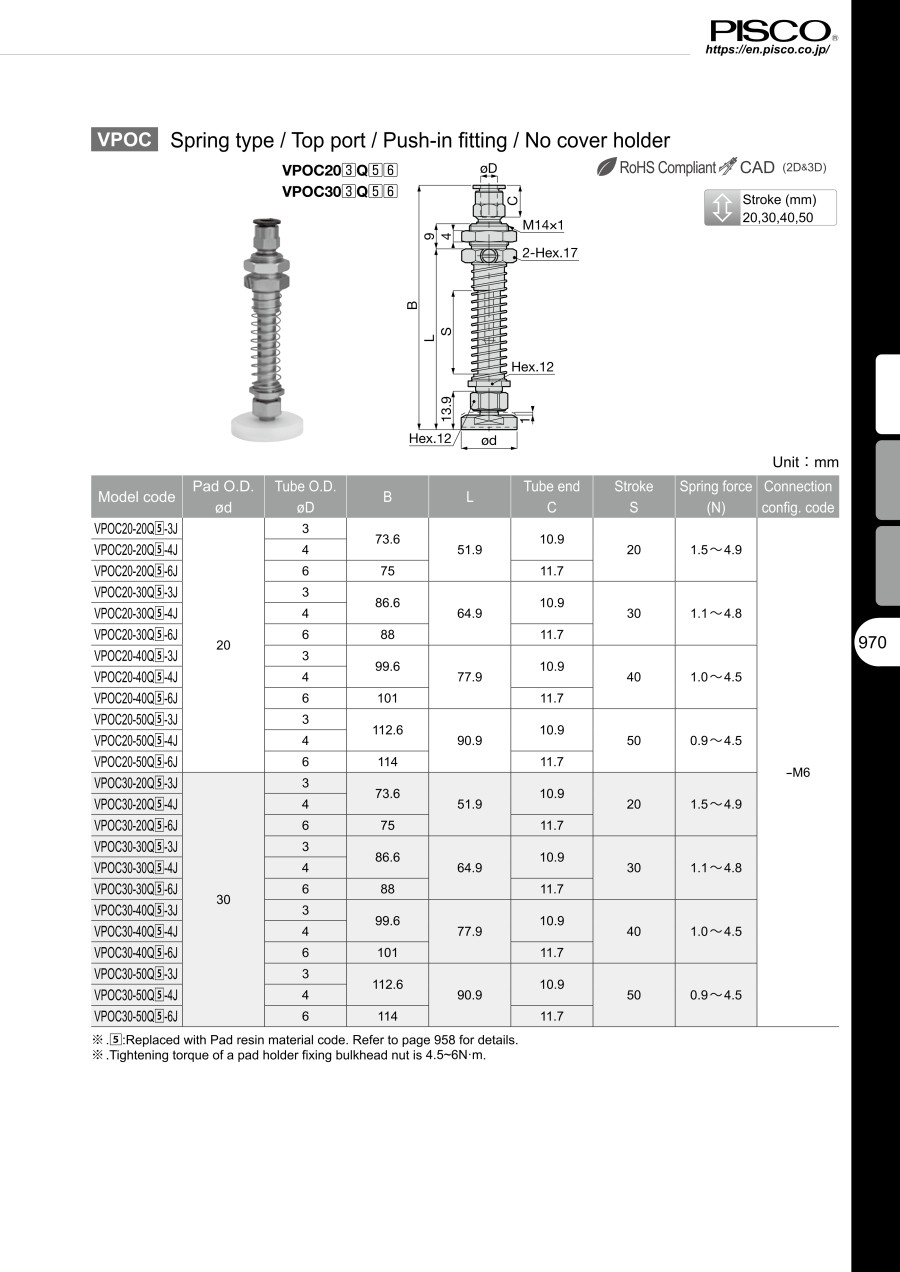

One Touch Fitting Type Long Stroke Suction Mark Prevention Type VPC without Cover

Standard table

Model codePad O.D.
ød		Tube O.D.
øD		BLTube end
C		Stroke
S		Spring force
(N)		Connection
config. code
VPOC20-20Q[5]-6J2067551.911.7201.5~4.9-M6
VPOC20-30Q[5]-6J8864.9301.1~4.8
VPOC20-40Q[5]-6J10177.9401.0~4.5
VPOC20-50Q[5]-6J11490.9500.9~4.5
VPOC30-20Q[5]-6J307551.9201.5~4.9
VPOC30-30Q[5]-6J8864.9301.1~4.8
VPOC30-40Q[5]-6J10177.9401.0~4.5
VPOC30-50Q[5]-6J11490.9500.9~4.5

Units: mm

*[5]: Replaced with Pad resin material code. Refer to the catalog for details.
*Tightening torque of a pad holder fixing bulkhead nut is 4.5~6 N·m.

Part number list

Number of items
  • 1
    • Part number
    VPOC20-20QK-6J
    VPOC20-20QKE-6J
    VPOC20-20QM-6J
    VPOC20-30QK-6J
    VPOC20-30QKE-6J
    VPOC20-30QM-6J
    VPOC20-40QK-6J
    VPOC20-40QKE-6J
    VPOC20-40QM-6J
    VPOC20-50QK-6J
    VPOC20-50QKE-6J
    VPOC20-50QM-6J
    VPOC30-20QK-6J
    VPOC30-20QKE-6J
    VPOC30-20QM-6J
    VPOC30-30QK-6J
    VPOC30-30QKE-6J
    VPOC30-30QM-6J
    VPOC30-40QK-6J
    VPOC30-40QKE-6J
    VPOC30-40QM-6J
    VPOC30-50QK-6J
    VPOC30-50QKE-6J
    VPOC30-50QM-6J

    Resin Group Material

    Usage Environment

    Color

    Outer Diameter D

    (φ)

    Springs Power

    (N)

    Stroke

    (mm)

    Full length B

    (mm)

    		Minimum order quantity
    [PEEK] PEEK
    Standard
    -
    20
    1.5 to 4.9
    20
    75.1
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    20
    1.5 to 4.9
    20
    75.1
    1 pieces
    POM
    Standard
    [White] White
    20
    1.5 to 4.9
    20
    75.1
    1 pieces
    [PEEK] PEEK
    Standard
    -
    20
    1.1 to 4.8
    30
    88.1
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    20
    1.1 to 4.8
    30
    88.1
    1 pieces
    POM
    Standard
    [White] White
    20
    1.1 to 4.8
    30
    88.1
    1 pieces
    [PEEK] PEEK
    Standard
    -
    20
    1.0 to 4.5
    40
    101.1
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    20
    1.0 to 4.5
    40
    101.1
    1 pieces
    POM
    Standard
    [White] White
    20
    1.0 to 4.5
    40
    101.1
    1 pieces
    [PEEK] PEEK
    Standard
    -
    20
    0.9 to 4.5
    50
    114.1
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    20
    0.9 to 4.5
    50
    114.1
    1 pieces
    POM
    Standard
    [White] White
    20
    0.9 to 4.5
    50
    114.1
    1 pieces
    [PEEK] PEEK
    Standard
    -
    30
    1.5 to 4.9
    20
    75.1
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    30
    1.5 to 4.9
    20
    75.1
    1 pieces
    POM
    Standard
    [White] White
    30
    1.5 to 4.9
    20
    75.1
    1 pieces
    [PEEK] PEEK
    Standard
    -
    30
    1.1 to 4.8
    30
    88.1
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    30
    1.1 to 4.8
    30
    88.1
    1 pieces
    POM
    Standard
    [White] White
    30
    1.1 to 4.8
    30
    88.1
    1 pieces
    [PEEK] PEEK
    Standard
    -
    30
    1.0 to 4.5
    40
    101.1
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    30
    1.0 to 4.5
    40
    101.1
    1 pieces
    POM
    Standard
    [White] White
    30
    1.0 to 4.5
    40
    101.1
    1 pieces
    [PEEK] PEEK
    Standard
    -
    30
    0.9 to 4.5
    50
    114.1
    1 pieces
    [PEEK] Conductive PEEK
    Standard / Static electricity diffusion
    Black
    30
    0.9 to 4.5
    50
    114.1
    1 pieces
    POM
    Standard
    [White] White
    30
    0.9 to 4.5
    50
    114.1
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    90.83 €
    ( 108.09 € )
    11 working days
    104.75 €
    ( 124.65 € )
    11 working days
    83.41 €
    ( 99.26 € )
    11 working days
    91.75 €
    ( 109.18 € )
    11 working days
    105.66 €
    ( 125.74 € )
    11 working days
    84.34 €
    ( 100.36 € )
    11 working days
    92.69 €
    ( 110.30 € )
    11 working days
    106.60 €
    ( 126.85 € )
    11 working days
    85.26 €
    ( 101.46 € )
    11 working days
    93.62 €
    ( 111.41 € )
    11 working days
    107.53 €
    ( 127.96 € )
    11 working days
    86.20 €
    ( 102.58 € )
    11 working days
    104.75 €
    ( 124.65 € )
    11 working days
    123.30 €
    ( 146.73 € )
    11 working days
    92.69 €
    ( 110.30 € )
    11 working days
    105.66 €
    ( 125.74 € )
    11 working days
    124.21 €
    ( 147.81 € )
    11 working days
    93.62 €
    ( 111.41 € )
    11 working days
    106.60 €
    ( 126.85 € )
    11 working days
    125.15 €
    ( 148.93 € )
    11 working days
    94.54 €
    ( 112.50 € )
    11 working days
    107.53 €
    ( 127.96 € )
    11 working days
    126.08 €
    ( 150.04 € )
    11 working days
    95.47 €
    ( 113.61 € )
    11 working days
  • 1

    • More Information

    Basic information

    Suction is possible even when distance between pad and workpiece is not fixed. *The CAD data for this series is being revised. This will be available as soon as modifications are complete.
