- Rubber Group Material
- Nitrile Rubber
- Nitrile Rubber
- Silicone Rubber
- Silicone Rubber
- Silicone Rubber +Carbon
- Fluorosilicone rubber
- Usage Environment
- Color
- Black
- White
- White
- Salmon Pink
- Outer Diameter D(φ)
- 4
- 6
- 8
- 10
- 15
- 20
- 30
- 40
- Height L1(mm)
- 12.2
- 14
- 15
- Springs Power(N)
- Full length B(mm)
- 64.4
- 66.2
- 67.2
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 11 working days
Vacuum Pad, Soft Type, VPD, Barb Fitting Type
Part number:
possible part numbers found.Product information

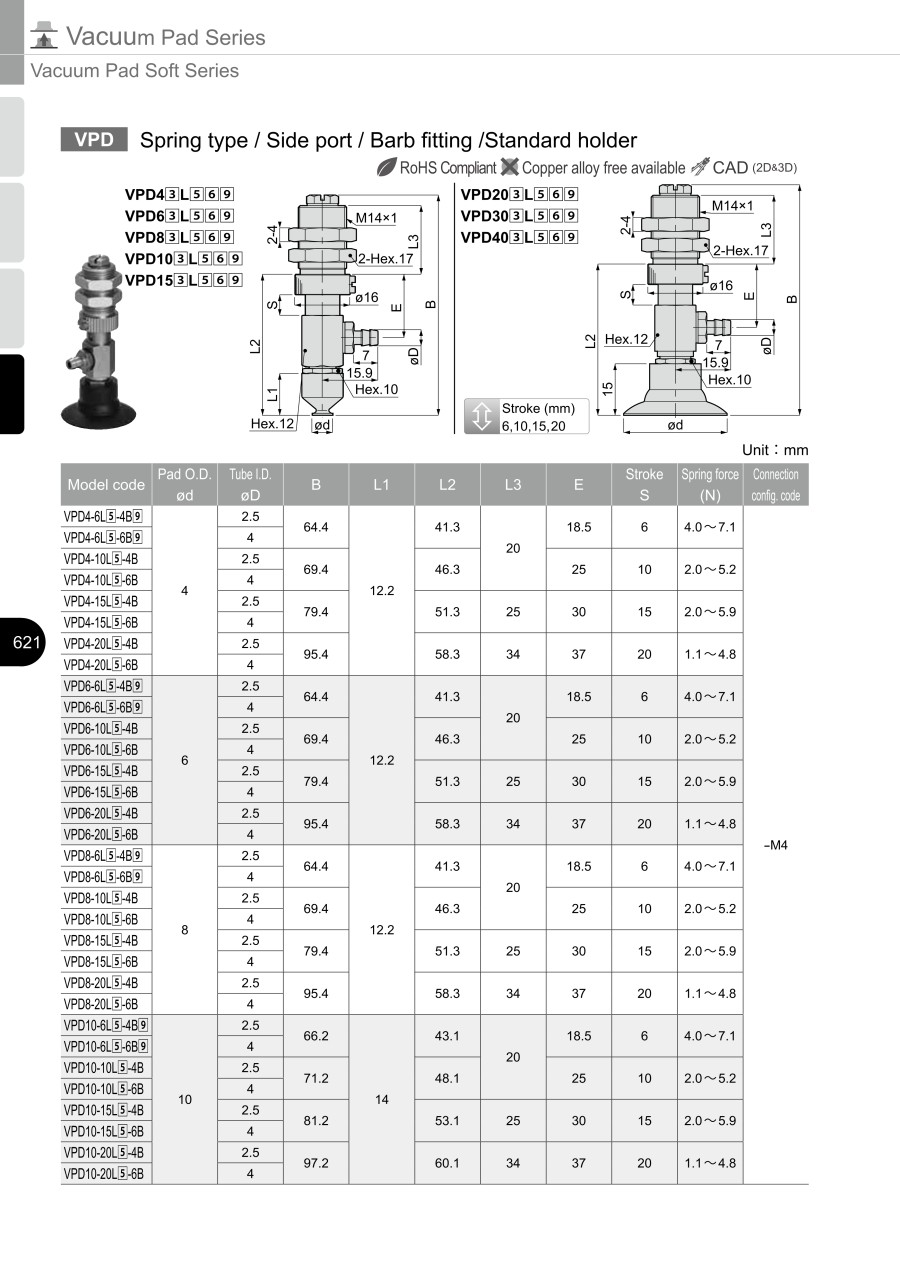

Dimensions
Standard table
| Model code | Pad O.D. ød | Tube I.D. øD | B | L1 | L2 | L3 | E | Stroke S | Spring force (N) | Connection config. code |
|---|---|---|---|---|---|---|---|---|---|---|
| VPD4-6L[5]-6B[9] | 4 | 4 | 64.4 | 12.2 | 41.3 | 20 | 18.5 | 6 | 4.0~7.1 | -M4 |
| VPD4-10L[5]-6B | 69.4 | 46.3 | 25 | 10 | 2.0~5.2 | |||||
| VPD4-15L[5]-6B | 79.4 | 51.3 | 25 | 30 | 15 | 2.0~5.9 | ||||
| VPD4-20L[5]-6B | 95.4 | 58.3 | 34 | 37 | 20 | 1.1~4.8 | ||||
| VPD6-6L[5]-6B[9] | 6 | 64.4 | 41.3 | 20 | 18.5 | 6 | 4.0~7.1 | |||
| VPD6-10L[5]-6B | 69.4 | 46.3 | 25 | 10 | 2.0~5.2 | |||||
| VPD6-15L[5]-6B | 79.4 | 51.3 | 25 | 30 | 15 | 2.0~5.9 | ||||
| VPD6-20L[5]-6B | 95.4 | 58.3 | 34 | 37 | 20 | 1.1~4.8 | ||||
| VPD8-6L[5]-6B[9] | 8 | 64.4 | 41.3 | 20 | 18.5 | 6 | 4.0~7.1 | |||
| VPD8-10L[5]-6B | 69.4 | 46.3 | 25 | 10 | 2.0~5.2 | |||||
| VPD8-15L[5]-6B | 79.4 | 51.3 | 25 | 30 | 15 | 2.0~5.9 | ||||
| VPD8-20L[5]-6B | 95.4 | 58.3 | 34 | 37 | 20 | 1.1~4.8 | ||||
| VPD10-6L[5]-6B[9] | 10 | 66.2 | 14 | 43.1 | 20 | 18.5 | 6 | 4.0~7.1 | ||
| VPD10-10L[5]-6B | 71.2 | 48.1 | 25 | 10 | 2.0~5.2 | |||||
| VPD10-15L[5]-6B | 81.2 | 53.1 | 25 | 30 | 15 | 2.0~5.9 | ||||
| VPD10-20L[5]-6B | 97.2 | 60.1 | 34 | 37 | 20 | 1.1~4.8 | ||||
| VPD15-6L[5]-6B[9] | 15 | 66.2 | 43.1 | 20 | 18.5 | 6 | 4.0~7.1 | |||
| VPD15-10L[5]-6B | 71.2 | 48.1 | 25 | 10 | 2.0~5.2 | |||||
| VPD15-15L[5]-6B | 81.2 | 53.1 | 25 | 30 | 15 | 2.0~5.9 | ||||
| VPD15-20L[5]-6B | 97.2 | 60.1 | 34 | 37 | 20 | 1.1~4.8 | ||||
| VPD20-6L[5]-6B[9] | 20 | 67.1 | 15 | 44 | 20 | 18.5 | 6 | 7.0~12.6 | -M6 | |
| VPD20-10L[5]-6B | 73.1 | 50 | 24.5 | 10 | 3.3~10.0 | |||||
| VPD20-15L[5]-6B | 83.1 | 55 | 25 | 29.5 | 15 | 3.3~10.4 | ||||
| VPD20-20L[5]-6B | 99.1 | 62 | 34 | 36.5 | 20 | 2.0~8.7 | ||||
| VPD30-6L[5]-6B[9] | 30 | 67.1 | 44 | 20 | 18.5 | 6 | 7.0~12.6 | |||
| VPD30-10L[5]-6B | 73.1 | 50 | 24.5 | 10 | 3.3~10.0 | |||||
| VPD30-15L[5]-6B | 83.1 | 55 | 25 | 29.5 | 15 | 3.3~10.4 | ||||
| VPD30-20L[5]-6B | 99.1 | 62 | 34 | 36.5 | 20 | 2.0~8.7 | ||||
| VPD40-6L[5]-6B[9] | 40 | 67.1 | 44 | 20 | 18.5 | 6 | 7.0~12.6 | |||
| VPD40-10L[5]-6B | 73.1 | 50 | 24.5 | 10 | 3.3~10.0 | |||||
| VPD40-15L[5]-6B | 83.1 | 55 | 25 | 29.5 | 15 | 3.3~10.4 | ||||
| VPD40-20L[5]-6B | 99.1 | 62 | 34 | 36.5 | 20 | 2.0~8.7 |
Units: mm
*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[9]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material N and NE are not suitable for use under ozone environment.
*Tightening torque of a pad holder fixing bulkhead nut is 4.5~6 N·m.
Part number list
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
32.17 € ( 38.28 € ) | 11 working days |
24.26 € ( 28.87 € ) | 11 working days |
25.66 € ( 30.54 € ) | 11 working days |
25.66 € ( 30.54 € ) | 11 working days |
32.17 € ( 38.28 € ) | 11 working days |
24.26 € ( 28.87 € ) | 11 working days |
25.66 € ( 30.54 € ) | 11 working days |
25.66 € ( 30.54 € ) | 11 working days |
32.90 € ( 39.15 € ) | 11 working days |
24.26 € ( 28.87 € ) | 11 working days |
25.66 € ( 30.54 € ) | 11 working days |
25.66 € ( 30.54 € ) | 11 working days |
32.90 € ( 39.15 € ) | 11 working days |
24.26 € ( 28.87 € ) | 11 working days |
25.66 € ( 30.54 € ) | 11 working days |
25.66 € ( 30.54 € ) | 11 working days |
34.94 € ( 41.58 € ) | 11 working days |
24.74 € ( 29.44 € ) | 11 working days |
26.13 € ( 31.09 € ) | 11 working days |
26.13 € ( 31.09 € ) | 11 working days |
35.87 € ( 42.69 € ) | 11 working days |
25.66 € ( 30.54 € ) | 11 working days |
27.05 € ( 32.19 € ) | 11 working days |
28.45 € ( 33.86 € ) | 11 working days |
36.80 € ( 43.79 € ) | 11 working days |
26.13 € ( 31.09 € ) | 11 working days |
27.53 € ( 32.76 € ) | 11 working days |
29.38 € ( 34.96 € ) | 11 working days |
38.66 € ( 46.01 € ) | 11 working days |
26.60 € ( 31.65 € ) | 11 working days |
28.90 € ( 34.39 € ) | 11 working days |
33.08 € ( 39.37 € ) | 11 working days |
More Information
Basic information
Optimal for removing molded parts and transporting easily scratched materials. *CAD data currently being revised for this series. This will be available as soon as modifications are complete.
[Features]
· The pad rubber is flexible enough to adhere plastic molded parts while leaving relatively few traces.
· A wide range of pad sizes, pad materials, and holder shapes are available.
· Downsizes holders (A and B types) for existing vacuum pads, saving space.
· The pad section can be changed without removing the holder from the equipment, as is conventional.
· Also compatible with the optional fall prevention valve and pad direct attachment type filter.
· Pad holder (VPHD and VPHE types) with vacuum inlet on both sides.
