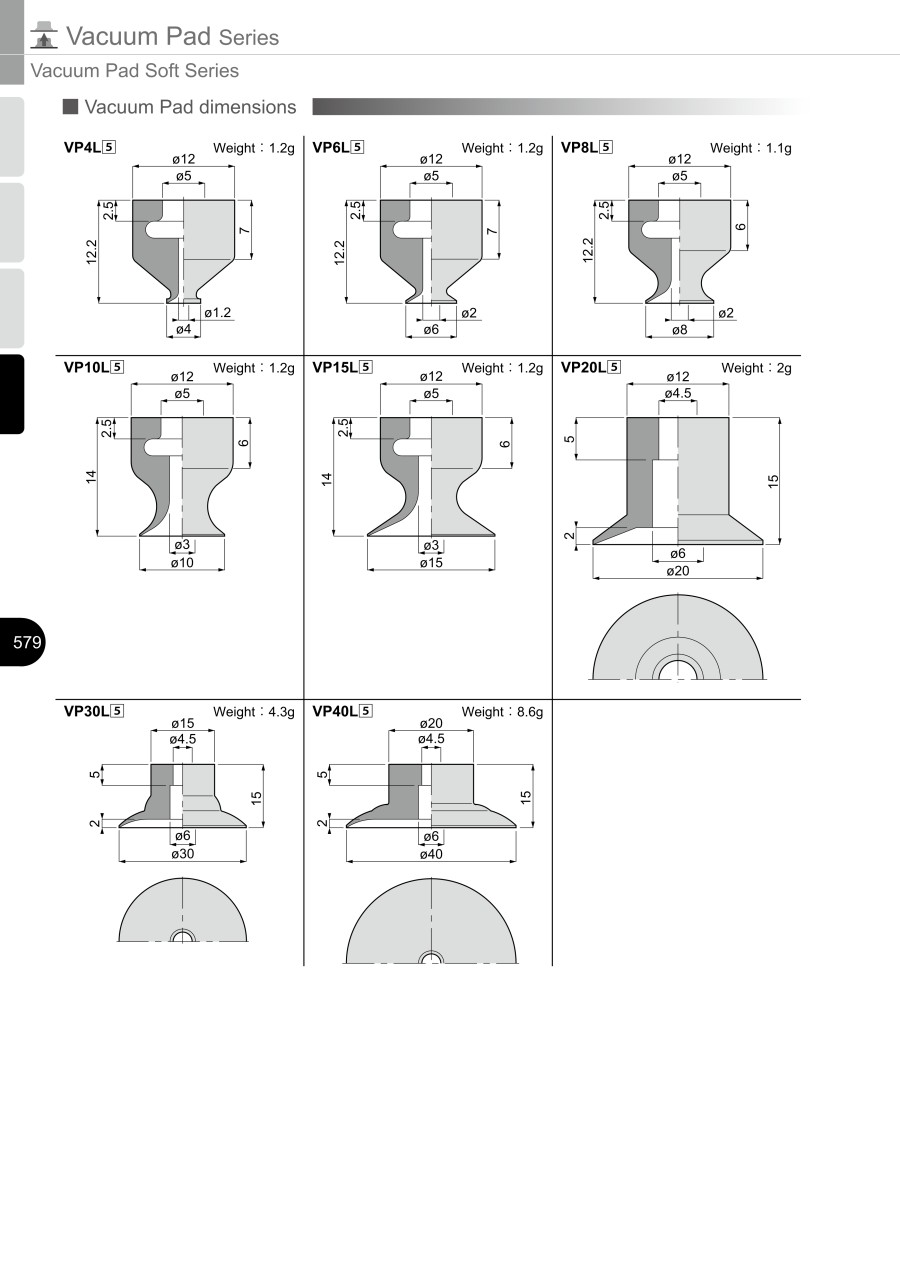

Vacuum Pad Soft Type VPHEW Barb Fitting Type

Vacuum Pad Soft Type VPHEW Barb Fitting Type

Part number:

Still undefined. 32 possible part numbers found.
Quantity:

Product information

Dimensions

Vacuum Pad Soft Type VPHEW Barb Fitting Type
Vacuum Pad Soft Type VPHEW Barb Fitting Type

Standard table

Model codePad O.D.
ød		Tube I.D.
øD		BLECConnection
config. code
VPHEW4L[5]-4B[9]42.530.212.215.97-T15
VPHEW4L[5]-6B[9]4
VPHEW6L[5]-4B[9]62.5
VPHEW6L[5]-6B[9]4
VPHEW8L[5]-4B[9]82.5
VPHEW8L[5]-6B[9]4
VPHEW10L[5]-4B[9]102.53214
VPHEW10L[5]-6B[9]4
VPHEW15L[5]-4B[9]152.5
VPHEW15L[5]-6B[9]4
VPHEW20L[5]-4B[9]202.53515-T40
VPHEW20L[5]-6B[9]4
VPHEW30L[5]-4B[9]302.5
VPHEW30L[5]-6B[9]4
VPHEW40L[5]-4B[9]402.5
VPHEW40L[5]-6B[9]4

Units: mm

*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[9]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material N and NE are not suitable for use under ozone environment.
