Configure
- Rubber Group Material
- Nitrile Rubber
- Nitrile Rubber
- Silicone Rubber
- Silicone Rubber
- Silicone Rubber +Carbon
- Usage Environment
- Color
- Black
- White
- White
- Outer Diameter D(φ)
- 10
- 20
- 30
- Height L1(mm)
- 16
- 19
- 23
- Full length B(mm)
- 35
- 40.2
- 44.2
- Vacuum Outlet Tube Outer Diameter(φ)
- 3
- 4
- Metal parts material
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 11 working days
- Within 12 working days
Vacuum Pad, Bellows Small Type, VPMB, One Touch Fitting Type
Part number:
possible part numbers found.Product information

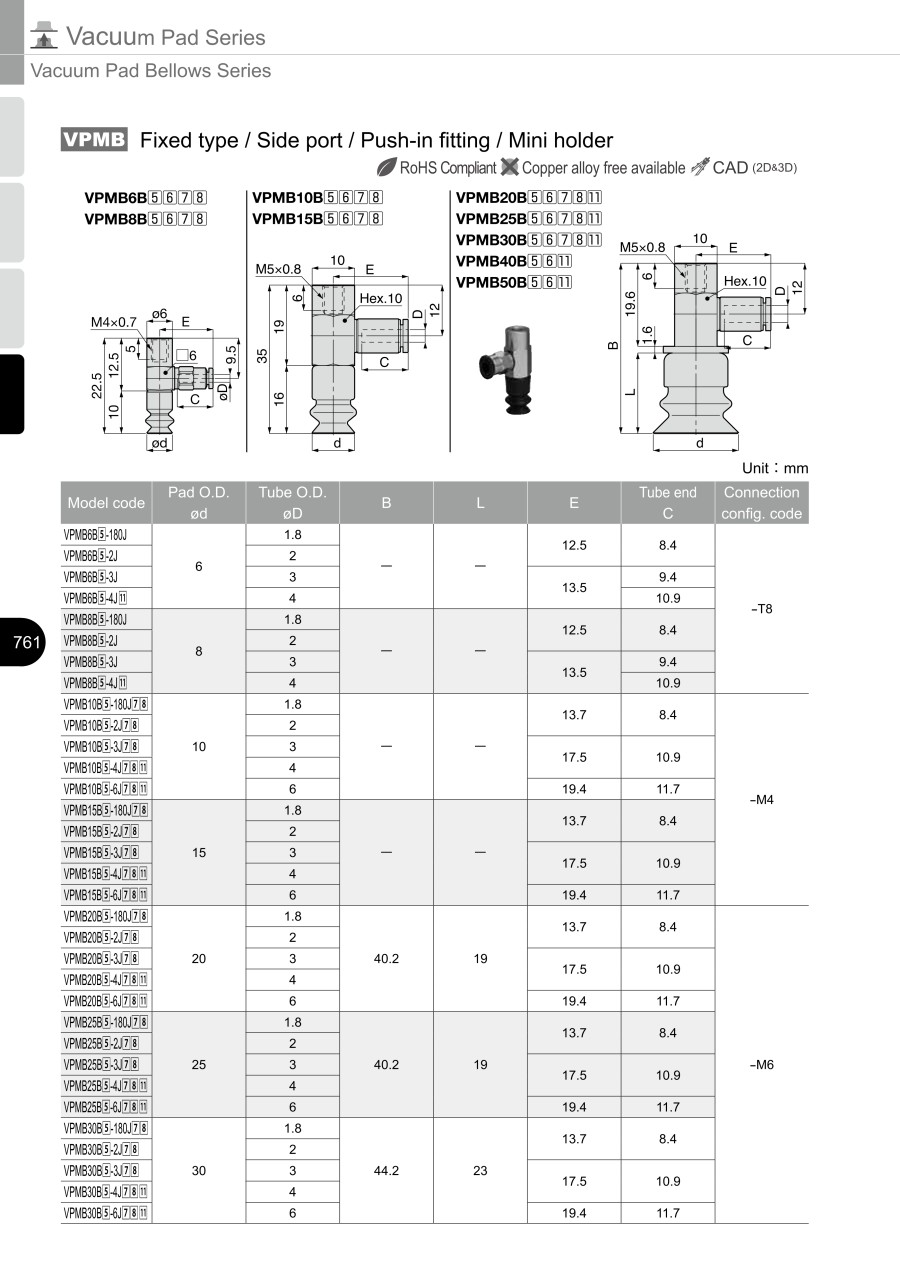

Dimensions
Standard table
| Model code | Pad O.D. ød | Tube O.D. øD | B | L | E | Tube end C | Connection config. code |
|---|---|---|---|---|---|---|---|
| VPMB10B[5]-3J[7][8] | 10 | 3 | 35 | 16 | 17.5 | 10.9 | -M4 |
| VPMB10B[5]-4J[7][8][11] | 4 | ||||||
| VPMB15B[5]-3J[7][8] | 15 | 3 | |||||
| VPMB15B[5]-4J[7][8][11] | 4 | ||||||
| VPMB20B[5]-3J[7][8] | 20 | 3 | 40.2 | 19 | -M6 | ||
| VPMB20B[5]-4J[7][8][11] | 4 | 40.2 | |||||
| VPMB25B[5]-3J[7][8] | 25 | 3 | 40.2 | ||||
| VPMB25B[5]-4J[7][8][11] | 4 | 40.2 | |||||
| VPMB30B[5]-3J[7][8] | 30 | 3 | 44.2 | 23 | |||
| VPMB30B[5]-4J[7][8][11] | 4 | 44.2 | |||||
| VPMB40B[5]-3J[7][8] | 40 | 3 | 51.2 | 30 | |||
| VPMB40B[5]-4J[7][8][11] | 4 | 51.2 | |||||
| VPMB50B[5]-3J[7][8] | 50 | 3 | 53.2 | 32 | |||
| VPMB50B[5]-4J[7][8][11] | 4 | 53.2 |
Units: mm
*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[7]: Replaced with "-Q" for mark-free resin attachment.
*Add extra lengths below to the dimension B in the table above for dimension including a resin attachment.
| Pad O.D. (mm) | ø10 | ø15 | ø20 | ø25 | ø30 |
|---|---|---|---|---|---|
| Length added to dimension B (mm) | 0.5 | 0.5 | 0.5 | 0.8 | 1 |
*[8]: Replaced with Resin attachment material code. Refer to the catalog for details.
*[11]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material N and NE are not suitable for use under ozone environment.
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
15.69 € ( 18.67 € ) | 11 working days |
16.04 € ( 19.09 € ) | 11 working days |
17.54 € ( 20.87 € ) | 11 working days |
17.93 € ( 21.34 € ) | 11 working days |
31.17 € ( 37.09 € ) | 12 working days |
17.54 € ( 20.87 € ) | 11 working days |
17.93 € ( 21.34 € ) | 11 working days |
18.38 € ( 21.87 € ) | 11 working days |
20.68 € ( 24.61 € ) | 11 working days |
20.68 € ( 24.61 € ) | 11 working days |
18.83 € ( 22.41 € ) | 11 working days |
21.16 € ( 25.18 € ) | 11 working days |
21.63 € ( 25.74 € ) | 11 working days |
