- Rubber Group Material
- Nitrile Rubber
- Nitrile Rubber
- NBR which conforms to Food Sanitation Law
- Silicone Rubber
- Silicone Rubber
- Color
- Black
- Gray
- White
- White
- Outer Diameter D(φ)
- 10
- 20
- 30
- Height L1(mm)
- 14.5
- 25
- 38.5
- Full length B(mm)
- 33.5
- 46.2
- 59.7
- Vacuum Outlet Tube Outer Diameter(φ)
- 3
- 4
- Metal parts material
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 11 working days
- Within 12 working days
Vacuum Pad Multistage Bellows VPMB One-Touch Fitting Type
Part number:
possible part numbers found.Product information

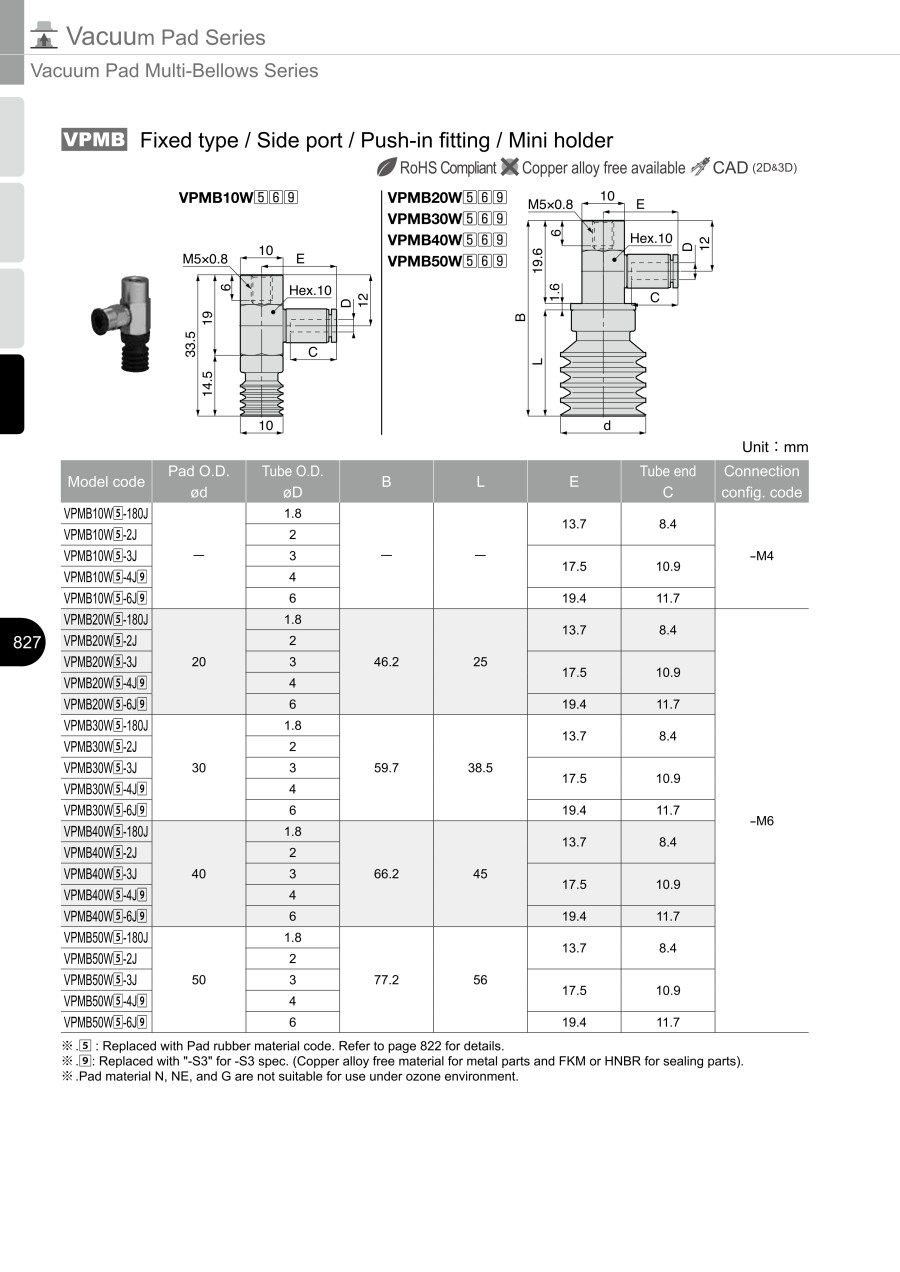

Dimensions
Standard table
| Model code | Pad O.D. ød | Tube O.D. øD | B | L | E | Tube end C | Connection config. code |
|---|---|---|---|---|---|---|---|
| VPMB10W[5]-3J | 10 | 3 | 33.5 | 14.5 | 17.5 | 10.9 | -M4 |
| VPMB10W[5]-4J[9] | 4 | ||||||
| VPMB20W[5]-3J | 20 | 3 | 46.2 | 25 | -M6 | ||
| VPMB20W[5]-4J[9] | 4 | ||||||
| VPMB30W[5]-3J | 30 | 3 | 59.7 | 38.5 | |||
| VPMB30W[5]-4J[9] | 4 | ||||||
| VPMB40W[5]-3J | 40 | 3 | 66.2 | 45 | |||
| VPMB40W[5]-4J[9] | 4 | ||||||
| VPMB50W[5]-3J | 50 | 3 | 77.2 | 56 | |||
| VPMB50W[5]-4J[9] | 4 |
Units: mm
*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[9]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material N, NE, and G are not suitable for use under ozone environment.
Part number list
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
21.07 € ( 25.07 € ) | 11 working days |
21.44 € ( 25.51 € ) | 11 working days |
20.32 € ( 24.18 € ) | 11 working days |
20.68 € ( 24.61 € ) | 11 working days |
22.18 € ( 26.39 € ) | 11 working days |
22.56 € ( 26.85 € ) | 11 working days |
35.81 € ( 42.61 € ) | 12 working days |
24.23 € ( 28.83 € ) | 11 working days |
23.47 € ( 27.93 € ) | 11 working days |
25.80 € ( 30.70 € ) | 11 working days |
25.15 € ( 29.93 € ) | 11 working days |
24.42 € ( 29.06 € ) | 11 working days |
26.72 € ( 31.80 € ) | 11 working days |
More Information
Basic information
*CAD data currently being revised for this series. This will be available as soon as modifications are complete.
[Features]
· Supports tilted work and transport of vinyl packages.
· A wide range of pad sizes, pad materials, and holder shapes are available.
· Downsizes holders (A and B types) for existing vacuum pads, saving space.
· The pad section can be changed without removing the holder from the equipment, as is conventional.
· Also compatible with the optional fall prevention valve and pad direct attachment type filter.
· Pad holders have been added for applications requiring copper-based metal not to be used and as part of efforts to reduce ozone concentrations.
· Copper-based metal is not used for metal parts. HNBR is used for sealing rubber material.
