Vacuum Pad Oval Type VPD Barb Fitting Type
Part number:
possible part numbers found.Product information
Dimensions
Standard table

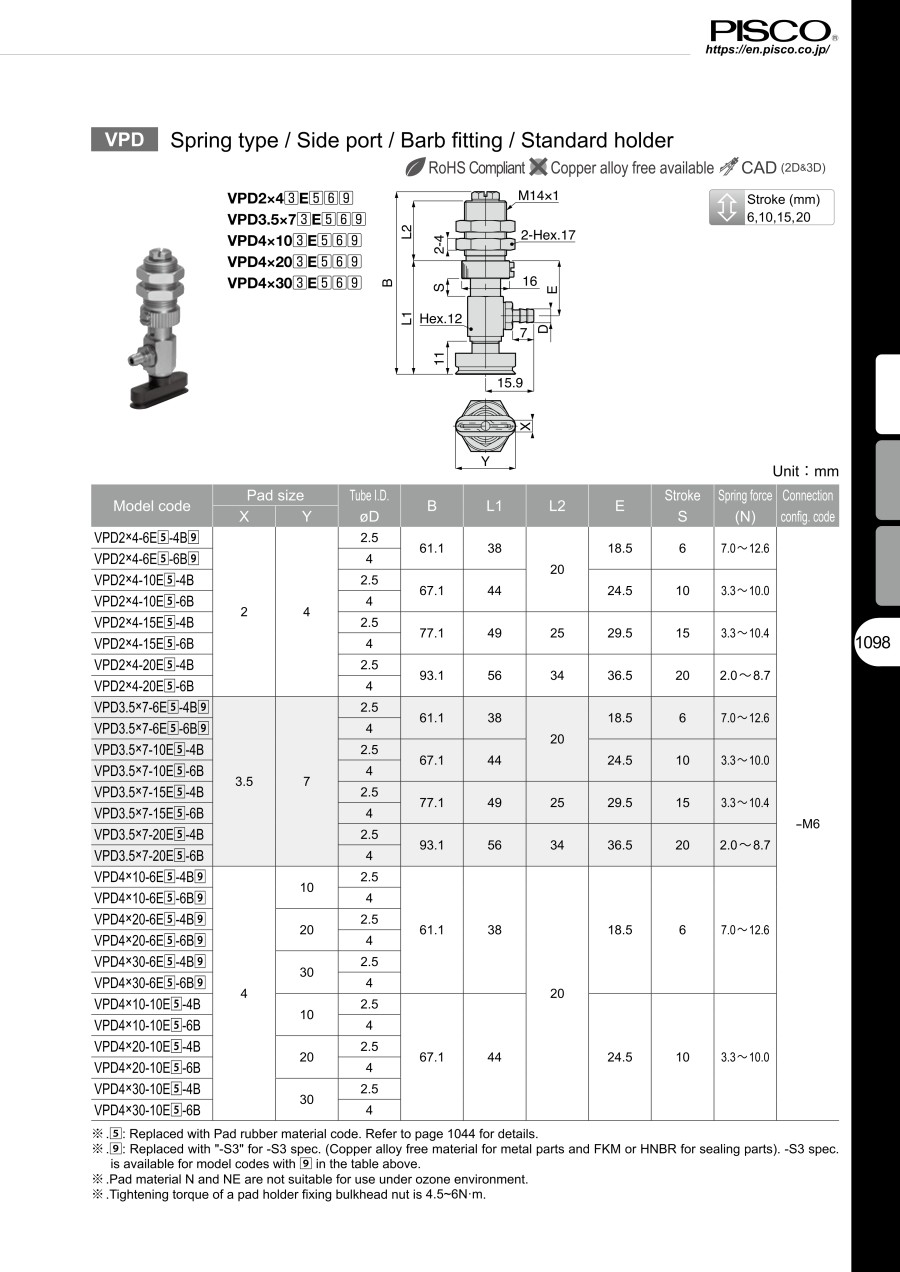

| Model code | Pad size X | Pad size Y | Tube I.D. øD | B | L1 | L2 | E | Stroke S | Spring force (N) | Connection config. code |
|---|---|---|---|---|---|---|---|---|---|---|
| VPD4×10-6E[5]-6B[9] | 4 | 10 | 4 | 61.1 | 38 | 20 | 18.5 | 6 | 7.0~12.6 | -M6 |
| VPD4×20-6E[5]-6B[9] | 20 | |||||||||
| VPD4×30-6E[5]-6B[9] | 30 | |||||||||
| VPD4×10-10E[5]-6B | 10 | 67.1 | 44 | 24.5 | 10 | 3.3~10.0 | ||||
| VPD4×20-10E[5]-6B | 20 | |||||||||
| VPD4×30-10E[5]-6B | 30 | |||||||||
| VPD4×10-15E[5]-6B | 10 | 77.1 | 49 | 25 | 29.5 | 15 | 3.3~10.4 | |||
| VPD4×20-15E[5]-6B | 20 | |||||||||
| VPD4×30-15E[5]-6B | 30 | |||||||||
| VPD4×10-20E[5]-6B | 10 | 93.1 | 56 | 34 | 36.5 | 20 | 2.0~8.7 | |||
| VPD4×20-20E[5]-6B | 20 | |||||||||
| VPD4×30-20E[5]-6B | 30 | |||||||||
| VPD5×10-6E[5]-6B[9] | 5 | 10 | 61.1 | 38 | 20 | 18.5 | 6 | 7.0~12.6 | ||
| VPD5×20-6E[5]-6B[9] | 20 | |||||||||
| VPD5×30-6E[5]-6B[9] | 30 | |||||||||
| VPD5×10-10E[5]-6B | 10 | 67.1 | 44 | 24.5 | 10 | 3.3~10.0 | ||||
| VPD5×20-10E[5]-6B | 20 | |||||||||
| VPD5×30-10E[5]-6B | 30 | |||||||||
| VPD5×10-15E[5]-6B | 10 | 77.1 | 49 | 25 | 29.5 | 15 | 3.3~10.4 | |||
| VPD5×20-15E[5]-6B | 20 | |||||||||
| VPD5×30-15E[5]-6B | 30 | |||||||||
| VPD5×10-20E[5]-6B | 10 | 93.1 | 56 | 34 | 36.5 | 20 | 2.0~8.7 | |||
| VPD5×20-20E[5]-6B | 20 | |||||||||
| VPD5×30-20E[5]-6B | 30 | |||||||||
| VPD6×10-6E[5]-6B[9] | 6 | 10 | 61.1 | 38 | 20 | 18.5 | 6 | 7.0~12.6 | ||
| VPD6×20-6E[5]-6B[9] | 20 | |||||||||
| VPD6×30-6E[5]-6B[9] | 30 | |||||||||
| VPD6×10-10E[5]-6B | 10 | 67.1 | 44 | 24.5 | 10 | 3.3~10.0 | ||||
| VPD6×20-10E[5]-6B | 20 | |||||||||
| VPD6×30-10E[5]-6B | 30 | |||||||||
| VPD6×10-15E[5]-6B | 10 | 77.1 | 49 | 25 | 29.5 | 15 | 3.3~10.4 | |||
| VPD6×20-15E[5]-6B | 20 | |||||||||
| VPD6×30-15E[5]-6B | 30 | |||||||||
| VPD6×10-20E[5]-6B | 10 | 93.1 | 56 | 34 | 36.5 | 20 | 2.0~8.7 | |||
| VPD6×20-20E[5]-6B | 20 | |||||||||
| VPD6×30-20E[5]-6B | 30 | |||||||||
| VPD8×20-6E[5]-6B[9] | 8 | 20 | 61.1 | 38 | 20 | 18.5 | 6 | 7.0~12.6 | ||
| VPD8×30-6E[5]-6B[9] | 30 | |||||||||
| VPD8×20-10E[5]-6B | 20 | 67.1 | 44 | 24.5 | 10 | 3.3~10.0 | ||||
| VPD8×30-10E[5]-6B | 30 | |||||||||
| VPD8×20-15E[5]-6B | 20 | 77.1 | 49 | 25 | 29.5 | 15 | 3.3~10.4 | |||
| VPD8×30-15E[5]-6B | 30 | |||||||||
| VPD8×20-20E[5]-6B | 20 | 93.1 | 56 | 34 | 36.5 | 20 | 2.0~8.7 | |||
| VPD8×30-20E[5]-6B | 30 |
Units: mm
*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[9]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material N and NE are not suitable for use under ozone environment.
*Tightening torque of a pad holder fixing bulkhead nut is 4.5~6N·m.
Part number list
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
26.78 € ( 31.87 € ) | 11 working days |
29.10 € ( 34.63 € ) | 11 working days |
27.23 € ( 32.40 € ) | 11 working days |
29.57 € ( 35.19 € ) | 11 working days |
27.72 € ( 32.99 € ) | 11 working days |
30.02 € ( 35.72 € ) | 11 working days |
26.78 € ( 31.87 € ) | 11 working days |
29.10 € ( 34.63 € ) | 11 working days |
27.23 € ( 32.40 € ) | 11 working days |
29.57 € ( 35.19 € ) | 11 working days |
27.72 € ( 32.99 € ) | 11 working days |
30.02 € ( 35.72 € ) | 11 working days |
26.78 € ( 31.87 € ) | 11 working days |
29.10 € ( 34.63 € ) | 11 working days |
27.23 € ( 32.40 € ) | 11 working days |
29.57 € ( 35.19 € ) | 11 working days |
27.72 € ( 32.99 € ) | 11 working days |
30.02 € ( 35.72 € ) | 11 working days |
27.23 € ( 32.40 € ) | 11 working days |
29.57 € ( 35.19 € ) | 11 working days |
27.72 € ( 32.99 € ) | 11 working days |
30.02 € ( 35.72 € ) | 11 working days |
More Information
Basic information
*CAD data currently being revised for this series. This will be available as soon as modifications are complete.
[Features]
· Optimal for conveying long items such as circuit boards and semiconductors.
· A wide range of pad sizes, pad materials, and holder shapes are available.
· Downsizes holders (A and B types) for existing vacuum pads, saving space.
· The pad section can be changed without removing the holder from the equipment, as is conventional.
· Also compatible with the optional fall prevention valve and pad direct attachment type filter.
· Pad holders have been added for applications requiring copper-based metal not to be used and as part of efforts to reduce ozone concentrations.
· Copper-based metal is not used for metal parts. HNBR is used for sealing rubber material.
