Configure
- Rubber Group Material
- Nitrile Rubber
- Nitrile Rubber
- Silicone Rubber
- Silicone Rubber
- Color
- Black
- White
- White
- Width X
- 4
- 5
- 6
- 8
- Length Y
- 10
- 20
- 30
- Vacuum Outlet Tube Outer Diameter(φ)
- 4
- 6
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 11 working days
Vacuum Pad Oval Small Type VPMA Barb Fitting Type
Part number:
possible part numbers found.Product information

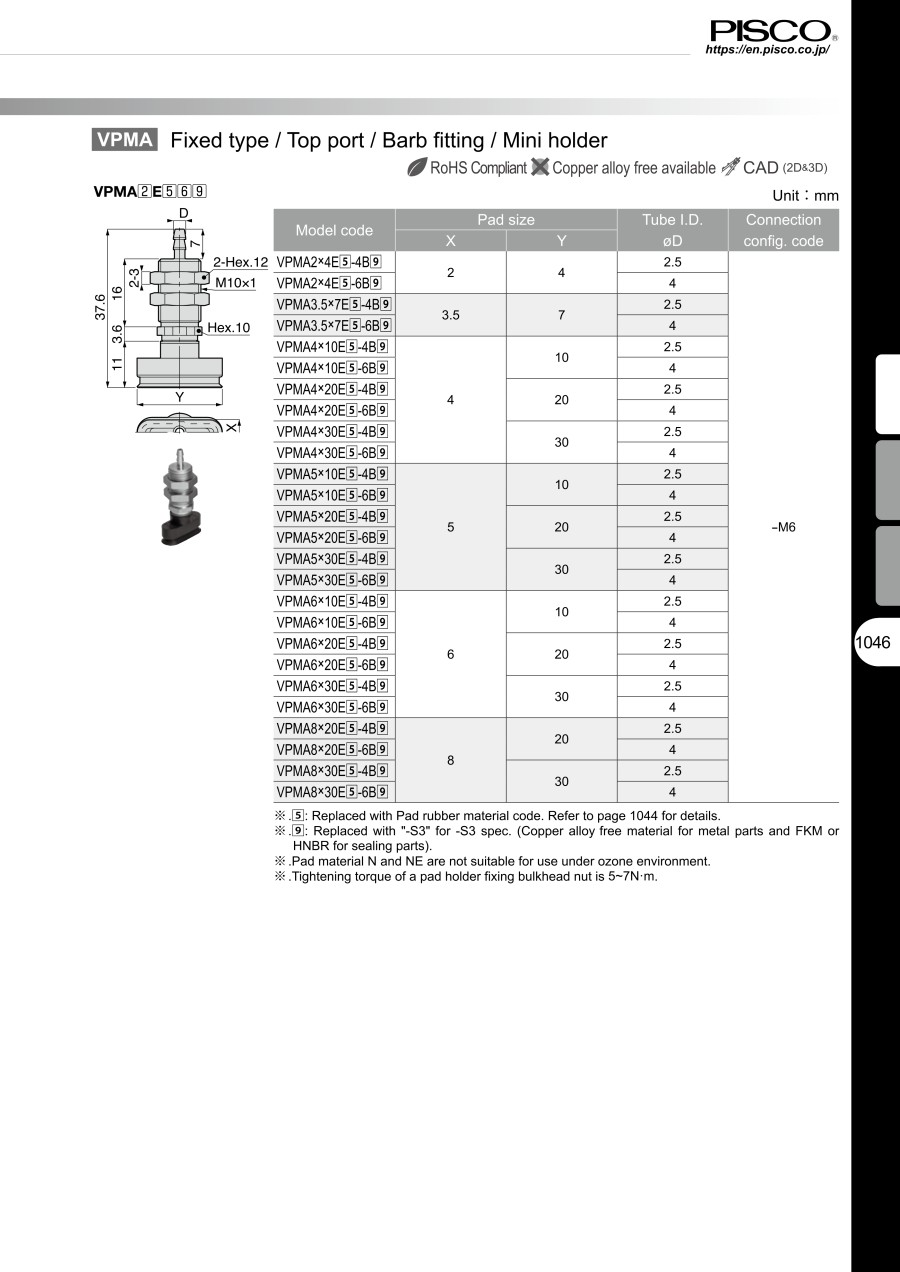

Dimensions
Standard table
| Model code | Pad size X | Pad size Y | Tube I.D. øD | Connection config. code |
|---|---|---|---|---|
| VPMA4×10E[5]-4B[9] | 4 | 10 | 2.5 | -M6 |
| VPMA4×10E[5]-6B[9] | 4 | |||
| VPMA4×20E[5]-4B[9] | 20 | 2.5 | ||
| VPMA4×20E[5]-6B[9] | 4 | |||
| VPMA4×30E[5]-4B[9] | 30 | 2.5 | ||
| VPMA4×30E[5]-6B[9] | 4 | |||
| VPMA5×10E[5]-4B[9] | 5 | 10 | 2.5 | |
| VPMA5×10E[5]-6B[9] | 4 | |||
| VPMA5×20E[5]-4B[9] | 20 | 2.5 | ||
| VPMA5×20E[5]-6B[9] | 4 | |||
| VPMA5×30E[5]-4B[9] | 30 | 2.5 | ||
| VPMA5×30E[5]-6B[9] | 4 | |||
| VPMA6×10E[5]-4B[9] | 6 | 10 | 2.5 | |
| VPMA6×10E[5]-6B[9] | 4 | |||
| VPMA6×20E[5]-4B[9] | 20 | 2.5 | ||
| VPMA6×20E[5]-6B[9] | 4 | |||
| VPMA6×30E[5]-4B[9] | 30 | 2.5 | ||
| VPMA6×30E[5]-6B[9] | 4 | |||
| VPMA8×20E[5]-4B[9] | 8 | 20 | 2.5 | |
| VPMA8×20E[5]-6B[9] | 4 | |||
| VPMA8×30E[5]-4B[9] | 30 | 2.5 | ||
| VPMA8×30E[5]-6B[9] | 4 |
Units: mm
*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[9]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material N and NE are not suitable for use under ozone environment.
*Tightening torque of a pad holder fixing bulkhead nut is 5~7 N·m.
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
16.43 € ( 19.55 € ) | 11 working days |
16.43 € ( 19.55 € ) | 11 working days |
18.75 € ( 22.31 € ) | 11 working days |
18.75 € ( 22.31 € ) | 11 working days |
16.90 € ( 20.11 € ) | 11 working days |
16.90 € ( 20.11 € ) | 11 working days |
19.20 € ( 22.85 € ) | 11 working days |
19.20 € ( 22.85 € ) | 11 working days |
17.35 € ( 20.65 € ) | 11 working days |
17.35 € ( 20.65 € ) | 11 working days |
19.69 € ( 23.43 € ) | 11 working days |
19.69 € ( 23.43 € ) | 11 working days |
16.43 € ( 19.55 € ) | 11 working days |
16.43 € ( 19.55 € ) | 11 working days |
18.75 € ( 22.31 € ) | 11 working days |
18.75 € ( 22.31 € ) | 11 working days |
16.90 € ( 20.11 € ) | 11 working days |
16.90 € ( 20.11 € ) | 11 working days |
19.20 € ( 22.85 € ) | 11 working days |
19.20 € ( 22.85 € ) | 11 working days |
17.35 € ( 20.65 € ) | 11 working days |
17.35 € ( 20.65 € ) | 11 working days |
19.69 € ( 23.43 € ) | 11 working days |
19.69 € ( 23.43 € ) | 11 working days |
16.43 € ( 19.55 € ) | 11 working days |
16.43 € ( 19.55 € ) | 11 working days |
18.75 € ( 22.31 € ) | 11 working days |
18.75 € ( 22.31 € ) | 11 working days |
16.90 € ( 20.11 € ) | 11 working days |
16.90 € ( 20.11 € ) | 11 working days |
19.20 € ( 22.85 € ) | 11 working days |
19.20 € ( 22.85 € ) | 11 working days |
17.35 € ( 20.65 € ) | 11 working days |
17.35 € ( 20.65 € ) | 11 working days |
19.69 € ( 23.43 € ) | 11 working days |
19.69 € ( 23.43 € ) | 11 working days |
16.90 € ( 20.11 € ) | 11 working days |
16.90 € ( 20.11 € ) | 11 working days |
19.20 € ( 22.85 € ) | 11 working days |
19.20 € ( 22.85 € ) | 11 working days |
17.35 € ( 20.65 € ) | 11 working days |
17.35 € ( 20.65 € ) | 11 working days |
19.69 € ( 23.43 € ) | 11 working days |
19.69 € ( 23.43 € ) | 11 working days |
More Information
Basic information
It is ideal for the transport of long work, such as a substrate or a semiconductor *This series is in CAD data modification. This will be available as soon as modifications are complete.
