Vacuum Pad Soft Bellows Type VPHDW One Touch Fitting Type

Part number:

Still undefined. 10 possible part numbers found.
Quantity:

Product information

Dimensions

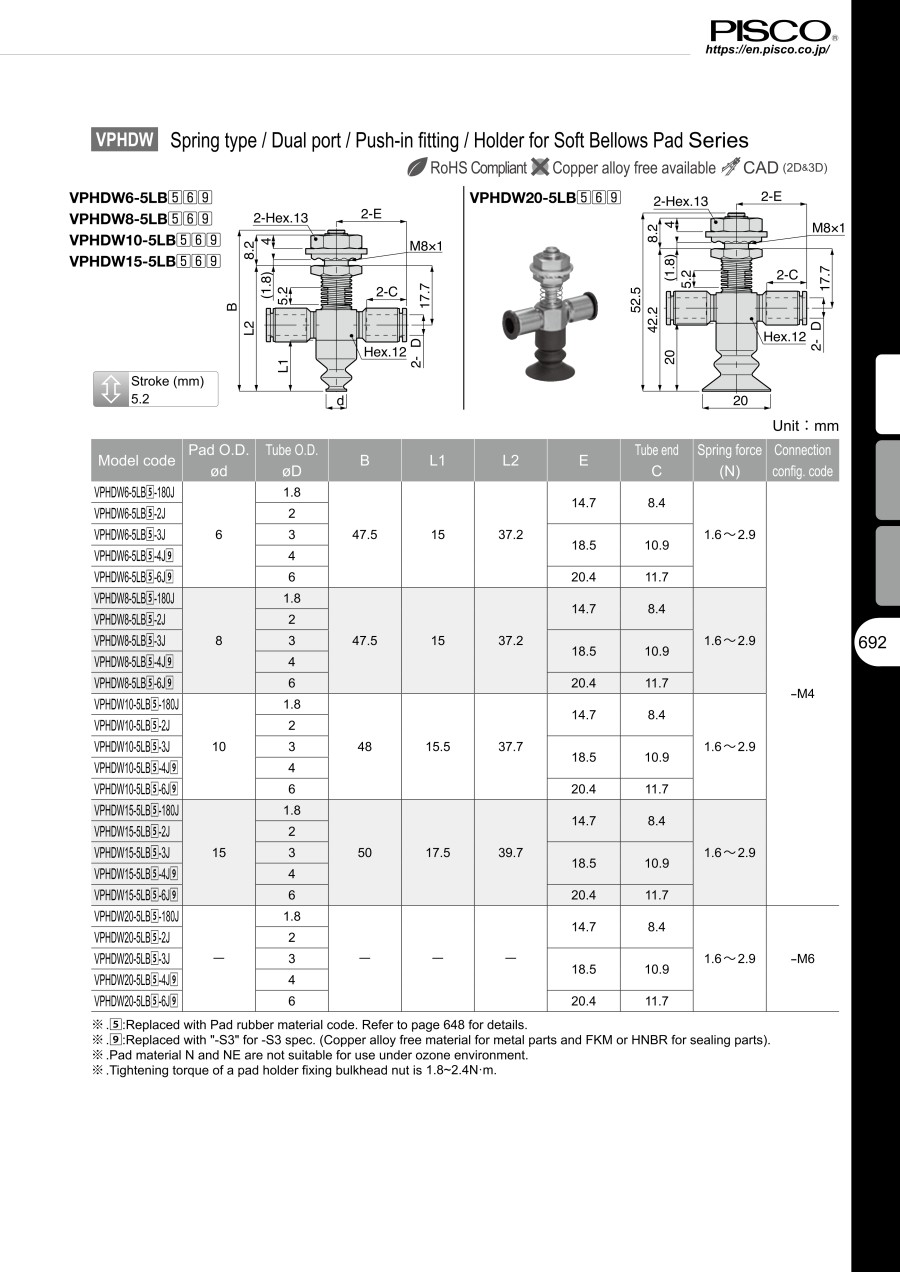

Vacuum Pad Soft Bellows Type VPHDW One Touch Fitting Type
Vacuum Pad Soft Bellows Type VPHDW One Touch Fitting Type

Standard table

Model codePad O.D.
ød
Tube O.D.
øD
BL1L2ETube end
C
Spring force
(N)
Connection
config. code
VPHDW6-5LB[5]-6J[9]6647.51537.220.411.71.6~2.9-M4
VPHDW8-5LB[5]-6J[9]8
VPHDW10-5LB[5]-6J[9]104815.5
VPHDW15-5LB[5]-6J[9]155017.539.7
VPHDW20-5LB[5]-6J[9]2052.52042.2-M6

Units: mm

*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[9]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material N and NE are not suitable for use under ozone environment.
*Tightening torque of a pad holder fixing bulkhead nut is 1.8~2.4 N·m.

Part number list

Number of items

Rubber Group Material

Color

Outer Diameter D

(φ)

Height L1

(mm)

Full length B

(mm)

Minimum order quantity
[Nitrile Rubber] Nitrile Rubber
Black
6
15
47.3
1 pieces
[Silicone Rubber] Silicone Rubber
[White] White
6
15
47.3
1 pieces
[Nitrile Rubber] Nitrile Rubber
Black
8
15
47.3
1 pieces
[Silicone Rubber] Silicone Rubber
[White] White
8
15
47.3
1 pieces
[Nitrile Rubber] Nitrile Rubber
Black
10
15.5
47.8
1 pieces
[Silicone Rubber] Silicone Rubber
[White] White
10
15.5
47.8
1 pieces
[Nitrile Rubber] Nitrile Rubber
Black
15
17.5
49.8
1 pieces
[Silicone Rubber] Silicone Rubber
[White] White
15
17.5
49.8
1 pieces
[Nitrile Rubber] Nitrile Rubber
Black
20
20
52.3
1 pieces
[Silicone Rubber] Silicone Rubber
[White] White
20
20
52.3
1 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
19.50 €
( 23.20 € )
11 working days
21.80 €
( 25.94 € )
11 working days
19.50 €
( 23.20 € )
11 working days
21.80 €
( 25.94 € )
11 working days
19.50 €
( 23.20 € )
11 working days
21.80 €
( 25.94 € )
11 working days
19.95 €
( 23.74 € )
11 working days
22.74 €
( 27.06 € )
11 working days
19.95 €
( 23.74 € )
11 working days
22.74 €
( 27.06 € )
11 working days

More Information

Basic information

Excellent flexibility, ideal for adhesion of paper, plastic molded products, etc. *The CAD data for this series is being revised. This will be available as soon as modifications are complete.
