- Rubber Group Material
- Nitrile Rubber
- Nitrile Rubber
- Silicone Rubber
- Silicone Rubber
- Color
- Black
- White
- White
- Outer Diameter D(φ)
- 6
- 8
- 10
- 15
- 20
- Height L1(mm)
- 15
- 15.5
- 17.5
- 20
- Full length B(mm)
- 36
- 36.5
- 38.5
- 43
- Vacuum Outlet Tube Outer Diameter(φ)
- 3
- 4
- Metal parts material
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 11 working days
- Within 12 working days
- Within 15 working days
Vacuum Pad, Soft Bellows Small Type, VPMB, One Touch Fitting Type
Part number:
possible part numbers found.Product information

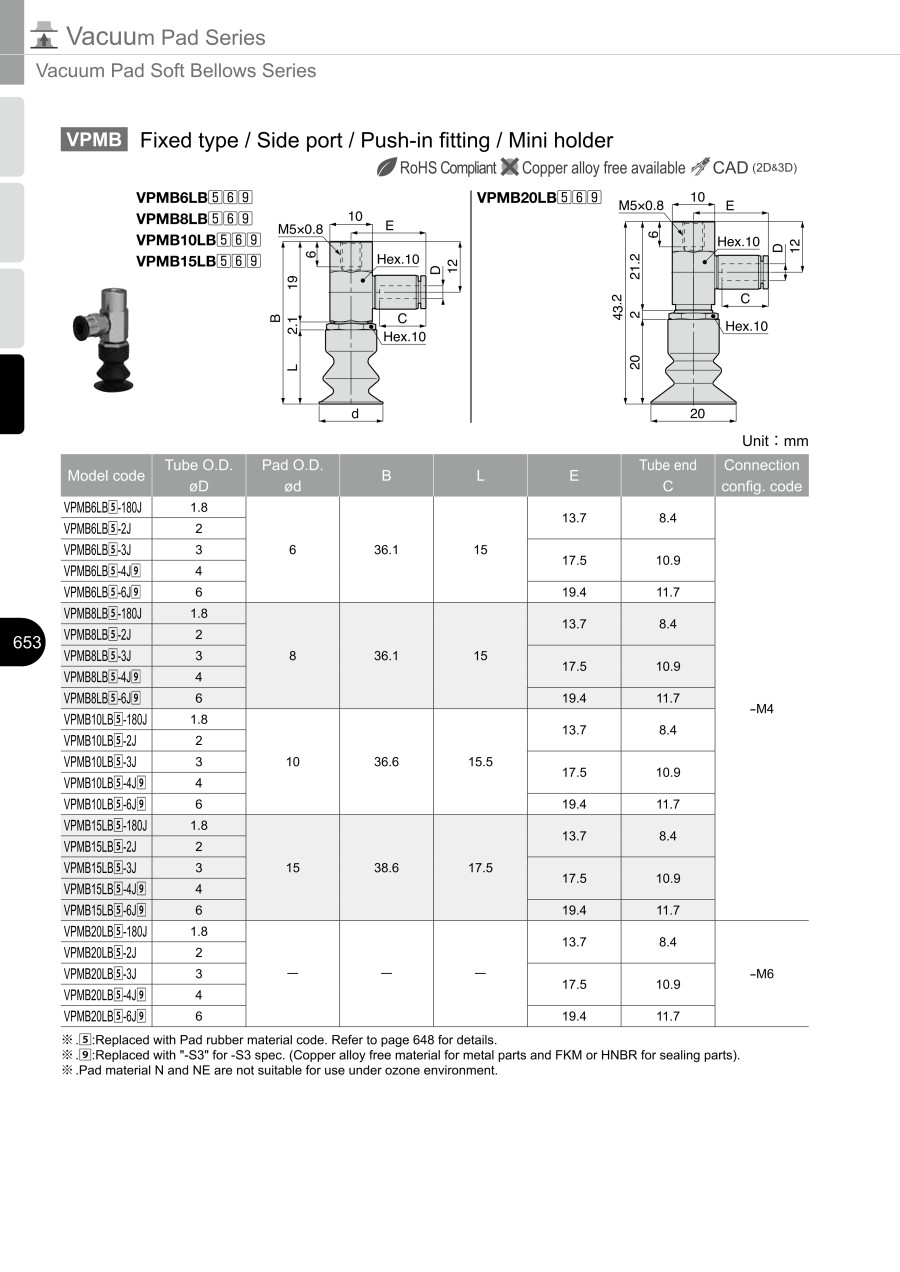

Dimensions
Standard table
| Model code | Tube O.D. øD | Pad O.D. ød | B | L | E | Tube end C | Connection config. code |
|---|---|---|---|---|---|---|---|
| VPMB6LB[5]-3J | 3 | 6 | 36.1 | 15 | 17.5 | 10.9 | -M4 |
| VPMB6LB[5]-4J[9] | 4 | ||||||
| VPMB8LB[5]-3J | 3 | 8 | |||||
| VPMB8LB[5]-4J[9] | 4 | ||||||
| VPMB10LB[5]-3J | 3 | 10 | 36.6 | 15.5 | |||
| VPMB10LB[5]-4J[9] | 4 | ||||||
| VPMB15LB[5]-3J | 3 | 15 | |||||
| VPMB15LB[5]-4J[9] | 4 | ||||||
| VPMB20LB[5]-3J | 3 | 20 | 43.2 | 20 | -M6 | ||
| VPMB20LB[5]-4J[9] | 4 |
Units: mm
*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[9]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material N and NE are not suitable for use under ozone environment.
Part number list
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
15.87 € ( 18.89 € ) | 11 working days |
16.25 € ( 19.34 € ) | 11 working days |
18.19 € ( 21.65 € ) | 11 working days |
18.57 € ( 22.10 € ) | 11 working days |
15.87 € ( 18.89 € ) | 11 working days |
16.25 € ( 19.34 € ) | 11 working days |
18.19 € ( 21.65 € ) | 11 working days |
18.57 € ( 22.10 € ) | 11 working days |
15.87 € ( 18.89 € ) | 11 working days |
16.25 € ( 19.34 € ) | 11 working days |
18.19 € ( 21.65 € ) | 11 working days |
18.57 € ( 22.10 € ) | 15 working days |
31.84 € ( 37.89 € ) | 12 working days |
16.34 € ( 19.44 € ) | 11 working days |
16.71 € ( 19.88 € ) | 11 working days |
19.11 € ( 22.74 € ) | 11 working days |
19.50 € ( 23.20 € ) | 11 working days |
17.63 € ( 20.98 € ) | 11 working days |
20.42 € ( 24.30 € ) | 11 working days |
More Information
Basic information
Excellent flexibility and ideal for adherence of paper, plastic molded articles, etc. *CAD data for this series is being revised. Data will be available as soon as modifications are complete.
[Features]
· Pad rubber is flexible enough to adhere to plastic molded parts without leaving significant residual traces.
· A wide range of pad sizes, pad materials, and holder shapes are available.
· Can reduce the size of holders (A and B types) for existing vacuum pads, making it possible to save space.
· The pad section can be changed without removing the holder from the equipment, as is conventionally done.
· Moreover, this product is also compatible with an optional fall prevention valve and pad direct attachment type filter.
· Pad holder (VPHD and VPHE types) with vacuum inlet on both sides
