Vacuum Pad, Non-Slip Compact Type, VPMB, Barbed Fitting Type
Part number:
possible part numbers found.Product information

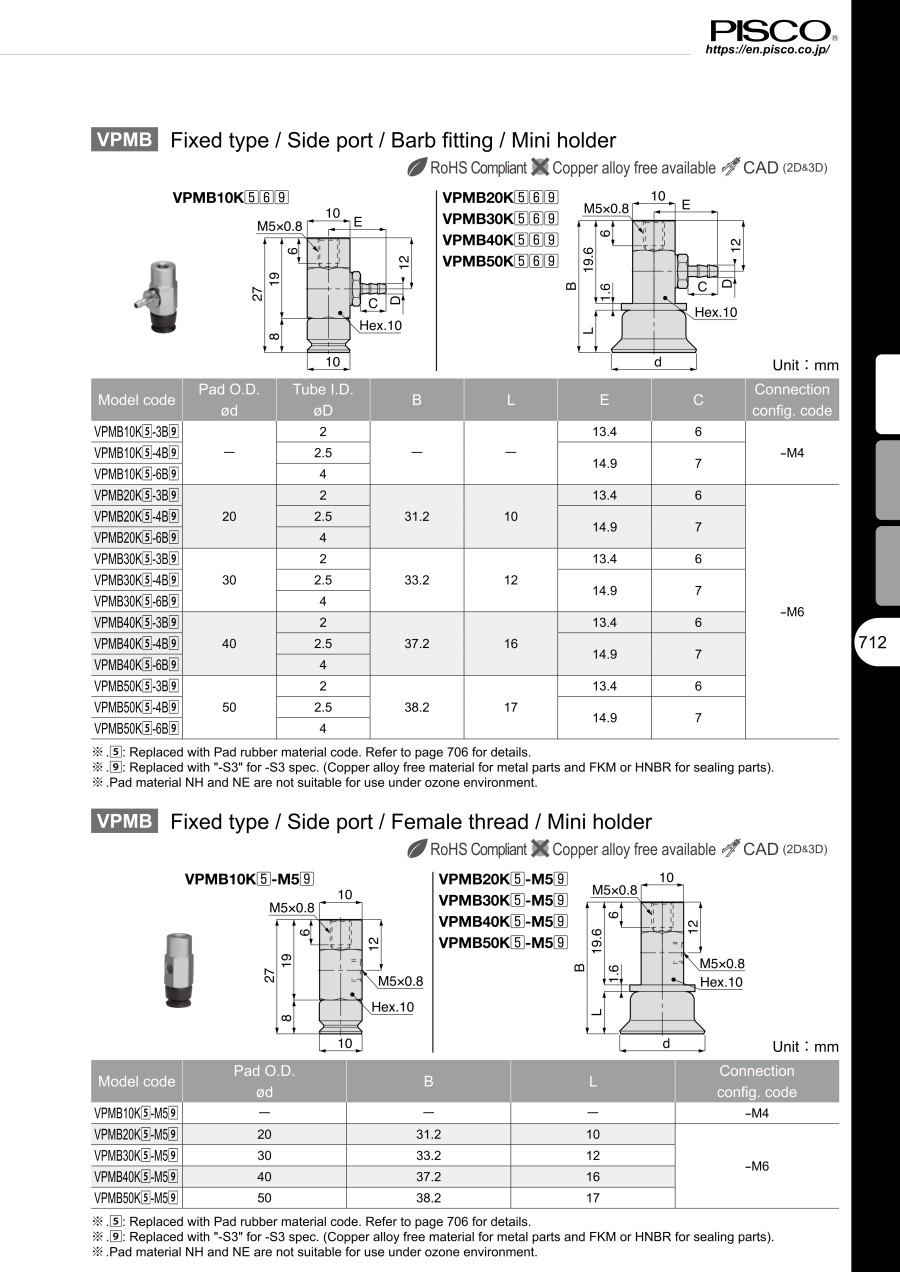

Dimensions
Standard table
| Model code | Pad O.D. ød | Tube I.D. øD | B | L | E | C | Connection config. code |
|---|---|---|---|---|---|---|---|
| VPMB10K[5]-3B[9] | 10 | 2 | 27 | 8 | 13.4 | 6 | -M4 |
| VPMB10K[5]-4B[9] | 2.5 | 14.9 | 7 | ||||
| VPMB10K[5]-6B[9] | 4 | ||||||
| VPMB20K[5]-3B[9] | 20 | 2 | 31.2 | 10 | 13.4 | 6 | -M6 |
| VPMB20K[5]-4B[9] | 2.5 | 14.9 | 7 | ||||
| VPMB20K[5]-6B[9] | 4 | ||||||
| VPMB30K[5]-3B[9] | 30 | 2 | 33.2 | 12 | 13.4 | 6 | |
| VPMB30K[5]-4B[9] | 2.5 | 14.9 | 7 | ||||
| VPMB30K[5]-6B[9] | 4 | ||||||
| VPMB40K[5]-3B[9] | 40 | 2 | 37.2 | 16 | 13.4 | 6 | |
| VPMB40K[5]-4B[9] | 2.5 | 14.9 | 7 | ||||
| VPMB40K[5]-6B[9] | 4 | ||||||
| VPMB50K[5]-3B[9] | 50 | 2 | 38.2 | 17 | 13.4 | 6 | |
| VPMB50K[5]-4B[9] | 2.5 | 14.9 | 7 | ||||
| VPMB50K[5]-6B[9] | 4 |
Units: mm
*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[9]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material NH and NE are not suitable for use under ozone environment.
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
12.90 € ( 15.35 € ) | 11 working days |
12.90 € ( 15.35 € ) | 11 working days |
15.22 € ( 18.11 € ) | 11 working days |
15.22 € ( 18.11 € ) | 11 working days |
15.69 € ( 18.67 € ) | 11 working days |
15.69 € ( 18.67 € ) | 11 working days |
More Information
Basic information
Optimal for conveying oily workpieces such as pressed parts. * CAD data of this series is under modification. This will be available as soon as modifications are complete.
