Vacuum Pad. for Thin Objects, One-Touch Fitting Type for VPB
[Features]
· The adsorption is improved and redundant adhesion is mitigated by thinning the lip and improving the adhesion to the work.
· A wide range of pad sizes, pad materials, and holder shapes are available.
· Downsizes holders (A, B and E types) for existing vacuum pads, making it possible to save space.
· As is conventionally done, you can change the pad section without removing the holder from the equipment. · It is also compatible with the optional fall prevention valve and pad direct attachment type filter.
· Pad holders have been added for applications requiring "copper based metal not used" and "reduce ozone concentrations."
· Copper-based metal is not used for metal parts. HNBR is used for sealing rubber material.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

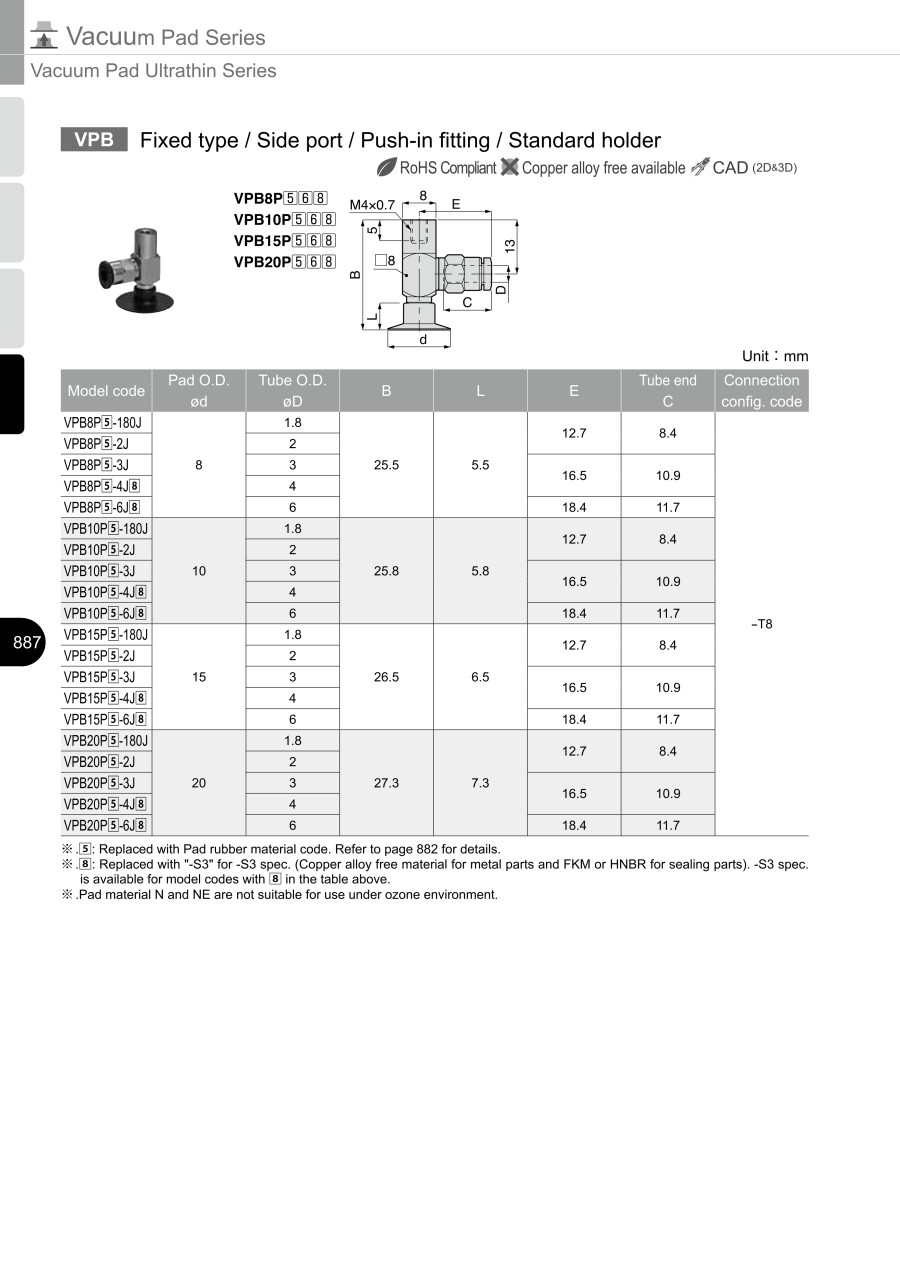

Dimensions
Standard table
| Model code | Pad O.D. ød | Tube O.D. øD | B | L | E | Tube end C | Connection config. code |
|---|---|---|---|---|---|---|---|
| VPB8P[5]-4J[8] | 8 | 4 | 25.5 | 5.5 | 16.5 | 10.9 | -T8 |
| VPB10P[5]-4J[8] | 10 | 25.8 | 5.8 | ||||
| VPB15P[5]-4J[8] | 15 | 26.5 | 6.5 | ||||
| VPB20P[5]-4J[8] | 20 | 27.3 | 7.3 |
Units: mm
*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[8]: Replaced with "-S3" for -S3 spec. (Copper alloy free material for metal parts and FKM or HNBR for sealing parts).
*Pad material N and NE are not suitable for use under ozone environment.
Part Number
|
|---|
| VPB8PFS-4J |
| VPB8PN-4J |
| VPB10PFS-4J |
| VPB10PN-4J |
| VPB15PFS-4J |
| VPB15PN-4J |
| VPB20PFS-4J |
| VPB20PN-4J |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Rubber Group Material | Color | Outer Diameter D (φ) | Height L1 (mm) | Full length B (mm) | |
|---|---|---|---|---|---|---|---|---|---|
21.35 € | 1 | 10 Days | Fluorosilicone rubber | Salmon Pink | 8 | 5.5 | 25.5 | ||
12.82 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Black | 8 | 5.5 | 25.5 | ||
21.35 € | 1 | 10 Days | Fluorosilicone rubber | Salmon Pink | 10 | 5.8 | 25.8 | ||
12.82 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Black | 10 | 5.8 | 25.8 | ||
23.36 € | 1 | 10 Days | Fluorosilicone rubber | Salmon Pink | 15 | 6.5 | 26.5 | ||
13.29 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Black | 15 | 6.5 | 26.5 | ||
23.36 € | 1 | 10 Days | Fluorosilicone rubber | Salmon Pink | 20 | 7.3 | 27.3 | ||
13.29 € | 1 | 10 Days | [Nitrile Rubber] Nitrile Rubber | Black | 20 | 7.3 | 27.3 |
Loading...
Basic information
| Pad type | Standard / Holder Set | Pad Type | For Thin Object | Mounting Method | Recessed Type |
|---|---|---|---|---|---|
| Material | Rubber-Based | Usage Environment | Standard | Mounting Bracket | Fixed Type |
| Vacuum Outlet Direction | Horizontal | Mount Connection Screw | M4 × 0.7 | Vacuum Outlet Tube Outer Diameter(φ) | 4 |
| Metal parts material | Standard Specifications |
Configure
Basic Attributes
-
Rubber Group Material
- Nitrile Rubber
- Fluorosilicone rubber
- Nitrile Rubber
-
Color
- Black
- Salmon Pink
-
Outer Diameter D(φ)
-
Height L1(mm)
-
Full length B(mm)
-
Type
- VPB
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 10 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
